MU10-250DMK Equivalent & Substitute Parts

Part Overview

The MU10-250DMK is a 0.250" (6.35mm) Quick Connect Male crimp connector manufactured by 3M under the Scotchlok™ series. This non-insulated terminal is designed for 10-12 AWG wire applications and features a butted seam construction with tin-plated copper contacts. The component is actively produced and RoHS compliant, making it suitable for applications requiring reliable quick-connect terminations in electrical assemblies.

Substitute parts become necessary when the primary manufacturer's inventory is unavailable, when supply chain optimization is required, or when design flexibility permits equivalent alternatives that meet identical electrical and mechanical specifications.

Substiute Parts

MU10-250DMK

3MIn Stock: 847MU10-250DMK Datasheet

Current PartRFQ

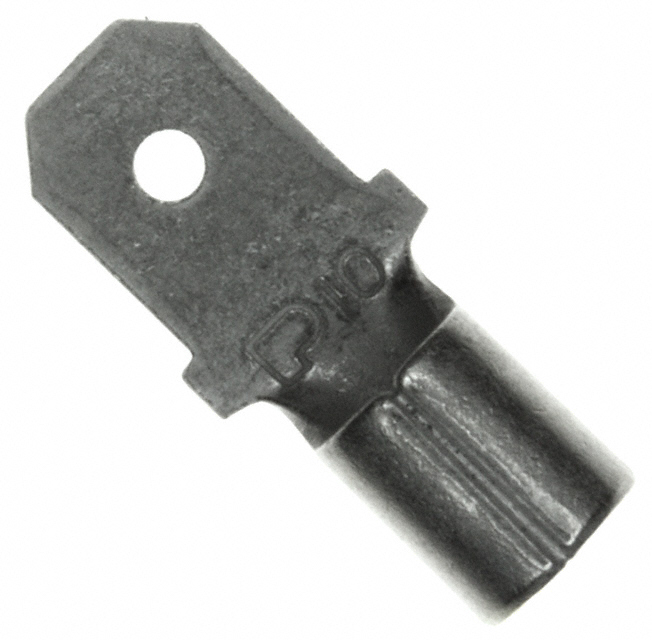

D10-250M-D

Panduit CorpIn Stock: 1528D10-250M-D Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MU10-250DMK is determined by strict equivalence across the following critical parameters:

• Tab Width: 0.250" (6.35mm) — must match exactly for mechanical fit
• Tab Thickness: 0.032" (0.81mm) — must match exactly for electrical contact integrity
• Wire Gauge: 10-12 AWG — must match exactly for termination compatibility
• Gender: Male — must match exactly for mating interface
• Termination Type: Crimp — must match exactly for assembly process compatibility
• Insulation: Non-Insulated — must match exactly for application requirements
• Mounting Type: Free Hanging (In-Line) — must match exactly for installation method
• Contact Material: Copper — must match exactly for electrical performance
• Terminal Type: Standard — must match exactly for functional classification

The D10-250M-D from Panduit Corp meets all critical substitution criteria and is classified as a manufacturer-recommended equivalent.

Parameter Comparison

Engineering Selection Recommendations

Both the MU10-250DMK and D10-250M-D are active production components with current regulatory compliance. The MU10-250DMK carries RoHS compliance certification, while the D10-250M-D carries ROHS3 compliance certification. Both components are REACH Unaffected and classified under ECCN EAR99.

The D10-250M-D is suitable as a direct substitute where the following conditions are met:

• Mechanical fit requirements are satisfied by equivalent tab dimensions (0.250" width, 0.032" thickness)
• Electrical performance requirements are compatible with nickel contact finish (versus tin finish on the primary part)
• Assembly processes accommodate serrated termination features (versus butted seam on the primary part)
• Overall length variation of 0.030" (0.76mm) is acceptable within application tolerances

Selection between these components should be based on specific application requirements regarding contact finish performance, termination feature compatibility, and dimensional constraints.

Frequently Asked Questions (FAQ)

Q: Can the D10-250M-D replace the MU10-250DMK in all applications?

A: The D10-250M-D meets all critical electrical and mechanical substitution criteria. However, applications with strict requirements for contact finish type (tin versus nickel) or termination feature design (butted seam versus serrated) should be evaluated against specific performance specifications.

Q: What is the significance of the contact finish difference (tin versus nickel)?

A: Contact finish affects corrosion resistance, electrical conductivity, and long-term reliability in specific environmental conditions. Tin provides different performance characteristics than nickel. Application requirements should determine acceptable finish types.

Q: Does the 0.030" overall length difference affect compatibility?

A: The overall length variation between parts (0.750" versus 0.720") is minor. Compatibility depends on specific application space constraints and mating interface requirements. Applications with tight dimensional tolerances should evaluate this variation.

Q: Are both parts suitable for the same wire gauge range?

A: Yes. Both components are rated for 10-12 AWG wire termination and use identical tab dimensions for crimp termination.

Q: What packaging options are available?

A: Both the MU10-250DMK and D10-250M-D are supplied in bulk packaging format.

Q: Are there compliance differences between the two parts?

A: Both components are RoHS compliant (MU10-250DMK: RoHS Compliant; D10-250M-D: ROHS3 Compliant) and REACH Unaffected. Both are classified under ECCN EAR99 and HTSUS 8536.90.4000.
