MOC3041M Equivalent & Substitute Parts

Part Overview

The MOC3041M is an optoisolator with triac output manufactured by onsemi, designed for applications requiring galvanic isolation in AC switching circuits. This component features a 4170Vrms isolation voltage rating, zero-crossing detection circuit, and 6-DIP through-hole packaging. The part is currently in active production status with substantial inventory availability (69055 pcs). Equivalent and substitute parts are identified to support procurement flexibility, design redundancy, and supply chain continuity when the primary part becomes unavailable or when design specifications permit higher performance alternatives.

Substiute Parts

MOC3041M

onsemiIn Stock: 69164MOC3041M Datasheet

Current PartRFQ

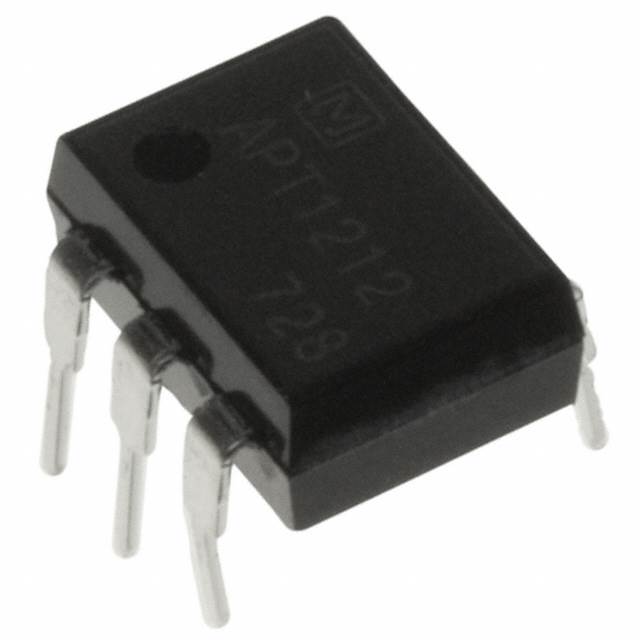

APT1212

Panasonic Electric WorksIn Stock: 1465APT1212 Datasheet

SimilarRFQ

VO3062

Vishay Semiconductor Opto DivisionIn Stock: 3398VO3062 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MOC3041M is determined by the following mandatory parameters:

• Output Type: Must be Triac output
• Package / Case: Must be 6-DIP (0.300", 7.62mm) for mechanical and electrical compatibility
• Mounting Type: Must be Through Hole
• Number of Channels: Must be 1 channel
• Zero Crossing Circuit: Must include zero-crossing detection
• Voltage - Isolation: Minimum 4170Vrms (equal or higher acceptable)
• RoHS Status: Must be ROHS3 Compliant
• Product Status: Must be Active

The identified substitutes APT1212 and VO3062 meet all mandatory substitution criteria. Both parts exceed the isolation voltage requirement and maintain identical package geometry and functional architecture.

Parameter Comparison

Engineering Selection Recommendations

All three parts maintain active production status and ROHS3 compliance, supporting long-term design viability. Selection between MOC3041M, APT1212, and VO3062 depends on specific application requirements and regulatory certifications:

MOC3041M (onsemi): Primary choice where UL certification is required. Suitable for applications with operating temperatures up to 85°C and isolation voltage requirements of 4170Vrms or lower.

APT1212 (Panasonic): Appropriate for applications requiring cUR or VDE certification. Offers extended operating temperature range to 100°C and higher isolation voltage (5000Vrms). Note that Static dV/dt rating (500V/µs) is lower than MOC3041M; verify compatibility with circuit switching characteristics.

VO3062 (Vishay): Suitable for applications requiring cUR or UR certification. Provides highest isolation voltage (5300Vrms), extended temperature range (-55°C to 100°C), and highest Static dV/dt (1.5kV/µs). Moisture Sensitivity Level is 1 (Unlimited), indicating no moisture sensitivity constraints.

Frequently Asked Questions (FAQ)

Q: Can APT1212 or VO3062 be used as direct replacements for MOC3041M in existing designs?

A: Yes, both parts are mechanically and functionally compatible as direct substitutes. All three components share identical 6-DIP package geometry, single-channel triac output architecture, and zero-crossing detection functionality. Verify that your application certifications align with the approval agencies listed for each part.

Q: What is the significance of the Static dV/dt parameter in substitution?

A: Static dV/dt defines the maximum rate of voltage change the triac output can withstand without false triggering. MOC3041M specifies 1kV/µs minimum, APT1212 specifies 500V/µs, and VO3062 specifies 1.5kV/µs. Applications with fast-switching AC loads should verify that the substitute part's dV/dt rating meets circuit requirements.

Q: Are there temperature range limitations when substituting parts?

A: MOC3041M operates from -40°C to 85°C. APT1212 and VO3062 both extend to 100°C. If your application operates above 85°C, MOC3041M is not suitable; use APT1212 or VO3062. If your application operates below -55°C, only VO3062 is rated for this range.

Q: What certifications should I verify for my application?

A: MOC3041M carries UL certification. APT1212 carries cUR and VDE certifications. VO3062 carries cUR and UR certifications. Select the part whose certification aligns with your product's regulatory requirements and target markets.

Q: Does the Current - LED Trigger (Ift) difference affect circuit design?

A: MOC3041M specifies 15mA maximum Ift, while APT1212 and VO3062 specify 10mA maximum. Lower Ift values indicate more sensitive LED triggering. If your design provides exactly 15mA drive current, verify that APT1212 or VO3062 will trigger reliably at this level before substitution.

Q: What is the Moisture Sensitivity Level (MSL) and why does VO3062 differ?

A: MSL indicates moisture absorption sensitivity during storage and handling. MOC3041M and APT1212 are listed as "Not Applicable," indicating no moisture sensitivity. VO3062 is rated MSL 1 (Unlimited), meaning it has no moisture sensitivity constraints and requires no special dry-pack storage.
