LCCXF1-38DH-X Equivalent & Substitute Parts

Part Overview

The LCCXF1-38DH-X is a terminal connector rectangular wire management component manufactured by Panduit Corp. This part is classified as obsolete and is no longer in active production. Due to its obsolete status, sourcing original inventory becomes increasingly difficult. The LCDX1-38D-X serves as the direct substitute, offering equivalent functionality within the terminal connector rectangular category while maintaining active product status and current manufacturing support.

Substiute Parts

LCCXF1-38DH-X

Panduit CorpIn Stock: 874LCCXF1-38DH-X Datasheet

Current PartRFQ

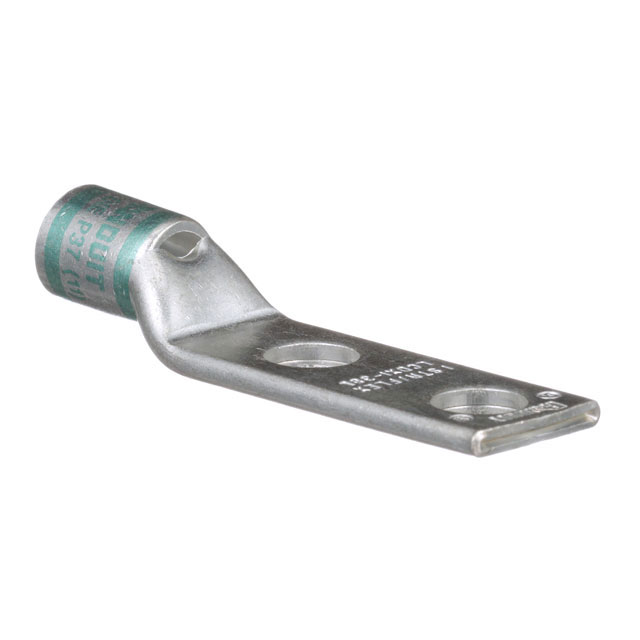

LCDX1-38D-X

Panduit CorpIn Stock: 1059LCDX1-38D-X Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the LCCXF1-38DH-X with the LCDX1-38D-X is based on the following criteria:

Functional Equivalence: Both components are terminal connectors in the rectangular category, designed for wire management applications.

Manufacturer Consistency: Both parts are manufactured by Panduit Corp, ensuring design philosophy and quality standards alignment.

Terminal Configuration: The LCDX1-38D-X maintains rectangular tongue terminal geometry with equivalent stud/tab sizing (3/8 Stud) and wire gauge compatibility (1 AWG).

Electrical Properties: Both components utilize copper contact material with electro-tin finish, providing equivalent electrical performance and corrosion resistance.

Mechanical Compatibility: The LCDX1-38D-X features two stud holes with 3/8 stud sizing, maintaining mechanical interchangeability for mounting applications.

Product Status Advantage: The LCDX1-38D-X holds active product status with current manufacturing support, ensuring long-term availability and supply chain reliability.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection: The LCDX1-38D-X is the appropriate substitute for the obsolete LCCXF1-38DH-X. This selection is based on:

Product Status: The LCDX1-38D-X maintains active product status with current manufacturing support, eliminating supply chain discontinuity risks associated with obsolete components.

Regulatory Compliance: The LCDX1-38D-X is ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements for terminal connector applications.

Inventory Availability: The LCDX1-38D-X has 1026 pieces in new original stock, providing immediate availability and supply security.

Series Designation: The LCDX1-38D-X belongs to the Pan-Lug™ series, representing Panduit's current generation terminal connector technology.

Packaging: The LCDX1-38D-X is supplied in bulk packaging, suitable for production and assembly environments.

Frequently Asked Questions (FAQ)

Q: Why is the LCCXF1-38DH-X classified as obsolete?

A: The LCCXF1-38DH-X has reached end-of-life status in Panduit's product portfolio. The LCDX1-38D-X represents the current active equivalent within the terminal connector rectangular category.

Q: Are the LCCXF1-38DH-X and LCDX1-38D-X mechanically interchangeable?

A: Both components are terminal connectors with rectangular tongue configuration and 3/8 stud sizing. Mechanical interchangeability is maintained for mounting applications requiring these specifications.

Q: What is the wire gauge compatibility for the LCDX1-38D-X?

A: The LCDX1-38D-X is rated for 1 AWG wire gauge with crimp barrel termination.

Q: Does the LCDX1-38D-X meet current environmental standards?

A: Yes. The LCDX1-38D-X is ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements.

Q: What is the stud size for the LCDX1-38D-X?

A: The LCDX1-38D-X features a 3/8 stud with two stud holes for mounting applications.

Q: What contact material and finish are used in the LCDX1-38D-X?

A: The LCDX1-38D-X uses copper contact material with electro-tin finish, providing corrosion resistance and electrical conductivity.

Q: Is the LCDX1-38D-X insulated?

A: No. The LCDX1-38D-X is non-insulated, suitable for applications where insulation is not required or is provided separately.

Q: What packaging format is available for the LCDX1-38D-X?

A: The LCDX1-38D-X is supplied in bulk packaging, appropriate for production assembly and high-volume applications.
