HLE-103-02-G-DV-BE-TR Equivalent & Substitute Parts

Part Overview

The HLE-103-02-G-DV-BE-TR is a 6-position rectangular receptacle connector manufactured by Samtec Inc., designed for board-to-board applications with bottom entry configuration and surface mount termination. This connector features gold-plated contacts rated for 4.1A per contact at 400VAC, operating across -55°C to 125°C. The part maintains Active product status with ROHS3 compliance and MSL 1 rating. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and design continuity across manufacturing batches.

Substiute Parts

HLE-103-02-G-DV-BE-TR

Samtec Inc.In Stock: 1091HLE-103-02-G-DV-BE-TR Datasheet

Current PartRFQ

HLE-103-02-G-DV-BE-K-TR

Samtec Inc.In Stock: 1454HLE-103-02-G-DV-BE-K-TR Datasheet

SimilarRFQ

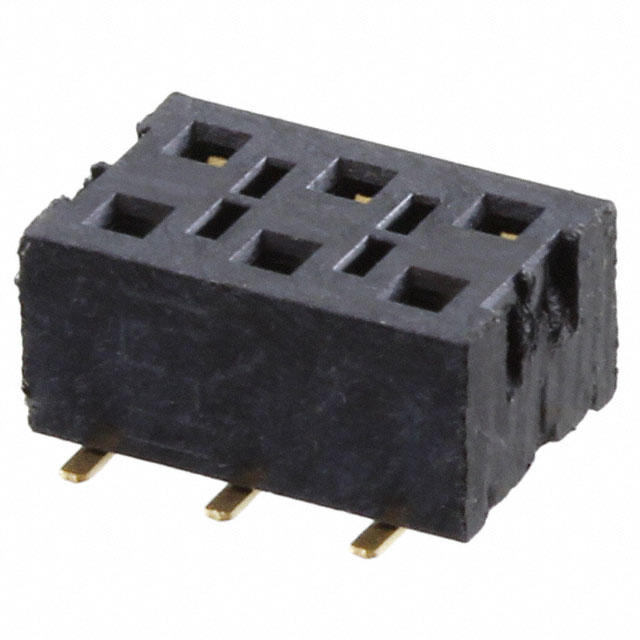

HLE-103-02-G-DV-BE-P-TR

Samtec Inc.In Stock: 1530HLE-103-02-G-DV-BE-P-TR Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the HLE-103-02-G-DV-BE-TR are determined by equivalence across the following critical parameters:

• Series designation (HLE)
• Connector type and configuration (Receptacle, Bottom Entry, Board to Board)
• Position count and arrangement (6 positions, 2 rows)
• Mating pitch and row spacing (0.100" / 2.54mm)
• Contact specifications (Female Socket, Gold finish, Beryllium Copper material)
• Electrical ratings (4.1A per contact, 400VAC)
• Operating temperature range (-55°C ~ 125°C)
• Mounting method (Surface Mount, Solder termination)
• Compliance certifications (ROHS3, MSL 1)
• Packaging format (Tape & Reel)

The identified substitutes maintain identical electrical, mechanical, and environmental specifications. Variations in fastening features (Pick and Place capability) do not affect core connector functionality or interchangeability.

Parameter Comparison

Engineering Selection Recommendations

All three parts—HLE-103-02-G-DV-BE-TR, HLE-103-02-G-DV-BE-K-TR, and HLE-103-02-G-DV-BE-P-TR—maintain Active product status with identical electrical, mechanical, and environmental specifications. Each part carries ROHS3 compliance and EAR99 export classification. Selection between these parts is based on inventory availability and procurement requirements rather than technical performance differences. The substitute parts HLE-103-02-G-DV-BE-K-TR and HLE-103-02-G-DV-BE-P-TR include Pick and Place features, which provide manufacturing process advantages without affecting connector functionality or interchangeability in the application circuit.
