GDS02S Equivalent & Substitute Parts

Part Overview

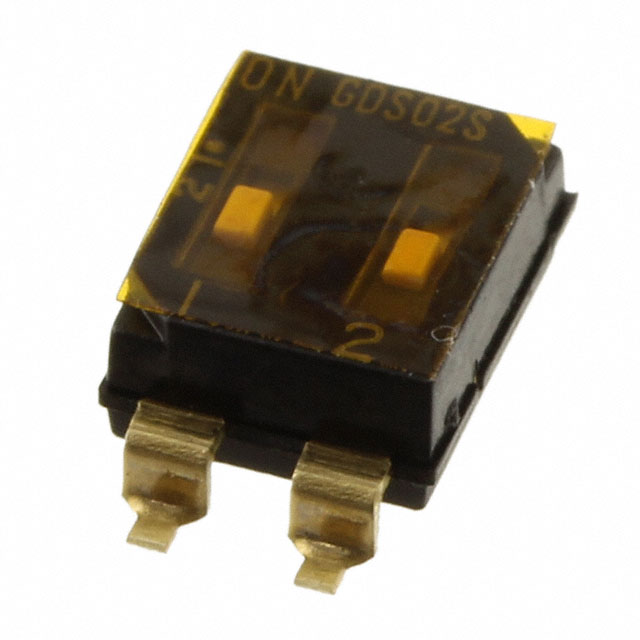

The GDS02S is a surface mount DIP slide switch manufactured by TE Connectivity ALCOSWITCH Switches. This SPST (Single Pole Single Throw) component is rated for 25mA at 24VDC and features a standard slide actuator with flush, recessed positioning. The GDS02S is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing design support, maintenance, and production continuity. Substitute parts must maintain electrical and mechanical compatibility while meeting current manufacturing and compliance standards.

Key Parameters

Parameter	Value
Circuit Configuration	SPST (Single Pole Single Throw)
Number of Positions	2
Current Rating	25mA (0.025A)
Voltage Rating	24VDC
Actuator Type	Slide (Standard)
Actuator Level	Flush, Recessed
Mounting Type	Surface Mount
Termination Style	Gull Wing
Pitch	0.100" (2.54mm), Full
Height Above Board	0.114" (2.90mm)
Contact Material	Copper Alloy
Contact Finish	Gold
Body Material	Polyphenylene Sulfide (PPS)
Operating Temperature Range	-30°C to 85°C
Mechanical Life	1,000 Cycles
Electrical Life	1,000 Cycles
Washable	Yes
Features	Tape Seal

Substitute Part Grouping Explanation

Substitution of the GDS02S is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications in the following categories:

Electrical Parameters:

Circuit configuration (SPST)
Number of positions (2)
Current rating (25mA)
Voltage rating (24VDC)
Contact material and finish (Copper Alloy, Gold)

Mechanical Parameters:

Actuator type and level (Slide Standard, Flush Recessed)
Mounting type (Surface Mount)
Termination style (Gull Wing)
Pitch (0.100" / 2.54mm)
Height above board (0.114" / 2.90mm)
Body material (Polyphenylene Sulfide)
Length (0.194" / 4.93mm)

Environmental & Operational Parameters:

Operating temperature range (-30°C to 85°C)
Mechanical life (1,000 Cycles)
Electrical life (1,000 Cycles)
Washable capability (Yes)
Tape Seal feature

The substitute part 1825006-3 meets all these criteria and is therefore a direct functional equivalent.

Parameter Comparison

Parameter	GDS02S (Main Part)	1825006-3 (Substitute)	Match Status
Manufacturer	TE Connectivity ALCOSWITCH Switches	TE Connectivity ALCOSWITCH Switches	Identical
Circuit Configuration	SPST	SPST	Identical
Number of Positions	2	2	Identical
Current Rating (Amps)	25mA	25mA (0.025A)	Identical
Voltage Rating	24VDC	24VDC	Identical
Actuator Type	Slide (Standard)	Slide (Standard)	Identical
Actuator Level	Flush, Recessed	Flush, Recessed	Identical
Contact Material	Copper Alloy	Copper Alloy	Identical
Contact Finish	Gold	Gold	Identical
Height Above Board	0.114" (2.90mm)	0.114" (2.90mm)	Identical
Mounting Type	Surface Mount	Surface Mount	Identical
Termination Style	Gull Wing	Gull Wing	Identical
Pitch	0.100" (2.54mm), Full	0.100" (2.54mm), Full	Identical
Body Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)	Identical
Length	0.194" (4.93mm)	0.194" (4.93mm)	Identical
Operating Temperature	-30°C to 85°C	-30°C to 85°C	Identical
Mechanical Life	1,000 Cycles	1,000 Cycles	Identical
Electrical Life	1,000 Cycles	1,000 Cycles	Identical
Washable	Yes	Yes	Identical
Features	Tape Seal	Tape Seal	Identical
Product Status	Obsolete	Active	Substitute is current
RoHS Status	RoHS non-compliant	ROHS3 Compliant	Substitute is compliant
Packaging	Not specified	Tube	Substitute specified

Engineering Selection Recommendations

The part 1825006-3 is the direct equivalent substitute for the obsolete GDS02S. Selection of this substitute is based on the following engineering criteria:

Functional Equivalence: All electrical and mechanical parameters are identical between the GDS02S and 1825006-3. Both components are SPST DIP slide switches with identical current, voltage, actuator, mounting, and dimensional specifications. Direct pin-for-pin and functional replacement is supported.

Product Status: The GDS02S is classified as obsolete, while 1825006-3 is active and currently manufactured. Use of the active substitute ensures ongoing availability and manufacturing support.

Compliance Status: The 1825006-3 is ROHS3 compliant, whereas the GDS02S is RoHS non-compliant. Selection of the substitute aligns designs with current regulatory requirements for restricted substances.

Packaging: The 1825006-3 is supplied in Tube packaging, providing standard handling and storage compatibility with modern assembly processes.

Manufacturer Continuity: Both parts are manufactured by TE Connectivity ALCOSWITCH Switches, ensuring consistent quality standards and design heritage.

Frequently Asked Questions (FAQ)

Q: Can 1825006-3 be used as a direct replacement for GDS02S in existing designs?

A: Yes. The 1825006-3 is electrically and mechanically identical to the GDS02S across all specified parameters. Direct substitution is supported without design modification.

Q: What is the primary reason to transition from GDS02S to 1825006-3?

A: The GDS02S is obsolete. The 1825006-3 is the active equivalent part from the same manufacturer, ensuring continued availability and manufacturing support.

Q: Are there compliance differences between these parts?

A: Yes. The GDS02S is RoHS non-compliant, while 1825006-3 is ROHS3 compliant. New designs and production runs should use 1825006-3 to meet current regulatory requirements.

Q: Do the parts have identical electrical ratings?

A: Yes. Both parts are rated for 25mA at 24VDC with SPST configuration and identical contact materials and finishes.

Q: Are the mechanical dimensions identical?

A: Yes. Both parts have identical height above board (0.114" / 2.90mm), length (0.194" / 4.93mm), pitch (0.100" / 2.54mm), and all other dimensional specifications.

Q: What is the packaging difference?

A: The GDS02S packaging is not specified in available data. The 1825006-3 is supplied in Tube packaging, which is standard for surface mount DIP switches.

Q: Are the operating temperature ranges the same?

A: Yes. Both parts operate across the identical temperature range of -30°C to 85°C.

Q: Do both parts support the same mechanical and electrical life cycles?

A: Yes. Both parts are rated for 1,000 mechanical cycles and 1,000 electrical cycles.

Q: Is the actuator type identical?

A: Yes. Both parts feature a standard slide actuator with flush, recessed positioning.

Q: Can these parts be used interchangeably in PCB assembly?

A: Yes. Both parts use identical surface mount gull wing termination with 0.100" (2.54mm) pitch, supporting direct PCB footprint compatibility.
