FTM-108-02-L-DV Equivalent & Substitute Parts

Part Overview

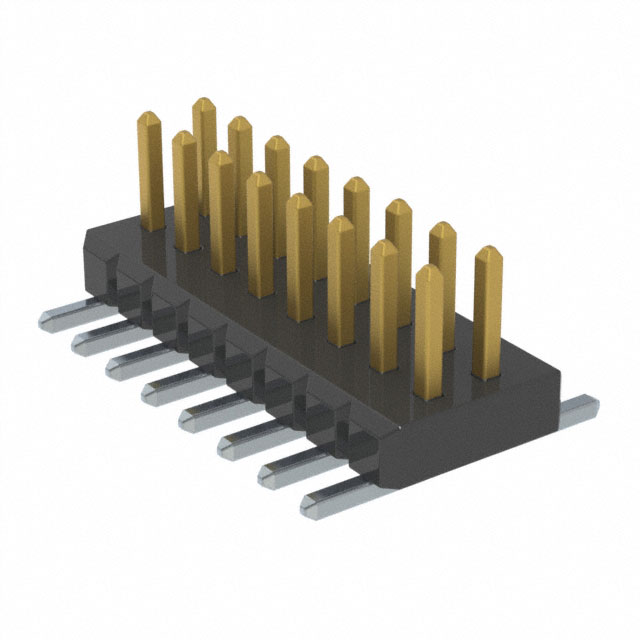

The FTM-108-02-L-DV is a rectangular connector header manufactured by Samtec Inc., designed for surface mount board-to-board applications. This 16-position connector operates at 1.00mm pitch with male pin contacts and is rated for 2.8A per contact across an operating temperature range of -55°C to 125°C. The part is currently active in production and maintains full RoHS3 compliance with MSL 1 rating, making it suitable for high-reliability applications requiring extended temperature performance and unlimited moisture sensitivity tolerance.

Substitute parts are identified to provide alternative sourcing options where supply constraints, lead time requirements, or design flexibility necessitate component alternatives that maintain functional compatibility within specified electrical and mechanical parameters.

Substiute Parts

FTM-108-02-L-DV

Samtec Inc.In Stock: 854FTM-108-02-L-DV Datasheet

Current PartRFQ

BC050-16A-K0-0200-0160-0480-LB

GCTIn Stock: 4088BC050-16A-K0-0200-0160-0480-LB Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution compatibility for the FTM-108-02-L-DV is determined by alignment of the following critical parameters:

• Pitch - Mating: 0.039" (1.00mm) — ensures PCB footprint compatibility
• Number of Positions: 16 — maintains signal count and connector density
• Number of Rows: 2 — preserves physical layout and spacing
• Row Spacing - Mating: 0.039" (1.00mm) — guarantees mechanical fit with mating connectors
• Mounting Type: Surface Mount — confirms assembly process compatibility
• Contact Type: Male Pin — ensures proper mating interface
• Termination: Solder — maintains soldering process requirements
• Style: Board to Board — confirms application context

The identified substitute BC050-16A-K0-0200-0160-0480-LB from GCT meets these core substitution criteria. Both parts share identical pitch, position count, row configuration, and mounting methodology, enabling direct functional replacement within the specified mechanical and electrical envelope.

Parameter Comparison

Engineering Selection Recommendations

Both the FTM-108-02-L-DV and BC050-16A-K0-0200-0160-0480-LB maintain active product status and full RoHS3 compliance, qualifying both for production use. Selection between these parts should account for the following parameter differences:

The FTM-108-02-L-DV provides higher current capacity at 2.8A per contact and extended operating temperature range from -55°C to 125°C, making it suitable for high-power or extreme-temperature applications. The BC050-16A-K0-0200-0160-0480-LB operates within -40°C to 105°C with 1A per contact rating and includes explicit 250VAC/DC voltage specification, appropriate for standard industrial and commercial environments.

Contact material differs between phosphor bronze (FTM-108-02-L-DV) and copper alloy (BC050-16A-K0-0200-0160-0480-LB), with both materials providing adequate conductivity for the specified applications. Packaging format varies between tube and tape & reel, affecting procurement and assembly workflow considerations.

Frequently Asked Questions (FAQ)

Q: Can BC050-16A-K0-0200-0160-0480-LB directly replace FTM-108-02-L-DV on existing PCBs?

A: Yes, both connectors share identical pitch (1.00mm), position count (16), row configuration (2 rows), and row spacing (1.00mm), ensuring mechanical and electrical compatibility at the PCB footprint level. Verify application current requirements do not exceed 1A per contact for the GCT substitute.

Q: What are the key differences between these two connectors?

A: Primary differences include current rating (2.8A vs. 1A per contact), operating temperature range (-55°C to 125°C vs. -40°C to 105°C), contact material (phosphor bronze vs. copper alloy), and packaging format (tube vs. tape & reel). Both maintain identical mating pitch and position configuration.

Q: Are both parts RoHS3 compliant?

A: Yes, both FTM-108-02-L-DV and BC050-16A-K0-0200-0160-0480-LB are ROHS3 compliant with MSL 1 rating, suitable for applications requiring environmental and regulatory compliance.

Q: Which part should be selected for high-temperature applications?

A: The FTM-108-02-L-DV supports operating temperatures from -55°C to 125°C, making it the appropriate choice for applications requiring extended temperature performance beyond the BC050-16A-K0-0200-0160-0480-LB range of -40°C to 105°C.

Q: Does packaging format affect connector performance?

A: Packaging format (tube vs. tape & reel) affects procurement logistics and assembly automation compatibility but does not alter electrical or mechanical connector performance. Selection should align with manufacturing process requirements and supply chain preferences.
