FTM-106-02-F-DV Equivalent & Substitute Parts

Part Overview

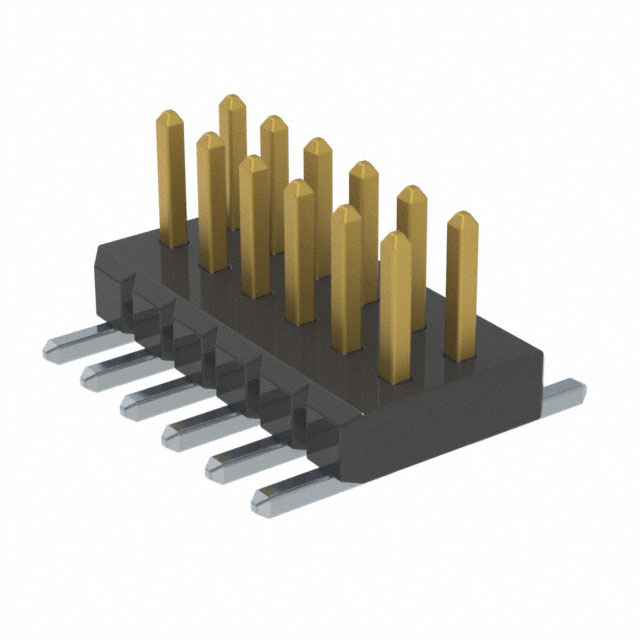

The FTM-106-02-F-DV is a rectangular connector header manufactured by Samtec Inc., designed for surface mount applications with 12 positions at 1.00mm pitch. This cuttable header connector is actively produced and widely used in board-to-board interconnect applications. Identifying equivalent and substitute parts is necessary to ensure design flexibility, manage supply chain continuity, and accommodate alternative sourcing strategies while maintaining electrical and mechanical compatibility.

Substiute Parts

FTM-106-02-F-DV

Samtec Inc.In Stock: 1007FTM-106-02-F-DV Datasheet

Current PartRFQ

BC050-12A-K0-0200-0160-0480-LB

GCTIn Stock: 3807BC050-12A-K0-0200-0160-0480-LB Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the FTM-106-02-F-DV is determined by the following critical parameters:

• Pitch - Mating: 0.039" (1.00mm) — must match exactly for PCB footprint compatibility
• Number of Positions: 12 — electrical interface requirement
• Number of Rows: 2 — mechanical and electrical layout requirement
• Mounting Type: Surface Mount — assembly process compatibility
• Contact Type: Male Pin — mating interface specification
• Insulation Material: Liquid Crystal Polymer (LCP) — thermal and mechanical performance
• Termination: Solder — assembly method compatibility
• Contact Finish - Mating: Gold — electrical contact reliability

The BC050-12A-K0-0200-0160-0480-LB from GCT meets these core substitution criteria, sharing identical pitch, position count, row configuration, mounting type, contact type, insulation material, termination method, and mating contact finish.

Parameter Comparison

Engineering Selection Recommendations

Both the FTM-106-02-F-DV and BC050-12A-K0-0200-0160-0480-LB are active products with ROHS3 compliance. Selection between these parts depends on application-specific requirements:

The FTM-106-02-F-DV supports an extended operating temperature range of -55°C to 125°C and provides a higher current rating of 2.8A per contact, making it suitable for applications requiring broader thermal performance or higher current delivery per pin.

The BC050-12A-K0-0200-0160-0480-LB operates within -40°C to 105°C and carries a 1A per contact rating. This part is appropriate for applications within this temperature and current envelope and is available in Tape & Reel packaging, which may offer supply chain advantages.

Both parts share identical pitch, position count, row spacing, mounting type, and contact finish specifications, ensuring PCB footprint and mating interface compatibility.

Frequently Asked Questions (FAQ)

Q: Can BC050-12A-K0-0200-0160-0480-LB be used as a direct replacement for FTM-106-02-F-DV?

A: Yes, for applications operating within -40°C to 105°C and requiring maximum 1A per contact. Both parts share identical pitch (1.00mm), position count (12), row configuration (2 rows), mounting type (surface mount), and mating contact finish (gold). PCB footprints are compatible.

Q: What are the key differences between these parts?

A: The FTM-106-02-F-DV offers an extended operating temperature range (-55°C to 125°C versus -40°C to 105°C) and higher current rating (2.8A per contact versus 1A per contact). The BC050-12A-K0-0200-0160-0480-LB is supplied in Tape & Reel packaging, while the FTM-106-02-F-DV is supplied in Tube packaging.

Q: Are both parts RoHS compliant?

A: Yes, both the FTM-106-02-F-DV and BC050-12A-K0-0200-0160-0480-LB are ROHS3 compliant.

Q: What packaging formats are available?

A: The FTM-106-02-F-DV is supplied in Tube packaging. The BC050-12A-K0-0200-0160-0480-LB is supplied in Tape & Reel (TR) packaging.

Q: Do these connectors have the same mating interface?

A: Yes, both parts feature male pin contacts with identical 1.00mm pitch and 2-row configuration, ensuring mechanical and electrical compatibility with corresponding receptacle connectors.
