FN520-12-29 Equivalent & Substitute Parts

Part Overview

The FN520-12-29 is a three-phase delta EMC/EMI line filter rated for 12 A with chassis mount configuration and terminal block termination. This component is classified as obsolete, making identification of suitable substitute parts essential for system redesign and procurement planning. The filter operates across a temperature range of -25°C to 100°C and is designed for regenerative motor drive applications.

Substiute Parts

FN520-12-29

Schaffner EMC Inc.In Stock: 1170FN520-12-29 Datasheet

Current PartRFQ

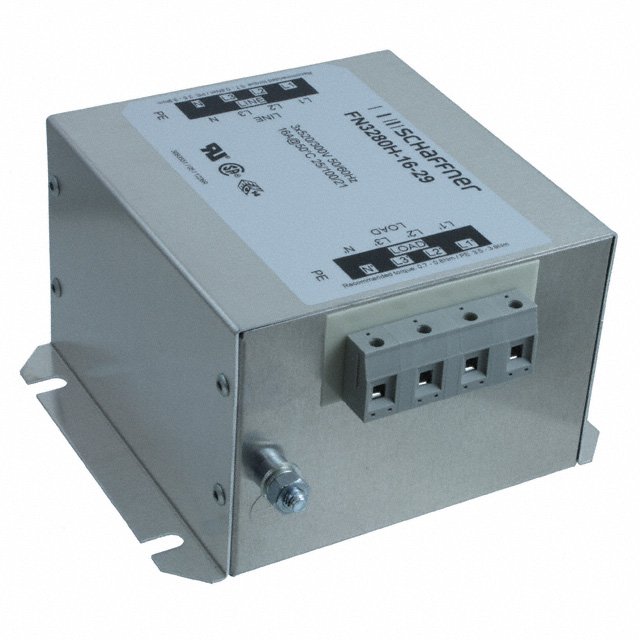

FN3280H-16-29

Schaffner EMC Inc.In Stock: 1157FN3280H-16-29 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the FN520-12-29 is based on the following critical parameters:

Mandatory Compatibility Criteria:

• Mounting type: Chassis mount
• Termination style: Terminal block
• Operating temperature range: -25°C ~ 100°C
• Three-phase configuration capability
• Current rating: Equal to or greater than 12 A
• Voltage ratings: Phase-to-phase and phase-to-ground ratings must meet or exceed the original specifications

Substitution Logic: The FN3280H-16-29 qualifies as a substitute based on higher current capacity (16 A vs. 12 A), compatible mounting and termination methods, matching temperature range, and superior voltage ratings. The transition from delta to wye configuration and single-stage to two-stage design represents an upgrade path suitable for system redesign scenarios where the obsolete FN520-12-29 requires replacement.

Parameter Comparison

Engineering Selection Recommendations

The FN3280H-16-29 is the designated substitute for the obsolete FN520-12-29. Selection is justified by:

• Product Status: FN3280H-16-29 maintains active status with ongoing manufacturer support, whereas FN520-12-29 is obsolete with no future availability.
• Compliance Certifications: FN3280H-16-29 carries CSA, ENEC, and UR approvals, providing broader regulatory coverage than the original part.
• RoHS Compliance: FN3280H-16-29 meets ROHS3 standards, representing current environmental compliance requirements.
• Electrical Ratings: The substitute exceeds original specifications in current capacity (16 A vs. 12 A) and voltage ratings, ensuring compatibility with existing system requirements.
• Physical Compatibility: Identical mounting and termination methods enable direct integration into existing chassis designs.

Frequently Asked Questions (FAQ)

Q: Can FN3280H-16-29 directly replace FN520-12-29 in existing designs?

A: Yes. Both components share identical mounting type (chassis mount) and termination style (terminal block). The substitute provides higher current capacity and voltage ratings, making it suitable for direct substitution in system redesigns.

Q: What is the difference between delta and wye filter configurations?

A: Delta configuration connects the filter between phase conductors, while wye configuration connects between phase and neutral/ground. The FN3280H-16-29 wye configuration is compatible with systems originally designed for delta operation when proper electrical integration is maintained.

Q: Does the two-stage design of FN3280H-16-29 affect compatibility?

A: No. The two-stage configuration provides enhanced filtering performance compared to the single-stage FN520-12-29. This represents an improvement in EMC/EMI suppression capability without affecting mechanical or electrical compatibility.

Q: Are there packaging differences between these parts?

A: FN520-12-29 packaging is unspecified in available documentation. FN3280H-16-29 is supplied in tray packaging. Verify packaging requirements for your procurement and assembly processes.

Q: What certifications apply to FN3280H-16-29?

A: FN3280H-16-29 holds CSA, ENEC, and UR approvals. These certifications cover North American (CSA), European (ENEC), and Recognized (UR) regulatory requirements, providing comprehensive compliance coverage.

Q: Is the operating temperature range identical?

A: Yes. Both FN520-12-29 and FN3280H-16-29 operate across -25°C to 100°C, ensuring thermal compatibility in equivalent application environments.
