ESLM10200 Equivalent & Substitute Parts

Part Overview

The ESLM10200 is a 10-position wire-to-board terminal block manufactured by Amphenol PCD, designed for horizontal PCB mounting with side entry wire connections. This component operates at 300V with a 14.6A current rating and accommodates wire gauges from 14-30 AWG using screw-based rising cage clamp termination. The part is currently active in production with RoHS compliance and unlimited moisture sensitivity rating. Substitute parts are identified when equivalent electrical performance, mechanical compatibility, and board integration requirements can be met within the specified parameter tolerances.

Substiute Parts

ESLM10200

Amphenol PCDIn Stock: 815ESLM10200 Datasheet

Current PartRFQ

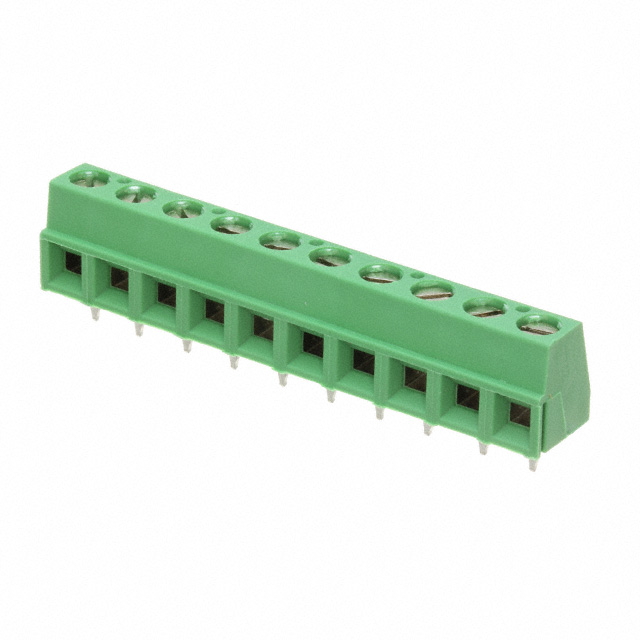

1-282837-0

TE Connectivity AMP ConnectorsIn Stock: 24211-282837-0 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The ESLM10200 and its identified substitute (1-282837-0) share critical electrical and mechanical parameters that enable direct substitution in terminal block applications. Both parts maintain identical position count (10), pitch spacing (5.08mm), voltage rating (300V), current rating (14.6A), mounting configuration (through-hole horizontal), and termination method (screw-based rising cage clamp). The housing material specification (Polyamide PA66/Nylon 6/6) and interlocking side-entry feature are consistent across both parts. Substitution is valid when the following parameters align: 10-position configuration, 5.08mm pitch, 300V/14.6A electrical ratings, through-hole mounting, screw termination with rising cage clamp, and side interlocking design. Both parts carry RoHS compliance and MSL-1 moisture sensitivity rating, supporting equivalent reliability in standard industrial applications.

Parameter Comparison

Engineering Selection Recommendations

Both the ESLM10200 and 1-282837-0 maintain active production status with full RoHS compliance and MSL-1 moisture sensitivity ratings, supporting use in standard industrial terminal block applications. Selection between these parts should account for the following provided specifications: the ESLM10200 accommodates wire gauges 14-30 AWG with a screw torque specification of 0.5 Nm, while the 1-282837-0 supports wire gauges 16-28 AWG with a higher screw torque specification of 0.68 Nm. The contact and clamp materials differ between manufacturers (copper alloy versus brass base materials), though both employ tin and nickel plating respectively. Applications requiring the full 14-30 AWG wire gauge range necessitate the ESLM10200. Applications where wire gauges remain within the 16-28 AWG range permit use of either part. Screw torque specifications must be observed during assembly to ensure proper clamping force and electrical contact integrity.

Frequently Asked Questions (FAQ)

Q: Can the 1-282837-0 substitute for the ESLM10200 in all applications?

A: Substitution is valid when the application wire gauge requirement falls within the 16-28 AWG range supported by the 1-282837-0. Applications requiring 14 AWG or 29-30 AWG wire connections must use the ESLM10200.

Q: What is the significance of the different screw torque specifications?

A: The ESLM10200 specifies 0.5 Nm (4.4 Lb-In) torque, while the 1-282837-0 specifies 0.68 Nm (6 Lb-In). These values must be observed during assembly to achieve proper electrical contact and mechanical retention without over-tightening.

Q: Are the contact materials interchangeable?

A: Both parts employ tin-plated contacts with nickel-plated clamps and screws. The ESLM10200 uses copper alloy base materials while the 1-282837-0 uses brass base materials. Both material systems provide equivalent electrical performance within the specified voltage and current ratings.

Q: Do both parts meet the same compliance standards?

A: Yes. Both the ESLM10200 and 1-282837-0 are RoHS compliant with MSL-1 moisture sensitivity ratings and carry EAR99 ECCN classification.

Q: What packaging differences exist between these parts?

A: The ESLM10200 is supplied in tray packaging, while the 1-282837-0 is supplied in bulk packaging. This affects handling and storage procedures but does not impact electrical or mechanical performance.

Q: Are the operating temperature ranges equivalent?

A: The ESLM10200 specifies -40°C to 110°C operating temperature. The 1-282837-0 does not provide an operating temperature specification in the available data.
