ELFH0222G Equivalent & Substitute Parts Reference

Part Overview

The ELFH0222G is a 0.200"/5.08mm right-angle header terminal block manufactured by Amphenol PCD. This component functions as a position terminal block for through-hole PCB applications. The part is currently active in production with 809 units in stock. Alternative equivalent parts may be required due to supply constraints, design revisions, or specific application requirements where compatible electrical and mechanical parameters are maintained.

Substiute Parts

ELFH0222G

Amphenol PCDIn Stock: 915ELFH0222G Datasheet

Current PartRFQ

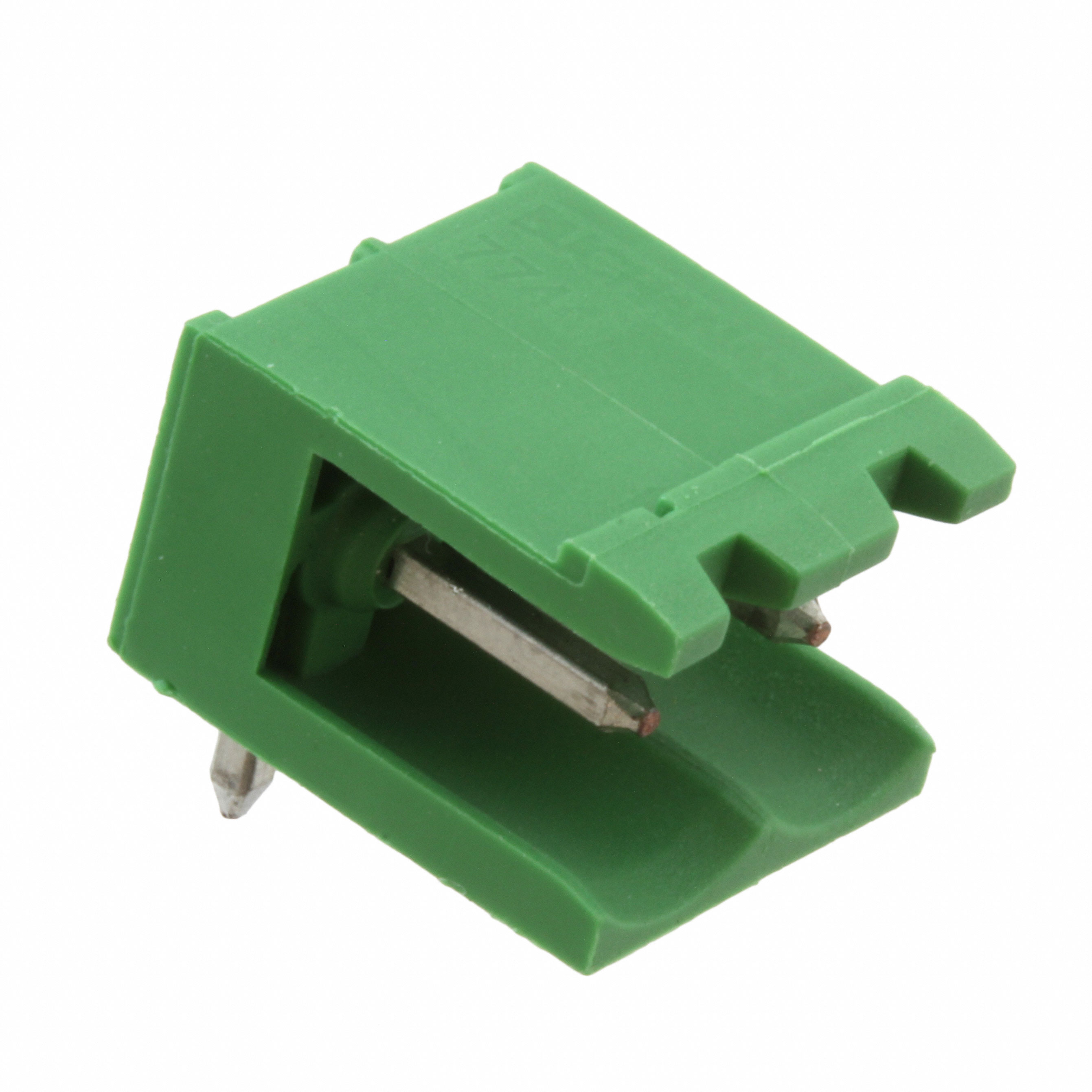

282815-2

TE Connectivity AMP ConnectorsIn Stock: 1216282815-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 282815-2 (TE Connectivity AMP Connectors) qualifies as an equivalent based on the following critical parameters:

Matching Parameters:

• Pitch: 0.200" (5.08mm) — identical connector spacing
• Header Orientation: 90° right-angle configuration — same mechanical orientation
• Mounting Type: Through-hole — compatible PCB assembly method
• Category: Terminal Blocks — same functional classification
• Packaging: Bulk — identical supply format
• RoHS Compliance: Both parts meet RoHS requirements
• Moisture Sensitivity Level: 1 (Unlimited) — identical handling requirements
• ECCN Classification: EAR99 — same export control status
• HTSUS Code: 8536.69.4040 — identical tariff classification

The 282815-2 provides electrical and mechanical compatibility within the constraints of the provided specifications.

Parameter Comparison

Engineering Selection Recommendations

Both the ELFH0222G and 282815-2 maintain active product status with full RoHS compliance and identical regulatory classifications (ECCN EAR99, HTSUS 8536.69.4040). The 282815-2 provides documented electrical specifications (15 A at 300 V UL rating) and thermal operating range (-40°C ~ 110°C), supporting applications within these defined parameters. Selection between these parts should be based on design-specific requirements, PCB layout constraints, and supply chain availability. The 282815-2 is currently available in higher inventory volume (1193 units versus 809 units).

Frequently Asked Questions (FAQ)

Q: What makes 282815-2 a valid substitute for ELFH0222G? A: Both parts share identical pitch (0.200"/5.08mm), right-angle header orientation, through-hole mounting type, and equivalent regulatory compliance (RoHS, ECCN EAR99, HTSUS 8536.69.4040). Both maintain MSL 1 (Unlimited) moisture sensitivity classification.

Q: Are there electrical rating differences between these parts? A: The 282815-2 specifies 15 A at 300 V (UL rating) and -40°C ~ 110°C operating temperature. The ELFH0222G electrical specifications are not provided in the available data. Verify application requirements against the 282815-2 ratings before substitution.

Q: What is the difference in packaging between these parts? A: Both parts are supplied in bulk packaging format. No packaging configuration differences exist between the two parts.

Q: Can I use 282815-2 as a direct PCB replacement for ELFH0222G? A: Mechanical compatibility is supported through matching pitch and right-angle orientation. Physical footprint verification is required, as detailed dimensional data is not provided for the ELFH0222G.

Q: Are there supply chain advantages to using 282815-2? A: The 282815-2 currently maintains higher inventory availability (1193 units in stock compared to 809 units for ELFH0222G).
