Equivalent & Substitute Parts for EE-SH3-B Optical Sensor

Part Overview

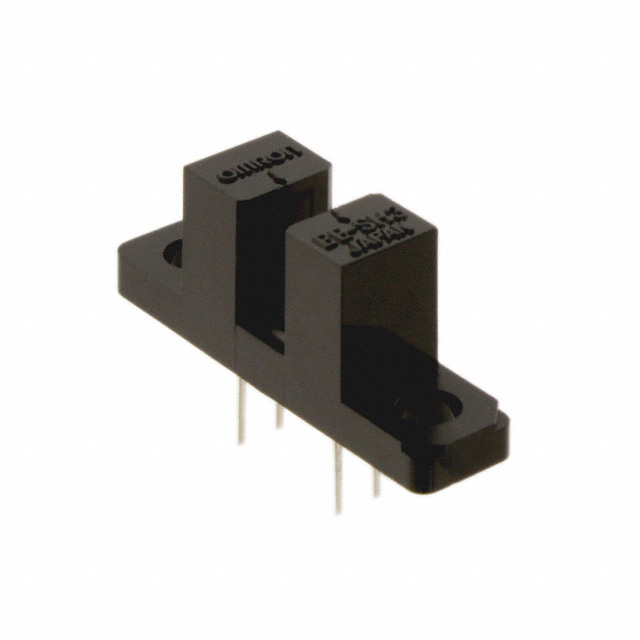

The EE-SH3-B is an optical sensor manufactured by Omron Electronics Inc-EMC Div, classified as a through-beam phototransistor optical sensor with PCB mount configuration. This component features a 0.134" (3.4mm) sensing distance and unamplified phototransistor output. The EE-SH3-B is currently listed as obsolete, making identification of active equivalent parts essential for ongoing production and maintenance applications. Multiple parametrically equivalent alternatives are available from the same manufacturer with identical electrical and mechanical specifications but active product status.

Key Parameters

Parameter	Value
Sensing Distance	0.134" (3.4mm)
Sensing Method	Through-Beam
Output Configuration	Phototransistor
Current - DC Forward (If) (Max)	50 mA
Current - Collector (Ic) (Max)	20 mA
Voltage - Collector Emitter Breakdown (Max)	30 V
Response Time	4µs, 4µs
Operating Temperature	-25°C ~ 85°C
Mounting Type	Through Hole
Package / Case	PCB Mount
Type	Unamplified
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution of the obsolete EE-SH3-B is determined by strict equivalence across all critical electrical and mechanical parameters. All substitute parts maintain identical specifications for sensing distance (0.134" / 3.4mm), sensing method (through-beam), output configuration (phototransistor), current ratings (If max 50 mA, Ic max 20 mA), voltage breakdown (30 V), response time (4µs), operating temperature range (-25°C to 85°C), mounting type (through hole), and package configuration (PCB mount). All substitutes are unamplified phototransistor sensors.

The substitute parts identified are: EE-SJ3-G, EE-SV3-B, EE-SV3-C, EE-SV3-D, EE-SV3-G, EE-SX1071, EE-SX1088, EE-SX1096, and EE-SX138. These parts share identical parametric specifications with the main part and differ only in product status (active versus obsolete), packaging format, and regulatory compliance certifications.

Parameter Comparison

Part Number	Manufacturer	Product Status	Sensing Distance	Sensing Method	Output Configuration	If (Max)	Ic (Max)	VCE Breakdown (Max)	Response Time	Operating Temperature	Mounting Type	Package / Case	Type	RoHS Status	Inventory
EE-SH3-B	Omron Electronics Inc-EMC Div	Obsolete	0.134" (3.4mm)	Through-Beam	Phototransistor	50 mA	20 mA	30 V	4µs, 4µs	-25°C ~ 85°C	Through Hole	PCB Mount	Unamplified	RoHS Compliant	868 Pcs
EE-SJ3-G	Omron Electronics Inc-EMC Div	Active	0.134" (3.4mm)	Through-Beam	Phototransistor	50 mA	20 mA	30 V	4µs, 4µs	-25°C ~ 85°C	Through Hole	PCB Mount	Unamplified	RoHS Compliant	1106 Pcs
EE-SV3-B	Omron Electronics Inc-EMC Div	Active	0.134" (3.4mm)	Through-Beam	Phototransistor	50 mA	20 mA	30 V	4µs, 4µs	-25°C ~ 85°C	Through Hole	PCB Mount	Unamplified	RoHS Compliant	5222 Pcs
EE-SV3-C	Omron Electronics Inc-EMC Div	Active	0.134" (3.4mm)	Through-Beam	Phototransistor	50 mA	20 mA	30 V	4µs, 4µs	-25°C ~ 85°C	Through Hole	PCB Mount	Unamplified	ROHS3 Compliant	936 Pcs
EE-SV3-D	Omron Electronics Inc-EMC Div	Active	0.134" (3.4mm)	Through-Beam	Phototransistor	50 mA	20 mA	30 V	4µs, 4µs	-25°C ~ 85°C	Through Hole	PCB Mount	Unamplified	ROHS3 Compliant	1148 Pcs
EE-SV3-G	Omron Electronics Inc-EMC Div	Active	0.134" (3.4mm)	Through-Beam	Phototransistor	50 mA	20 mA	30 V	4µs, 4µs	-25°C ~ 85°C	Through Hole	PCB Mount	Unamplified	RoHS Compliant	710 Pcs
EE-SX1071	Omron Electronics Inc-EMC Div	Active	0.134" (3.4mm)	Through-Beam	Phototransistor	50 mA	20 mA	30 V	4µs, 4µs	-25°C ~ 85°C	Through Hole	PCB Mount	Unamplified	ROHS3 Compliant	2620 Pcs
EE-SX1088	Omron Electronics Inc-EMC Div	Active	0.134" (3.4mm)	Through-Beam	Phototransistor	50 mA	20 mA	30 V	4µs, 4µs	-25°C ~ 85°C	Through Hole	PCB Mount	Unamplified	ROHS3 Compliant	14565 Pcs
EE-SX1096	Omron Electronics Inc-EMC Div	Active	0.134" (3.4mm)	Through-Beam	Phototransistor	50 mA	20 mA	30 V	4µs, 4µs	-25°C ~ 85°C	Through Hole	PCB Mount	Unamplified	RoHS Compliant	1053 Pcs
EE-SX138	Omron Electronics Inc-EMC Div	Active	0.134" (3.4mm)	Through-Beam	Phototransistor	50 mA	20 mA	30 V	4µs, 4µs	-25°C ~ 85°C	Through Hole	PCB Mount	Unamplified	RoHS Compliant	1082 Pcs

Engineering Selection Recommendations

All identified substitute parts are parametrically equivalent to the EE-SH3-B and maintain identical electrical and mechanical specifications. Selection among active alternatives should be based on product status and regulatory compliance requirements.

For applications requiring RoHS Compliant certification, the following parts are suitable: EE-SJ3-G, EE-SV3-B, EE-SV3-G, EE-SX1096, and EE-SX138.

For applications requiring ROHS3 Compliant certification, the following parts are suitable: EE-SV3-C, EE-SV3-D, and EE-SX1071.

EE-SX1088 is ROHS3 Compliant and maintains the highest inventory level at 14,565 pieces, providing supply continuity for high-volume applications.

Frequently Asked Questions (FAQ)

Q: Can EE-SJ3-G directly replace EE-SH3-B in existing designs?

A: Yes. EE-SJ3-G maintains identical electrical specifications (50 mA If max, 20 mA Ic max, 30 V VCE breakdown), response time (4µs), operating temperature range (-25°C to 85°C), sensing distance (0.134" / 3.4mm), and through-hole PCB mount configuration. The primary difference is product status (active versus obsolete) and packaging format (bulk versus unspecified).

Q: What is the difference between RoHS and ROHS3 compliance among the substitute parts?

A: Both certifications indicate compliance with hazardous substance restrictions. ROHS3 represents a more recent revision of the RoHS directive. Parts marked ROHS3 Compliant (EE-SV3-C, EE-SV3-D, EE-SX1071, EE-SX1088) meet current regulatory standards. Parts marked RoHS Compliant (EE-SJ3-G, EE-SV3-B, EE-SV3-G, EE-SX1096, EE-SX138) also meet compliance requirements. Selection should align with your application's regulatory requirements.

Q: Are all substitute parts available in the same packaging as EE-SH3-B?

A: Most substitute parts are available in bulk packaging. EE-SV3-G and EE-SH3-B have unspecified packaging designations. All parts share identical PCB mount configuration and through-hole mounting type, ensuring mechanical compatibility in circuit board designs.

Q: Which substitute part offers the best supply availability?

A: EE-SX1088 provides the highest inventory level at 14,565 pieces, followed by EE-SV3-B at 5,222 pieces. Both are active products with ROHS3 and RoHS compliance respectively, making them suitable for immediate production deployment.

Q: Do all substitute parts maintain the same response time as EE-SH3-B?

A: Yes. All substitute parts maintain identical response time specifications of 4µs, 4µs, ensuring equivalent switching performance in through-beam optical sensing applications.
