ECW-FG2J225QA Equivalent & Substitute Parts

Part Overview

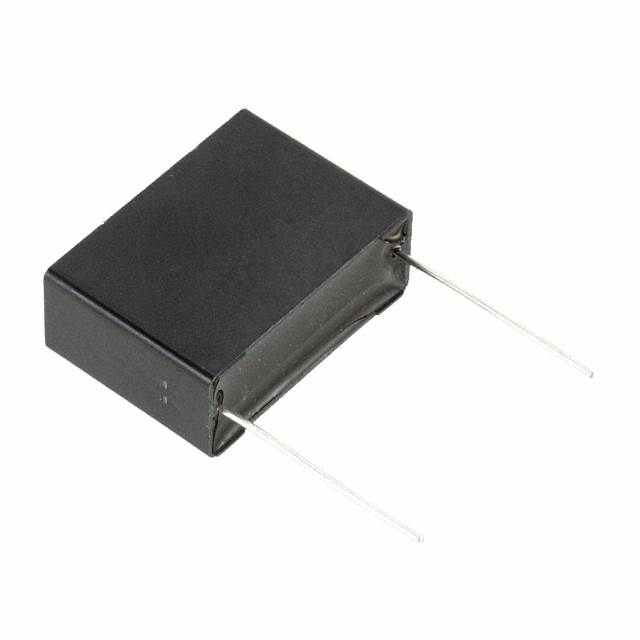

The ECW-FG2J225QA is a 2.2 µF film capacitor manufactured by Panasonic Electronic Components, rated for 630V DC operation with polypropylene metallized dielectric. This radial through-hole component is designed for automotive applications, high-frequency switching circuits, and high-temperature environments. The part maintains Active product status with full AEC-Q200 automotive qualification and ROHS3 compliance. Substitute parts are identified to provide alternative sourcing options while maintaining identical electrical and mechanical specifications.

Substiute Parts

ECW-FG2J225QA

Panasonic Electronic ComponentsIn Stock: 978ECW-FG2J225QA Datasheet

Current PartRFQ

ECW-FG2J225Q1

Panasonic Electronic ComponentsIn Stock: 1148ECW-FG2J225Q1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the ECW-FG2J225QA are identified based on strict parametric equivalence across all critical electrical and mechanical specifications. The substitution logic is based on the following key parameters that must remain identical:

Capacitance value of 2.2 µF with ±10% tolerance ensures functional equivalence in circuit operation. Voltage ratings of 630V DC and 141V AC must be maintained to preserve circuit safety margins and reliability. Dielectric material specification (Polypropylene, Metallized) determines frequency response and performance characteristics. Operating temperature range of -40°C ~ 110°C must be supported for automotive and high-temperature applications. Mounting configuration (Through Hole, Radial) and lead spacing of 0.886" (22.50mm) ensure mechanical compatibility with existing PCB layouts. AEC-Q200 automotive qualification and ROHS3 compliance must be retained for regulated applications.

Parameter Comparison

Engineering Selection Recommendations

Both ECW-FG2J225QA and ECW-FG2J225Q1 are Active products from Panasonic Electronic Components with identical electrical and mechanical specifications. Selection between these parts is based on inventory availability and supply chain considerations. Both parts maintain AEC-Q200 automotive qualification and ROHS3 compliance, ensuring suitability for regulated applications. The ECW-FG2J225Q1 offers higher inventory availability (1116 pcs) compared to ECW-FG2J225QA (908 pcs), which may influence procurement decisions for high-volume production requirements.

Frequently Asked Questions (FAQ)

Q: Can ECW-FG2J225Q1 be used as a direct replacement for ECW-FG2J225QA?

A: Yes. Both parts are parametrically identical across all electrical and mechanical specifications, including capacitance, voltage ratings, dielectric material, operating temperature range, package dimensions, and lead spacing. Direct substitution is supported without circuit modification.

Q: Are there any differences in automotive qualification between these parts?

A: No. Both ECW-FG2J225QA and ECW-FG2J225Q1 carry AEC-Q200 automotive qualification and ROHS3 compliance status, meeting identical regulatory requirements.

Q: What determines compatibility in PCB assembly?

A: Mechanical compatibility is ensured through identical radial through-hole package configuration, lead spacing of 0.886" (22.50mm), and physical dimensions of 1.063" L x 0.610" W with maximum seated height of 0.965". These specifications guarantee fit within existing PCB layouts without modification.

Q: Are there any temperature or frequency performance differences?

A: No. Both parts operate across the identical temperature range of -40°C ~ 110°C with polypropylene metallized dielectric, ensuring equivalent performance in high-frequency and switching applications.

Q: What is the basis for substitution eligibility?

A: Substitution is based on strict parametric equivalence: 2.2 µF capacitance at ±10% tolerance, 630V DC / 141V AC voltage ratings, polypropylene metallized dielectric, through-hole radial mounting, and AEC-Q200 automotive qualification. All parameters must match for substitution approval.
