DTP04-4P-E003 Equivalent & Substitute Parts

Part Overview

The DTP04-4P-E003 is a 4-position rectangular connector receptacle housing manufactured by TE Connectivity Deutsch Connectors. This component serves as the housing for receptacle connectors in applications requiring crimp termination and latch-holder fastening. The part is classified as Active product status with full RoHS3 compliance and REACH unaffected designation.

Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct functional replacement in assembly applications. Alternative models within the DTP, DT, and DTM series, as well as cross-manufacturer options, provide equivalent performance characteristics for component procurement flexibility.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Male Pin
Number of Positions	4
Number of Rows	2
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Holder
Features	Cap (Cover), IP68, IP6K9K
Operating Temperature Range	-55°C ~ 125°C
RoHS Status	ROHS3 Compliant
REACH Status	REACH Unaffected

Substitute Part Grouping Explanation

Substitution eligibility for the DTP04-4P-E003 is determined by alignment across the following critical parameters:

Electrical Compatibility Parameters:

Connector Type: Receptacle
Contact Type: Male Pin
Number of Positions: 4
Number of Rows: 2
Contact Termination: Crimp
Fastening Type: Latch Holder

Environmental & Compliance Parameters:

Operating Temperature Range: -55°C ~ 125°C
Features: Cap (Cover), IP68, IP6K9K
RoHS Status: ROHS3 Compliant
REACH Status: REACH Unaffected

Mechanical Parameters:

Mounting Type: Free Hanging (In-Line)

Substitute parts are grouped into two categories:

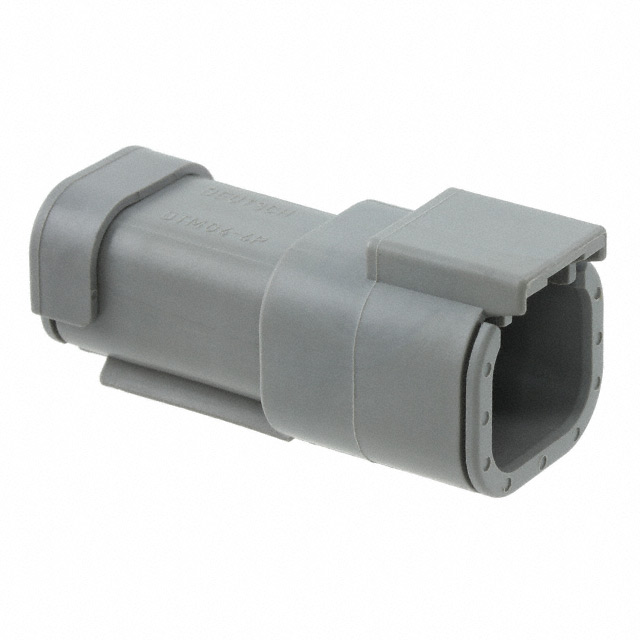

Parametric Equivalents (TE Connectivity Deutsch Connectors): Parts DT04-4P-E003, DT04-4P-E005, DTM04-4P-E003, and DTM04-4P-E005 maintain identical electrical, environmental, and mechanical specifications. Variations in color and insulation material designation do not affect functional compatibility.

Similar Substitute (Cross-Manufacturer): Part ATP04-4P-EC01 from Amphenol Sine Systems Corp meets all critical electrical and mechanical parameters with equivalent operating temperature range and compliance certifications. Feature designation differs (Sealed versus IP68/IP6K9K), and insulation material is specified as Thermoplastic rather than Polyamide or Plastic variants.

Parameter Comparison

Parameter	DTP04-4P-E003	DT04-4P-E003	DT04-4P-E005	DTM04-4P-E003	DTM04-4P-E005	ATP04-4P-EC01
Manufacturer	TE Connectivity Deutsch	TE Connectivity Deutsch	TE Connectivity Deutsch	TE Connectivity Deutsch	TE Connectivity Deutsch	Amphenol Sine Systems
Series	DTP	DT	DT	DTM	DTM	ATP Series™
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Number of Positions	4	4	4	4	4	4
Number of Rows	2	2	2	2	2	2
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp	Crimp
Fastening Type	Latch Holder	Latch Holder	Latch Holder	Latch Holder	Latch Holder	Latch Holder
Features	Cap (Cover), IP68, IP6K9K	Cap (Cover), IP68, IP6K9K	Cap (Cover), IP68, IP6K9K	Cap (Cover), IP68, IP6K9K	Cap (Cover), IP68, IP6K9K	Cap (Cover), Sealed
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Product Status	Active	Active	Active	Active	Active	Active
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
REACH Status	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected
Inventory Status	1419 Pcs	1586 Pcs	1650 Pcs	2074 Pcs	5325 Pcs	1237 Pcs

Engineering Selection Recommendations

All identified substitute parts maintain Active product status with full RoHS3 compliance and REACH unaffected designation, ensuring regulatory alignment with the primary DTP04-4P-E003 component.

TE Connectivity Deutsch Connectors Substitutes (DT04-4P-E003, DT04-4P-E005, DTM04-4P-E003, DTM04-4P-E005): These parts provide direct parametric equivalence within the same manufacturer ecosystem. Selection among these options is determined by color requirement (Gray for DT04-4P-E003, Black for DT04-4P-E005 and DTM04-4P-E005) and series preference (DT or DTM). DTM04-4P-E005 offers the highest inventory availability at 5325 pieces.

Amphenol Sine Systems ATP04-4P-EC01: This cross-manufacturer substitute meets all critical electrical and mechanical parameters with equivalent operating temperature range and compliance certifications. Feature designation specifies Sealed protection rather than explicit IP68/IP6K9K ratings. Insulation material is designated as Thermoplastic. This option is suitable for applications where cross-manufacturer sourcing is acceptable and environmental sealing requirements align with Sealed classification.

Selection should prioritize inventory availability and supply chain continuity requirements alongside color and series preferences specific to assembly specifications.

Frequently Asked Questions (FAQ)

Q: Can DT04-4P-E003 and DT04-4P-E005 be used interchangeably with DTP04-4P-E003?

A: Yes. Both DT04-4P-E003 and DT04-4P-E005 are parametric equivalents to DTP04-4P-E003. The primary difference is color designation: DT04-4P-E003 is Gray, while DT04-4P-E005 is Black. All other electrical, mechanical, and environmental specifications are identical. Selection depends on color requirements for your application.

Q: What is the difference between DTM04-4P-E003 and DTM04-4P-E005?

A: Both parts are parametric equivalents with identical electrical and mechanical specifications. The distinction is color: DTM04-4P-E003 has no specified color designation, while DTM04-4P-E005 is Black. DTM04-4P-E005 has significantly higher inventory availability (5325 pieces versus 2074 pieces).

Q: Is ATP04-4P-EC01 from Amphenol a direct substitute for DTP04-4P-E003?

A: ATP04-4P-EC01 is a similar substitute that meets all critical electrical and mechanical parameters, including 4-position receptacle configuration, crimp termination, latch-holder fastening, and -55°C to 125°C operating temperature range. However, it differs in feature designation (Sealed versus IP68/IP6K9K) and insulation material (Thermoplastic versus Polyamide/Plastic). It is suitable for applications where cross-manufacturer sourcing is acceptable.

Q: Are contacts included with these connector housings?

A: No. All listed parts are connector housings only. Contacts are not included and must be sourced separately.

Q: Do all substitute parts have the same compliance certifications?

A: All TE Connectivity Deutsch Connectors substitutes (DT04, DTM04 series) maintain identical RoHS3 compliance and REACH unaffected status. ATP04-4P-EC01 also carries RoHS3 compliance and REACH unaffected designation. Verify specific compliance requirements for your application before final selection.

Q: What is the difference between IP68/IP6K9K and Sealed protection?

A: IP68 and IP6K9K are specific ingress protection ratings. IP68 indicates dust-tight and water-resistant to continuous immersion. IP6K9K indicates protection against high-pressure water jets. ATP04-4P-EC01 specifies Sealed protection without explicit IP rating designation. Confirm environmental protection requirements match your application specifications.

Q: Can I mix and match parts from different series (DTP, DT, DTM) in the same assembly?

A: All identified parts share identical electrical and mechanical specifications, allowing functional interchangeability. However, assembly design specifications may impose series consistency requirements. Consult your design documentation and assembly procedures before mixing series.
