DT04-4P-CE02 Equivalent & Substitute Parts

Part Overview

The DT04-4P-CE02 is a 4-position rectangular connector receptacle housing manufactured by TE Connectivity Deutsch Connectors. This connector is designed for free-hanging, in-line applications requiring crimp termination with latch holder fastening. The part is classified as Active product status and is ROHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are required for applications where the original part number is unavailable, discontinued, or when alternative color or series options are necessary to meet specific system requirements.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Male Pin
Number of Positions	4
Number of Rows	2
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Holder
Operating Temperature Range	-55°C ~ 125°C
Features	IP68, IP6K9K, Reduced Wire Seals
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitute parts for the DT04-4P-CE02 are classified into two categories based on parametric equivalence and similarity:

Parametric Equivalents maintain all critical electrical and mechanical parameters including connector type (receptacle), contact type (male pin), number of positions (4), number of rows (2), mounting type (free hanging in-line), contact termination (crimp), fastening type (latch holder), operating temperature range (-55°C ~ 125°C), and compliance certifications (ROHS3). These parts differ only in color or series designation within the TE Connectivity Deutsch Connectors product line.

Similar Parts from alternative manufacturers (Amphenol Sine Systems Corp) maintain the same core functional parameters but may differ in insulation material composition, feature set, or moisture sensitivity classification while preserving the essential electrical and mechanical compatibility criteria.

The following parameters determine substitution eligibility:

Connector type: Receptacle
Contact type: Male Pin
Number of positions: 4
Number of rows: 2
Mounting type: Free Hanging (In-Line)
Contact termination: Crimp
Fastening type: Latch Holder
Operating temperature: -55°C ~ 125°C
RoHS compliance: ROHS3 Compliant

Parameter Comparison

Part Number	Manufacturer	Series	Color	Insulation Material	Features	Inventory (Pcs)	Product Status
DT04-4P-CE02	TE Connectivity Deutsch Connectors	DT	Black	Polyamide (PA), Nylon, Glass Filled	IP68, IP6K9K, Reduced Wire Seals	965	Active
DT04-4P-C015	TE Connectivity Deutsch Connectors	DT	Gray	Polyamide (PA), Nylon, Glass Filled	IP68, IP6K9K, Reduced Wire Seals	1921	Active
DT04-4P-CE04	TE Connectivity Deutsch Connectors	DT	Gray	Polyamide (PA), Nylon, Glass Filled	IP68, IP6K9K, Reduced Wire Seals	2194	Active
DTP04-4P-C015	TE Connectivity Deutsch Connectors	DTP	Gray	Polyamide (PA66), Nylon 6/6, Glass Filled	IP68, IP6K9K, Reduced Wire Seals	1292	Active
AT04-4P-RD01BLK	Amphenol Sine Systems Corp	AT Series™	Black	Thermoplastic	Sealed	1407	Active

Engineering Selection Recommendations

All substitute parts listed maintain Active product status and ROHS3 compliance, ensuring continued availability and regulatory conformance for new designs and production applications.

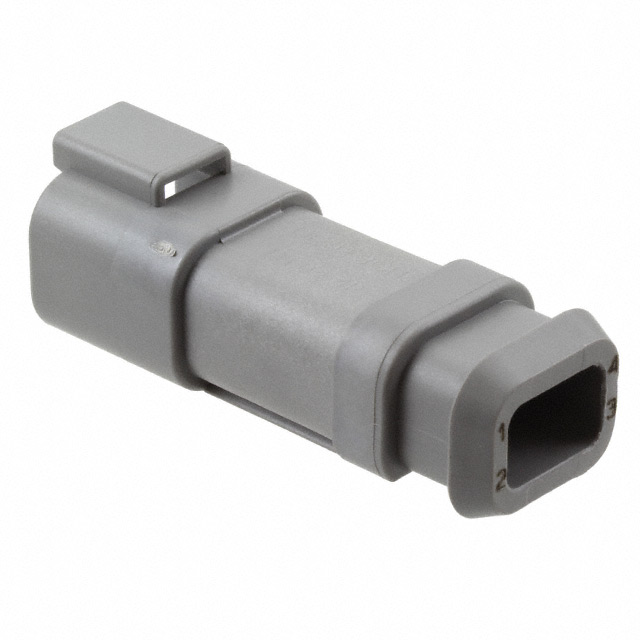

TE Connectivity Deutsch Connectors DT Series (DT04-4P-C015, DT04-4P-CE04): These parts are direct parametric equivalents to the DT04-4P-CE02 within the same DT series. Both maintain identical insulation material composition (Polyamide PA, Nylon, Glass Filled), feature set (IP68, IP6K9K, Reduced Wire Seals), and operating temperature range. Selection between these parts is determined by color requirement and inventory availability. DT04-4P-CE04 offers the highest inventory level (2194 pcs).

TE Connectivity Deutsch Connectors DTP Series (DTP04-4P-C015): This part represents a series upgrade from DT to DTP, utilizing Polyamide PA66 (Nylon 6/6) insulation material instead of standard PA. The DTP series maintains all critical electrical and mechanical parameters, operating temperature range, and feature set. This substitution is appropriate when PA66 material specification is required or preferred.

Amphenol Sine Systems Corp AT Series (AT04-4P-RD01BLK): This part is classified as a similar alternative from a different manufacturer. While maintaining the same core functional parameters (4-position receptacle, male pin contact, crimp termination, latch holder fastening, free-hanging mounting), it differs in insulation material (Thermoplastic versus Polyamide), feature description (Sealed versus IP68/IP6K9K), and moisture sensitivity classification (MSL 1 versus Not Applicable). This option is suitable when cross-manufacturer compatibility is acceptable and black color is required.

Frequently Asked Questions (FAQ)

Q: Can DT04-4P-C015 be used as a direct replacement for DT04-4P-CE02?

A: Yes. DT04-4P-C015 is a parametric equivalent within the TE Connectivity Deutsch Connectors DT series. Both parts maintain identical connector type (receptacle), contact type (male pin), position count (4), row configuration (2), mounting type (free hanging in-line), termination method (crimp), fastening type (latch holder), operating temperature range (-55°C ~ 125°C), and compliance status (ROHS3). The only difference is housing color (gray versus black).

Q: What is the difference between DT04-4P-C015 and DTP04-4P-C015?

A: Both parts are 4-position receptacle connectors with identical electrical and mechanical parameters. The primary difference is the insulation material: DT04-4P-C015 uses Polyamide (PA) Nylon Glass Filled, while DTP04-4P-C015 uses Polyamide (PA66) Nylon 6/6 Glass Filled. The DTP series represents a material upgrade. Both maintain the same operating temperature range (-55°C ~ 125°C) and feature set (IP68, IP6K9K, Reduced Wire Seals).

Q: Is the Amphenol AT04-4P-RD01BLK compatible with the DT04-4P-CE02?

A: The AT04-4P-RD01BLK maintains the same core functional parameters: 4-position receptacle, male pin contact, crimp termination, latch holder fastening, and free-hanging mounting. However, it is manufactured by Amphenol Sine Systems Corp rather than TE Connectivity, uses Thermoplastic insulation instead of Polyamide, and has different feature classification (Sealed versus IP68/IP6K9K). Compatibility depends on system-level requirements and whether cross-manufacturer substitution is permitted in the application.

Q: Do all substitute parts include contacts?

A: No. All listed parts (DT04-4P-CE02, DT04-4P-C015, DT04-4P-CE04, DTP04-4P-C015, and AT04-4P-RD01BLK) are connector housings only. Contacts are not included and must be ordered separately.

Q: Which substitute part has the highest inventory availability?

A: DT04-4P-CE04 has the highest inventory level at 2194 pieces in stock. This part is a parametric equivalent to DT04-4P-CE02 within the DT series, differing only in housing color (gray).

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All listed substitute parts maintain ROHS3 compliance status, ensuring regulatory conformance for applications subject to RoHS directives.
