DF62-6S-2.2C Equivalent & Substitute Parts

Part Overview

The DF62-6S-2.2C is a 6-position rectangular connector housing manufactured by Hirose Electric Co Ltd, designed for socket applications with a 2.20mm pitch. This component is classified as obsolete, which necessitates identification of active equivalent alternatives that maintain electrical and mechanical compatibility. The connector features a female socket contact type, latch lock fastening, and operates across a temperature range of -35°C to 105°C. Substitute parts must preserve the core specifications: 6 positions, 2.20mm pitch, 2-row configuration with 2.00mm row spacing, and crimp termination compatibility.

Key Parameters

Parameter	Value
Connector Type	Socket
Contact Type	Female Socket
Number of Positions	6
Pitch	0.087" (2.20mm)
Number of Rows	2
Row Spacing	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-35°C ~ 105°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the DF62-6S-2.2C is determined by strict equivalence across the following parameters: connector type (socket), contact type (female socket), number of positions (6), pitch (2.20mm), row configuration (2 rows with 2.00mm spacing), mounting type (free hanging in-line), contact termination (crimp), fastening type (latch lock), insulation material (PBT), and operating temperature range (-35°C to 105°C).

The substitute parts are grouped into two categories based on the DF62 series variants:

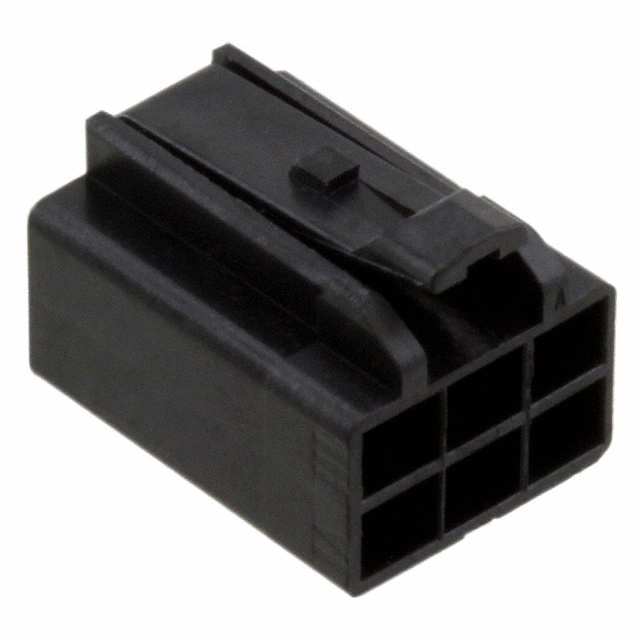

DF62B Series: DF62B-6S-2.2C and DF62B-6S-2.2C(11) maintain full electrical and mechanical compatibility with the original part. The designation suffix (11) indicates color variation (black versus white).

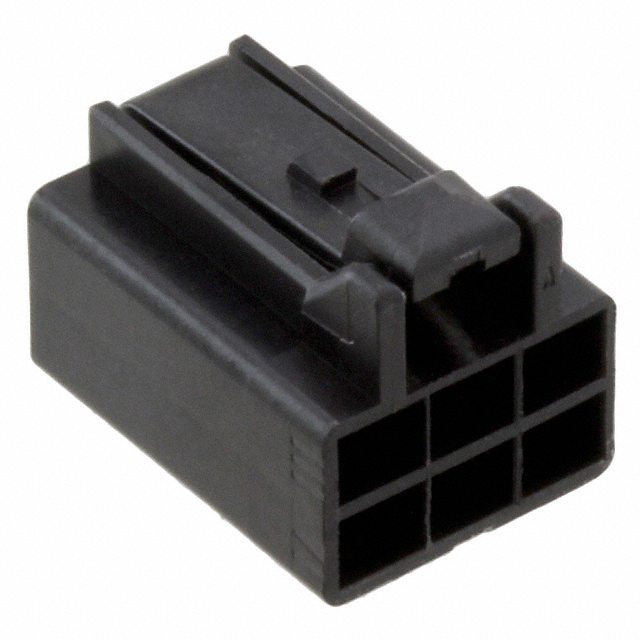

DF62C Series: DF62C-6S-2.2C and DF62C-6S-2.2C(11) provide equivalent functionality with identical core specifications. The designation suffix (11) indicates color variation (black versus white).

All substitute parts are active products with RoHS3 compliance and REACH unaffected status, addressing the obsolescence of the original component.

Parameter Comparison

Parameter	DF62-6S-2.2C	DF62B-6S-2.2C	DF62B-6S-2.2C(11)	DF62C-6S-2.2C	DF62C-6S-2.2C(11)
Connector Type	Socket	Socket	Socket	Socket	Socket
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	6	6	6	6	6
Pitch	0.087" (2.20mm)	0.087" (2.20mm)	0.087" (2.20mm)	0.087" (2.20mm)	0.087" (2.20mm)
Number of Rows	2	2	2	2	2
Row Spacing	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp
Fastening Type	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Operating Temperature	-35°C ~ 105°C	-35°C ~ 105°C	-35°C ~ 105°C	-35°C ~ 105°C	-35°C ~ 105°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active	Active	Active	Active
RoHS Status	Not specified	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
REACH Status	Not specified	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected
Color	White	White	Black	White	Black

Engineering Selection Recommendations

All four substitute parts (DF62B-6S-2.2C, DF62B-6S-2.2C(11), DF62C-6S-2.2C, DF62C-6S-2.2C(11)) are active products with full RoHS3 compliance and REACH unaffected status. These certifications address regulatory requirements for new designs and procurement cycles.

Selection between DF62B and DF62C series variants should be based on design requirements and availability. Both series maintain identical electrical and mechanical specifications. Color selection (white or black, indicated by the (11) suffix) depends on application aesthetics and assembly requirements.

The DF62B-6S-2.2C and DF62C-6S-2.2C (white variants) provide direct visual equivalence to the original DF62-6S-2.2C. The black variants (DF62B-6S-2.2C(11) and DF62C-6S-2.2C(11)) are functionally equivalent with color differentiation only.

Frequently Asked Questions (FAQ)

Q: Can DF62B and DF62C series parts be used interchangeably? A: Yes. Both series maintain identical electrical and mechanical specifications across all critical parameters: 6 positions, 2.20mm pitch, 2-row configuration, female socket contact type, crimp termination, and latch lock fastening. Selection between series is based on availability and design preference.

Q: What does the (11) suffix indicate in part numbers? A: The (11) suffix indicates color variation. DF62B-6S-2.2C and DF62C-6S-2.2C are white housings. DF62B-6S-2.2C(11) and DF62C-6S-2.2C(11) are black housings. All other specifications remain identical.

Q: Are the substitute parts compatible with existing mating connectors designed for DF62-6S-2.2C? A: Yes. All substitute parts maintain the same pitch (2.20mm), row spacing (2.00mm), number of positions (6), and mounting type (free hanging in-line). Mating compatibility is preserved.

Q: What is the significance of RoHS3 compliance on the substitute parts? A: RoHS3 compliance indicates that the substitute parts meet current regulatory requirements for restricted hazardous substances. This is relevant for new designs and procurement in regulated markets.

Q: Are contacts included with these connector housings? A: No. All parts in this comparison, including the original DF62-6S-2.2C and all substitutes, are housings only. Contacts must be sourced separately and are compatible with crimp termination.

Q: Can color be mixed in an assembly using these parts? A: Color selection depends on application requirements. White and black variants are functionally equivalent. Assembly design should specify color consistency or allow for mixed-color configurations based on functional needs.
