BTH-080-02-L-D-A Equivalent & Substitute Parts

Part Overview

The BTH-080-02-L-D-A is a 160 Position Connector Header manufactured by Samtec Inc., designed for surface mount applications with outer shroud contacts and gold plating. This rectangular connector is classified as an active product with full RoHS3 compliance and unlimited moisture sensitivity rating. Equivalent and substitute parts are identified based on matching electrical and mechanical specifications to ensure direct interchangeability in circuit board assembly and interconnect applications.

Substiute Parts

BTH-080-02-L-D-A

Samtec Inc.In Stock: 787BTH-080-02-L-D-A Datasheet

Current PartRFQ

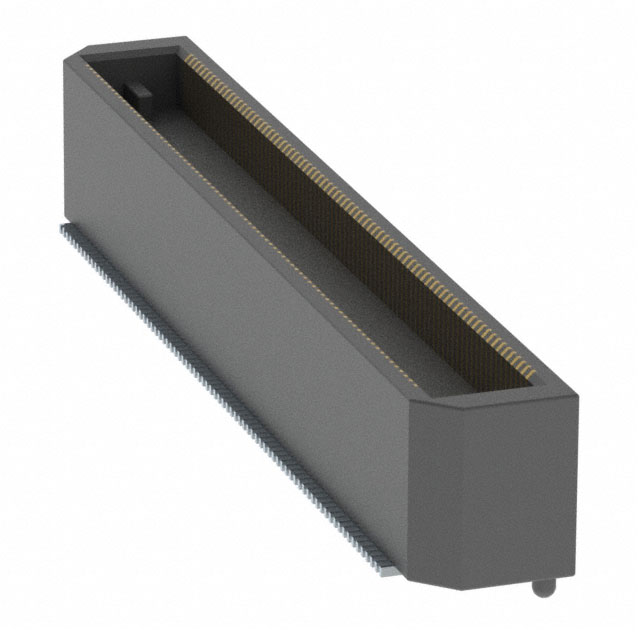

BTH-080-02-L-D-A-K

Samtec Inc.In Stock: 1202BTH-080-02-L-D-A-K Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the BTH-080-02-L-D-A are identified through parametric equivalence. The following electrical and mechanical parameters must match exactly for substitution eligibility:

• Number of Positions: 160
• Pitch: 0.020" (0.50mm)
• Number of Rows: 2
• Connector Type: Header, Outer Shroud Contacts
• Mounting Type: Surface Mount
• Contact Finish: Gold
• Contact Finish Thickness: 10.0µin (0.25µm)
• Height Above Board: 0.286" (7.26mm)
• Mated Stacking Heights: 8mm
• Features: Board Guide
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The BTH-080-02-L-D-A-K is classified as a parametric equivalent substitute, maintaining identical electrical and mechanical specifications while differing only in packaging configuration or internal design variant designation.

Parameter Comparison

Engineering Selection Recommendations

Both the BTH-080-02-L-D-A and BTH-080-02-L-D-A-K are active products with full ROHS3 compliance and REACH unaffected status. Selection between these parts is based on availability and supply chain requirements. The BTH-080-02-L-D-A-K currently maintains higher inventory levels (1167 Pcs) compared to the BTH-080-02-L-D-A (695 Pcs), making it suitable for high-volume production requirements. Both parts carry identical electrical classification (EAR99) and harmonized tariff codes (HTSUS: 8536.69.4040), ensuring equivalent regulatory treatment in procurement and logistics operations.
