BSH-090-01-F-D-A-TR Equivalent & Substitute Parts

Part Overview

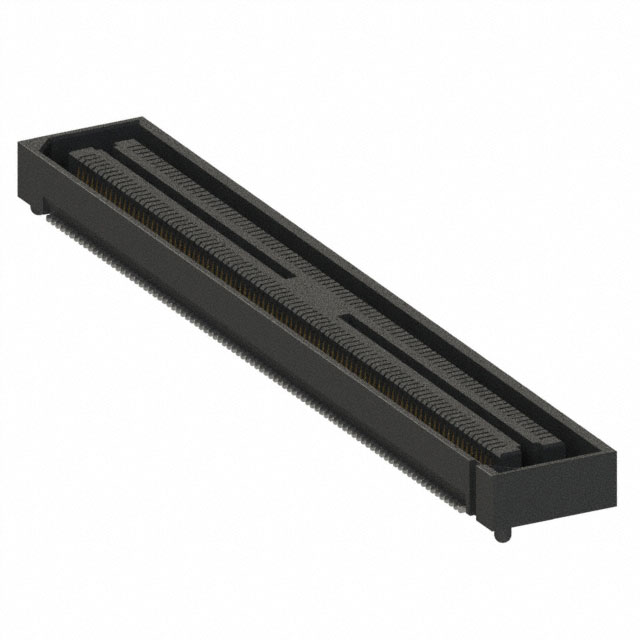

The BSH-090-01-F-D-A-TR is a 180-position rectangular connector socket manufactured by Samtec Inc., designed for surface mount applications with center strip contacts and gold plating. This connector is classified as Active product status and is ROHS3 compliant. Alternative packaging configurations of this connector may be required due to inventory availability, supply chain considerations, or specific procurement requirements for different packaging formats.

Substiute Parts

BSH-090-01-F-D-A-TR

Samtec Inc.In Stock: 1405BSH-090-01-F-D-A-TR Datasheet

Current PartRFQ

BSH-090-01-F-D-A

Samtec Inc.In Stock: 1005BSH-090-01-F-D-A Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the BSH-090-01-F-D-A-TR is determined by equivalence across the following critical parameters:

• Manufacturer and Series: Samtec Inc. BSH series
• Electrical specifications: 180 positions, 0.020" (0.50mm) pitch, 2 rows
• Mechanical specifications: Socket with center strip contacts, surface mount configuration
• Contact properties: Gold finish at 3.00µin thickness
• Physical dimensions: 5mm mated stacking height, 0.128" height above board
• Compliance: ROHS3 compliant, MSL 1 rating

The identified substitute differs only in packaging format, maintaining identical electrical and mechanical characteristics.

Parameter Comparison

Engineering Selection Recommendations

Both the BSH-090-01-F-D-A-TR and BSH-090-01-F-D-A are Active status products manufactured by Samtec Inc. and maintain identical electrical, mechanical, and compliance specifications. The sole distinction is packaging format: Cut Tape (CT) versus Tray. Selection between these parts should be based on procurement requirements, assembly process compatibility, and inventory management practices. Both parts satisfy ROHS3 compliance and MSL 1 requirements for unlimited moisture exposure.

Frequently Asked Questions (FAQ)

Q: Can BSH-090-01-F-D-A be used as a direct replacement for BSH-090-01-F-D-A-TR?

A: Yes. Both parts are electrically and mechanically identical. The difference is packaging only: BSH-090-01-F-D-A-TR uses Cut Tape (CT) packaging, while BSH-090-01-F-D-A uses Tray packaging. Connector performance and PCB assembly compatibility remain unchanged.

Q: What is the significance of the packaging difference?

A: Packaging affects handling, storage, and automated assembly processes. Cut Tape (CT) is suitable for pick-and-place equipment with tape feeders. Tray packaging is used for bulk handling and alternative assembly methods. Electrical and mechanical function is identical.

Q: Are both parts ROHS3 compliant?

A: Yes. Both BSH-090-01-F-D-A-TR and BSH-090-01-F-D-A are ROHS3 compliant with identical contact finish specifications and material composition.

Q: What does MSL 1 rating mean for these connectors?

A: MSL 1 indicates unlimited moisture sensitivity level, meaning these connectors do not require special moisture control during storage or handling prior to assembly.

Q: Are the physical dimensions identical between the two parts?

A: Yes. Both parts have identical mated stacking height (5mm) and height above board (0.128" / 3.25mm), ensuring PCB layout compatibility.
