BPJJ01 Equivalent & Substitute Parts

Part Overview

The BPJJ01 is an adapter connector manufactured by Switchcraft Inc. that converts Phono (RCA) Jack to Phono (RCA) Jack connections. This panel mount barrel connector is designed for applications requiring female-to-female RCA adapter functionality. The part is actively stocked with 814 units available as new original inventory. Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when packaging requirements differ.

Substiute Parts

BPJJ01

Switchcraft Inc.In Stock: 847BPJJ01 Datasheet

Current PartRFQ

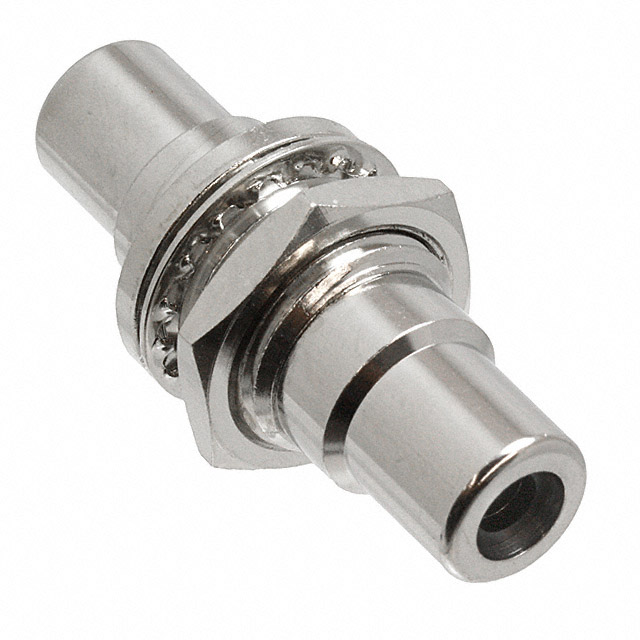

BPJJ01X

Switchcraft Inc.In Stock: 1729BPJJ01X Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the BPJJ01 is determined by strict adherence to the following parameters:

• Connector type: Phono (RCA) Jack to Phono (RCA) Jack
• Gender configuration: Female to Female
• Number of conductors: 2 Conductors
• Mounting type: Panel Mount with Bulkhead - Rear Side Nut feature
• Body material and finish: Brass with Nickel finish
• Contact material plating: Nickel
• Connector diameter specifications: 0.126" (3.20mm ID) and 0.327" (8.30mm OD)
• Regulatory compliance: ROHS3 Compliant

The BPJJ01X qualifies as a direct substitute within the same series, meeting all critical electrical and mechanical parameters. The primary difference is packaging configuration: BPJJ01X is supplied in bulk packaging, whereas BPJJ01 uses standard packaging.

Parameter Comparison

Engineering Selection Recommendations

Both BPJJ01 and BPJJ01X are Active product status components manufactured by Switchcraft Inc. and are ROHS3 Compliant. Selection between these parts should be based on packaging requirements and inventory availability:

• BPJJ01 is supplied in standard packaging and has 814 units in stock.
• BPJJ01X is supplied in bulk packaging with higher inventory availability at 1634 units and includes mounting hardware (1 Connector, 1 Nut, 1 Washer per unit).

Both parts meet identical electrical and mechanical specifications for panel mount RCA jack-to-jack adapter applications.

Frequently Asked Questions (FAQ)

Q: Can BPJJ01X be used as a direct replacement for BPJJ01?

A: Yes. BPJJ01X is a direct substitute within the same series. Both parts share identical connector type, gender configuration, conductor count, mounting specifications, material composition, and dimensional characteristics. The difference is packaging format and included hardware.

Q: What are the key parameters that determine substitution eligibility?

A: Substitution is valid when the following parameters match: Phono (RCA) Jack to Phono (RCA) Jack connector type, Female to Female gender, 2 Conductors, Panel Mount with Bulkhead - Rear Side Nut, Brass body with Nickel finish, Nickel contact plating, and 0.126" (3.20mm ID) / 0.327" (8.30mm OD) diameter specifications.

Q: What is included with BPJJ01X?

A: BPJJ01X includes 3 pieces per connector: 1 Connector, 1 Nut, and 1 Washer. This is the standard mounting hardware configuration for panel mount installation.

Q: Are both parts RoHS compliant?

A: Yes. Both BPJJ01 and BPJJ01X are ROHS3 Compliant.

Q: What is the difference between BPJJ01 and BPJJ01X?

A: The primary difference is packaging. BPJJ01 uses standard packaging, while BPJJ01X uses bulk packaging. BPJJ01X also has higher inventory availability. All electrical and mechanical specifications are identical.
