BL300-02-A Equivalent & Substitute Parts

Part Overview

The BL300-02-A is a 2-position solid state lighting connector manufactured by GCT, designed for board-to-cable/wire applications with poke-in wire termination. This surface mount, right-angle receptacle operates at 300V with a 4A current rating and accommodates 22-24 AWG wire at 0.094" (2.40mm) pitch. The product is currently obsolete, making identification of compatible substitute components essential for ongoing system support and new design implementations.

Substiute Parts

BL300-02-A

GCTIn Stock: 1057BL300-02-A Datasheet

Current PartRFQ

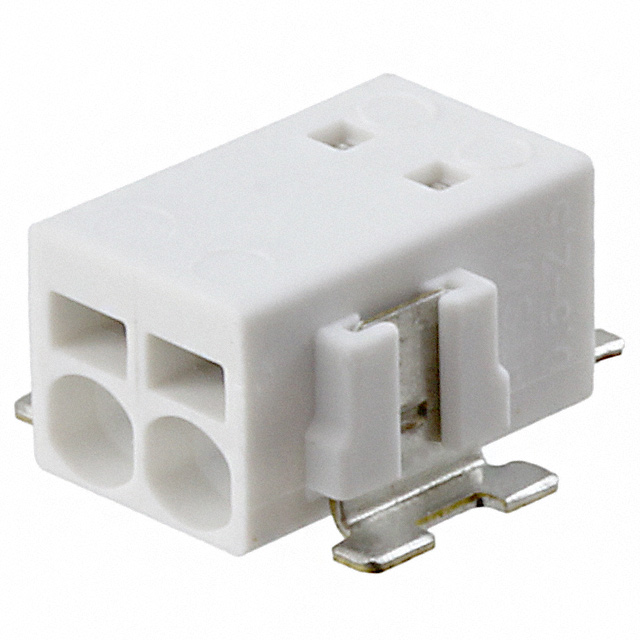

1814634

Phoenix ContactIn Stock: 40551814634 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the BL300-02-A is determined by the following critical parameters:

• Position Count: Must be 2-position to maintain circuit topology
• Connector Type: Must be receptacle with poke-in wire capability for mechanical compatibility
• Mounting Configuration: Must be surface mount, right-angle orientation
• Termination Method: Must be solder-based for PCB integration
• Pitch Tolerance: Acceptable range is 0.094" to 0.098" (2.40mm to 2.50mm) to accommodate standard wire spacing
• Wire Gauge Compatibility: Must support 22-24 AWG minimum; wider ranges are acceptable
• Electrical Ratings: Substitute must meet or exceed 300V voltage and 4A current requirements
• Compliance: Must maintain ROHS3 compliance and EAR99 classification

The Phoenix Contact 1814634 qualifies as a substitute based on these criteria, with the exception of voltage rating (150V vs. 300V), which represents a design constraint requiring application-level verification.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1814634 is an active product with current manufacturing status and full ROHS3 compliance, providing supply continuity for the obsolete BL300-02-A. Mechanical and electrical compatibility is established across position count, connector type, mounting configuration, and termination method.

The primary design consideration is the voltage rating differential: the BL300-02-A is rated 300V while the 1814634 is rated 150V. This 50% reduction in voltage specification requires circuit-level analysis to confirm acceptability within the target application. If the application operates below 150V, the substitute is directly compatible. If operation at or above 150V is required, the voltage rating mismatch disqualifies this substitute.

Secondary considerations include the 0.004" pitch variance (2.40mm vs. 2.50mm) and housing material difference (LCP vs. PA/Nylon). The pitch variance is within standard manufacturing tolerance for connector spacing. The material change from LCP to polyamide may affect thermal performance and chemical resistance depending on environmental exposure; this should be evaluated against specific application conditions.

The 1814634 provides superior current capacity (5A vs. 4A) and broader wire gauge acceptance (20-26 AWG vs. 22-24 AWG), both favorable characteristics for substitution.
