AT06-2S-SR01RED Equivalent & Substitute Parts

Part Overview

The AT06-2S-SR01RED is a 2-position rectangular connector plug housing manufactured by Amphenol Sine Systems Corp, part of the ATSeries™SR01 product line. This connector housing features female socket contacts with crimp termination, latch lock fastening, and sealed design rated for IP68 and IP69K protection. The housing is constructed from thermoplastic material with integrated strain relief and protective cap cover.

The AT06-2S-SR01RED is an active product with 936 units in current inventory stock. Substitute parts are necessary when specific color coding requirements differ from the red housing variant, while maintaining identical electrical and mechanical specifications across the connector family.

Key Parameters

Parameter	Value
Manufacturer Part Number	AT06-2S-SR01RED
Manufacturer	Amphenol Sine Systems Corp
Series	ATSeries™SR01
Category	Rectangular Connectors
Connector Type	Plug
Contact Type	Female Socket
Number of Positions	2
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Red
Features	Cap (Cover), IP68, IP69K, Sealed, Strain Relief
Insulation Material	Thermoplastic
Operating Temperature Range	-55°C ~ 125°C
RoHS Status	ROHS3 Compliant
REACH Status	REACH Unaffected
Product Status	Active
Packaging	Box

Substitute Part Grouping Explanation

Substitute parts for the AT06-2S-SR01RED are determined by equivalence across all electrical and mechanical parameters while allowing variation in housing color only. The substitution logic is based on the following criteria:

Substitution-Determining Parameters:

Connector Type: Plug
Contact Type: Female Socket
Number of Positions: 2
Number of Rows: 1
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Fastening Type: Latch Lock
Features: Cap (Cover), IP68, IP69K, Sealed, Strain Relief
Insulation Material: Thermoplastic
Operating Temperature Range: -55°C ~ 125°C
Base Product Number: AT06-2S
RoHS Status: ROHS3 Compliant
REACH Status: REACH Unaffected

Variable Parameter:

Color: Red, Blue, Gray, Orange, White, Yellow

All substitute parts maintain identical functional specifications and are interchangeable from an electrical and mechanical standpoint. Color differentiation serves application-specific identification and circuit tracing purposes only.

Parameter Comparison

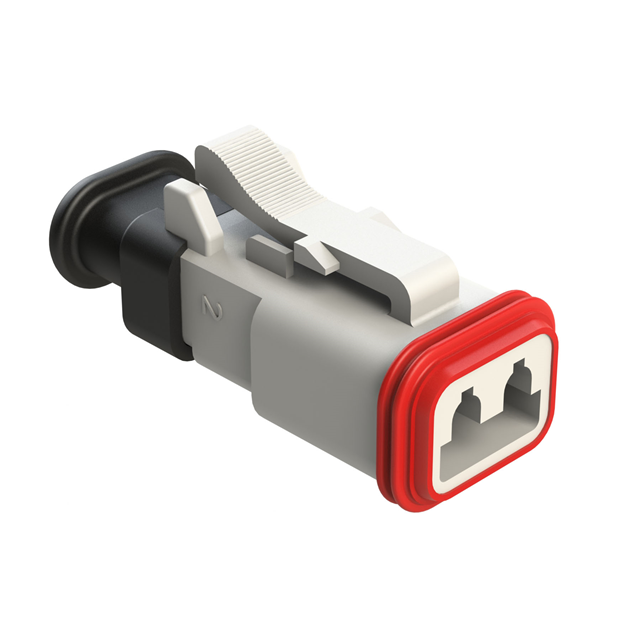

Parameter	AT06-2S-SR01RED	AT06-2S-SR01BLU	AT06-2S-SR01GRY	AT06-2S-SR01ORG	AT06-2S-SR01WHT	AT06-2S-SR01YEL
Manufacturer	Amphenol Sine Systems Corp	Amphenol Sine Systems Corp	Amphenol Sine Systems Corp	Amphenol Sine Systems Corp	Amphenol Sine Systems Corp	Amphenol Sine Systems Corp
Series	ATSeries™SR01	ATSeries™SR01	ATSeries™SR01	ATSeries™SR01	ATSeries™SR01	ATSeries™SR01
Connector Type	Plug	Plug	Plug	Plug	Plug	Plug
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	2	2	2	2	2	2
Number of Rows	1	1	1	1	1	1
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp	Crimp
Fastening Type	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock
Color	Red	Blue	Gray	Orange	White	Yellow
Features	Cap (Cover), IP68, IP69K, Sealed, Strain Relief	Cap (Cover), IP68, IP69K, Sealed, Strain Relief	Cap (Cover), IP68, IP69K, Sealed, Strain Relief	Cap (Cover), IP68, IP69K, Sealed, Strain Relief	Cap (Cover), IP68, IP69K, Sealed, Strain Relief	Cap (Cover), IP68, IP69K, Sealed, Strain Relief
Insulation Material	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic
Operating Temperature Range	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
REACH Status	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected
Product Status	Active	Active	Active	Active	Active	Active
Packaging	Box	Box	Box	Box	Box	Box
Inventory (Pcs)	936	1519	1601	1421	1482	1226

Engineering Selection Recommendations

All substitute parts listed are active products manufactured by Amphenol Sine Systems Corp and maintain full compliance with ROHS3 and REACH regulations. Selection between the AT06-2S-SR01RED and its color variants is determined by application-specific color coding requirements for circuit identification and tracing purposes.

The electrical and mechanical specifications are identical across all variants. The choice of substitute part depends solely on the color designation required by the system design or installation standard. All parts are packaged in boxes and are suitable for direct component substitution without modification to connector interfaces or termination procedures.

Current inventory levels support immediate availability across all color variants, with AT06-2S-SR01GRY maintaining the highest stock level at 1601 units and AT06-2S-SR01YEL at 1226 units.

Frequently Asked Questions (FAQ)

Q: Are all color variants of the AT06-2S-SR01 series electrically identical?

A: Yes. All color variants maintain identical electrical specifications, including contact type, number of positions, termination method, and operating temperature range. Color differentiation serves identification purposes only.

Q: Can I substitute AT06-2S-SR01RED with AT06-2S-SR01BLU in an existing assembly?

A: Yes. Both parts are mechanically and electrically interchangeable. The substitution is valid from a functional standpoint. Color selection should align with system design requirements or installation standards.

Q: What is the significance of the base product number AT06-2S?

A: The base product number AT06-2S identifies the core connector housing design. All color variants share this base designation, confirming their parametric equivalence. The suffix (SR01RED, SR01BLU, etc.) indicates the specific color variant.

Q: Are there any compatibility issues between different color variants in the same assembly?

A: No. All color variants are fully compatible with each other. They share identical mechanical interfaces, contact configurations, and fastening mechanisms.

Q: What does the IP68 and IP69K rating indicate?

A: IP68 indicates protection against dust ingress and temporary immersion in water. IP69K indicates protection against high-pressure water jets. Both ratings confirm sealed connector design suitable for harsh environmental conditions.

Q: Is contact inclusion consistent across all color variants?

A: The AT06-2S-SR01GRY variant is specified as "Contacts Not Included." Verify contact inclusion status for each specific part number when ordering to ensure complete connector assemblies.

Q: What is the operating temperature range for these connectors?

A: All variants operate across -55°C to 125°C, suitable for industrial and automotive applications requiring extended temperature performance.

Q: Are these connectors suitable for outdoor applications?

A: Yes. The IP68 and IP69K ratings, combined with sealed design and strain relief features, make these connectors suitable for outdoor and harsh environmental applications.
