AM-RT14-433PSO RF Transmitter Module - Equivalent & Substitute Parts

Part Overview

The AM-RT14-433PSO is an RF transmitter module operating at 433MHz with 12dBm output power, designed for general-purpose wireless transmission applications. The module features AM modulation and operates across a 2V to 9V supply voltage range with low transmitting current of 8mA.

This part is currently listed as obsolete, making identification of suitable substitute components essential for ongoing design support, production continuity, and system maintenance. The availability of active equivalent parts ensures design flexibility and supply chain reliability.

Substiute Parts

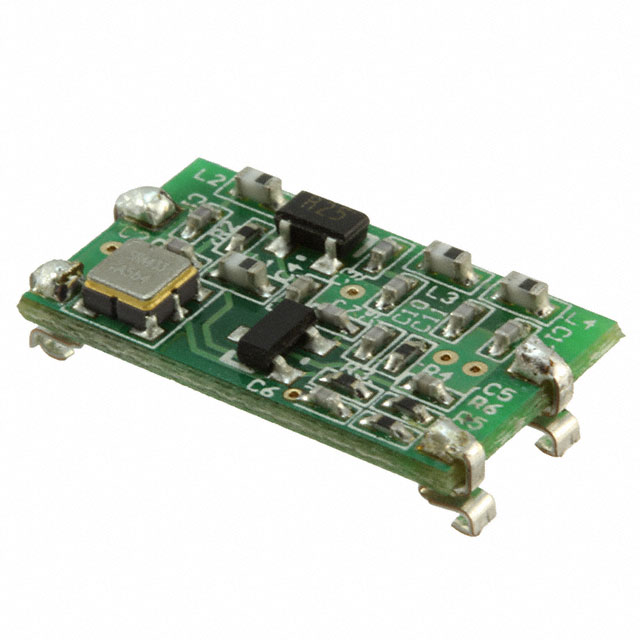

AM-RT14-433PSO

RF SolutionsIn Stock: 729AM-RT14-433PSO Datasheet

Current PartRFQ

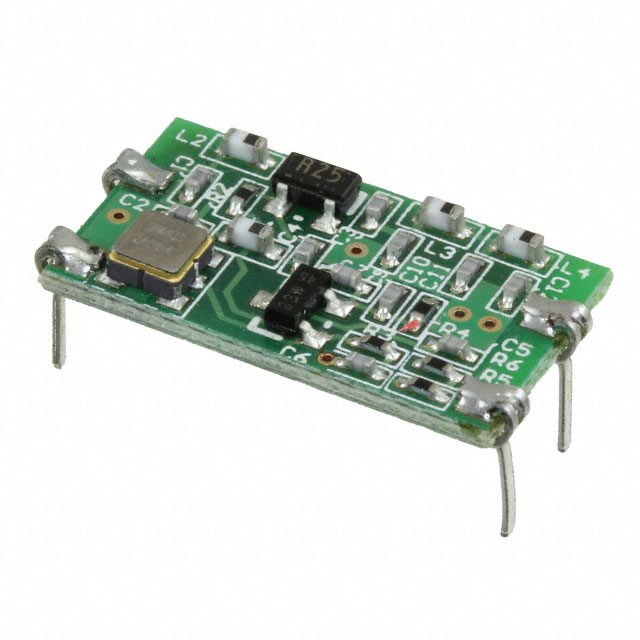

AM-RT14-433P

RF SolutionsIn Stock: 1100AM-RT14-433P Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AM-RT14-433PSO is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Frequency: 433MHz
• Modulation Protocol: AM
• Power Output: 12dBm
• Transmitting Current: 8mA
• Supply Voltage Range: 2V ~ 9V
• Operating Temperature Range: -25°C ~ 80°C
• Package Classification: Module
• RoHS Compliance: ROHS3 Compliant

The AM-RT14-433P qualifies as a direct substitute based on identical electrical specifications across all critical parameters. Both parts share the same base product number (AM-RT14), confirming functional equivalence. The primary difference lies in mounting type (Through Hole versus Surface Mount) and product status (Active versus Obsolete).

Parameter Comparison

Engineering Selection Recommendations

For AM-RT14-433PSO Replacement:

The AM-RT14-433P is the direct functional equivalent and primary substitute for the obsolete AM-RT14-433PSO. Both parts maintain identical electrical performance specifications, including frequency, modulation, output power, current consumption, and voltage operating range.

Compliance Status: Both parts carry ROHS3 compliance certification and share identical ECCN (EAR99) and HTSUS (8517.62.0090) classifications, ensuring regulatory equivalence for procurement and export purposes.

Mounting Consideration: The primary design-level difference is the mounting type. The AM-RT14-433PSO uses surface mount technology, while the AM-RT14-433P employs through-hole mounting. This distinction requires PCB layout modification if transitioning between these variants. Verify your application's PCB design supports the through-hole mounting configuration before selection.

Product Status Advantage: The AM-RT14-433P maintains active product status with RF Solutions, providing superior long-term availability and supply chain stability compared to the obsolete AM-RT14-433PSO.

Frequently Asked Questions (FAQ)

Q: Can the AM-RT14-433P directly replace the AM-RT14-433PSO in my design?

A: Electrical substitution is complete. Both parts deliver identical 433MHz AM transmission at 12dBm output with 8mA transmitting current across the 2V to 9V supply range. However, the mounting type differs: AM-RT14-433PSO is surface mount while AM-RT14-433P is through-hole. PCB layout modification is required if your current design uses surface mount footprints.

Q: Are there any compliance or regulatory differences between these parts?

A: No. Both parts carry ROHS3 compliance certification and share identical ECCN (EAR99) and HTSUS (8517.62.0090) classifications. Regulatory and compliance requirements are equivalent.

Q: Why is the AM-RT14-433PSO listed as obsolete?

A: Product obsolescence is determined by the manufacturer. The AM-RT14-433P, sharing the same base product number (AM-RT14) and maintaining active status, represents the current production equivalent.

Q: What is the significance of the different packaging specifications (Module vs. Bulk)?

A: Packaging designation refers to supplier delivery format. The AM-RT14-433PSO is supplied in module packaging, while the AM-RT14-433P is supplied in bulk packaging. This affects order quantities and handling but does not impact electrical performance or functional compatibility.

Q: Are the moisture sensitivity levels different between these parts?

A: Yes. The AM-RT14-433PSO lists MSL as Not Applicable, while the AM-RT14-433P specifies MSL 1 (Unlimited). This indicates the AM-RT14-433P has no moisture sensitivity restrictions during storage and handling.

Q: Can I use the AM-RT14-433P in applications originally designed for the AM-RT14-433PSO?

A: Electrical functionality is fully compatible. Mechanical integration requires PCB redesign to accommodate through-hole mounting instead of surface mount. Verify your application's physical constraints and PCB layout capabilities support this mounting transition.
