AHES4293 General Purpose Relay 3PST 35A 48VDC

Part Overview

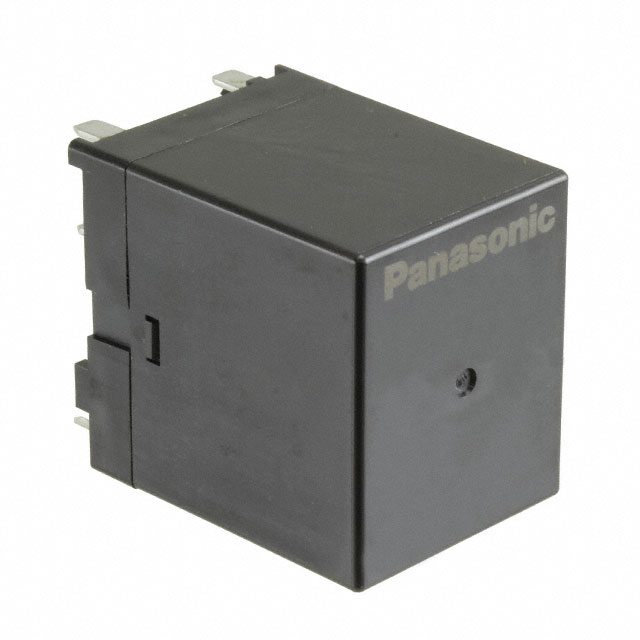

The AHES4293 is a general purpose relay manufactured by Panasonic Electric Works, configured as a 3PST relay with 2 Form A and 1 Form B contact arrangement. The relay operates on a 48VDC coil with a contact rating of 35A at 277VAC nominal switching voltage. This through-hole mounted component is designed for applications requiring sealed, flux-protected switching in industrial and control circuits. The part is currently active in production with RoHS compliance and unlimited moisture sensitivity rating (MSL 1).

Equivalent substitute parts may be required due to inventory availability, supply chain considerations, or design revision updates while maintaining identical electrical and mechanical performance characteristics.

Substiute Parts

AHES4293

Panasonic Electric WorksIn Stock: 1206AHES4293 Datasheet

Current PartRFQ

AHES4193

Panasonic Electric WorksIn Stock: 1224AHES4193 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

The AHES4193 qualifies as a parametric equivalent to the AHES4293 based on strict alignment of all critical electrical and mechanical parameters. Substitution eligibility is determined by the following key parameters:

• Coil voltage specification (48VDC)
• Contact form configuration (3PST-2NO/1NC)
• Contact current rating (35A)
• Switching voltage rating (277VAC nominal)
• Mounting type (Through Hole)
• Termination style (PC Pin)
• Operating temperature range (-40°C to 55°C)
• Contact material composition (Silver Tin Oxide)
• Seal rating (Sealed - Flux Protection)
• Coil insulation class (Class F)
• RoHS compliance status

Both parts belong to the Panasonic Electric Works HE-S relay series and maintain identical functional specifications, enabling direct substitution in circuit designs without modification to PCB layouts or control logic.

Parameter Comparison

Engineering Selection Recommendations

Both the AHES4293 and AHES4193 are active production parts from Panasonic Electric Works with full RoHS compliance and identical electrical performance specifications. Selection between these parts may be based on inventory availability or supply chain logistics, as they are functionally interchangeable. Both parts carry MSL 1 rating, indicating no moisture sensitivity restrictions during storage or handling. The sealed, flux-protected design of both relays ensures compatibility with standard PCB assembly processes without additional environmental controls.

Frequently Asked Questions (FAQ)

Q: Can AHES4193 be used as a direct replacement for AHES4293 in existing designs?

A: Yes. Both parts are parametrically equivalent across all electrical and mechanical specifications, including coil voltage, contact configuration, current rating, switching voltage, operating temperature range, and termination style. No circuit modifications or PCB layout changes are required.

Q: Are there any differences in packaging or handling between these parts?

A: Both parts are supplied in tray packaging with MSL 1 rating. No special moisture control measures are required during storage or assembly.

Q: What are the critical parameters that define substitution eligibility for this relay?

A: Substitution is determined by matching coil voltage (48VDC), contact form (3PST-2NO/1NC), contact current rating (35A), switching voltage (277VAC nominal), mounting type (Through Hole), termination style (PC Pin), operating temperature range (-40°C to 55°C), and seal rating (Sealed - Flux Protection).

Q: Do both parts meet the same compliance standards?

A: Yes. Both AHES4293 and AHES4193 are RoHS compliant with Class F coil insulation and carry identical ECCN and HTSUS classifications.

Q: What is the coil resistance specification for these relays?

A: Both parts have a coil resistance of 1.22 kOhms at 48VDC, with a coil current of 39 mA and must-operate voltage of 36VDC.
