AAA3FZPKG Equivalent & Substitute Parts

Part Overview

The AAA3FZPKG is a 3-position circular connector plug with female sockets, manufactured by Switchcraft Inc. as part of the Q-G® AAA series. This connector features solder cup termination, latch lock fastening, and shielded construction suitable for audio, industrial, instrumentation, and medical applications. The part is currently active in production with 958 units in stock. Substitute parts are identified to provide alternative packaging or inventory options while maintaining identical electrical and mechanical specifications.

Substiute Parts

AAA3FZPKG

Switchcraft Inc.In Stock: 1020AAA3FZPKG Datasheet

Current PartRFQ

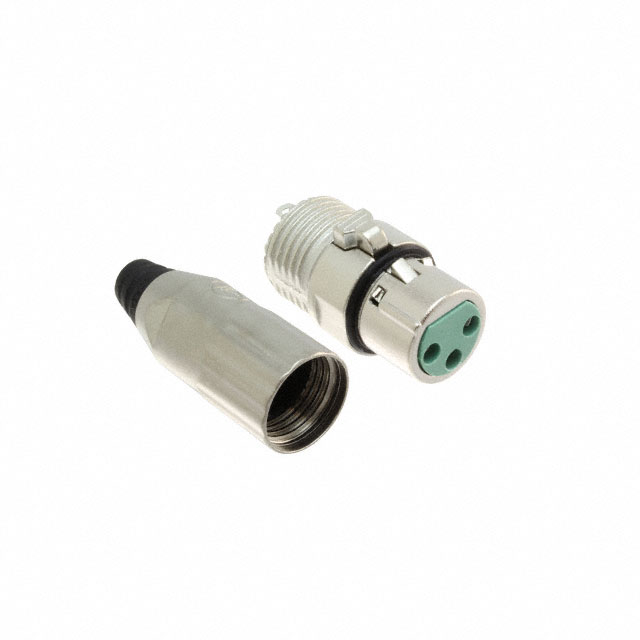

AAA3FZ

Switchcraft Inc.In Stock: 1423AAA3FZ Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the AAA3FZPKG is determined by strict equivalence across the following critical parameters:

• Connector type and gender (Plug, Female Sockets)
• Number of positions (3)
• Shell size designation (XLR)
• Termination method (Solder Cup)
• Current and voltage ratings (15A, 125VAC)
• Shielding configuration (Shielded)
• Material specifications (Zinc Alloy shell, Nickel finish, Copper Alloy contacts, Silver contact finish)
• Fastening type (Latch Lock)
• Orientation (Keyed)
• Cable opening range (0.100" ~ 0.220")

The identified substitute part AAA3FZ matches all electrical and mechanical parameters. The primary difference is packaging configuration: AAA3FZPKG is supplied in individual packaging, while AAA3FZ is supplied in bulk packaging. Both parts are manufactured by Switchcraft Inc., carry active product status, and maintain identical compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

Both AAA3FZPKG and AAA3FZ are active production parts manufactured by Switchcraft Inc. with identical electrical performance, mechanical compatibility, and regulatory compliance. Selection between these parts is determined by packaging and inventory requirements rather than technical specifications.

AAA3FZPKG is appropriate for applications requiring individual unit packaging. AAA3FZ is appropriate for high-volume applications or when bulk packaging is acceptable. Both parts satisfy ROHS3 compliance, REACH unaffected status, and EAR99 export classification. Current inventory levels support both options: 958 units for AAA3FZPKG and 1326 units for AAA3FZ.

Frequently Asked Questions (FAQ)

Q: Can AAA3FZ be used as a direct replacement for AAA3FZPKG?

A: Yes. Both parts are electrically and mechanically identical. The difference is packaging configuration only. AAA3FZPKG uses individual packaging while AAA3FZ uses bulk packaging. All electrical ratings, connector geometry, termination method, and material specifications are identical.

Q: What determines compatibility between these connector parts?

A: Compatibility is determined by matching connector type (Plug, Female Sockets), number of positions (3), shell size (XLR), termination method (Solder Cup), current rating (15A), voltage rating (125VAC), cable opening range (0.100" ~ 0.220"), and shielding configuration (Shielded). Both parts meet these criteria.

Q: Are there any compliance differences between AAA3FZPKG and AAA3FZ?

A: No. Both parts carry identical compliance certifications: ROHS3 Compliant, REACH Unaffected, and EAR99 export classification. Regulatory status is equivalent.

Q: Which part should be selected for high-volume production?

A: AAA3FZ in bulk packaging is suitable for high-volume applications. Current inventory of 1326 units supports larger production runs compared to AAA3FZPKG inventory of 958 units.

Q: Are the cable opening specifications identical?

A: Yes. Both parts accept cables with opening dimensions of 0.100" to 0.220" (2.54mm to 5.59mm), ensuring identical cable compatibility.
