929852-01-05-RB Rectangular Connector Equivalent & Substitute Parts

Part Overview

The 3M 929852-01-05-RB is a 10-position receptacle connector with 0.100" (2.54mm) pitch, designed for board-to-board applications with through-hole solder termination. This connector features gold-plated mating contacts, push-pull fastening, and operates across -40°C to 105°C. The part is currently active in production with 1082 units in stock.

Equivalent and substitute parts are identified based on matching core electrical and mechanical parameters: 10-position configuration, 0.100" pitch, 2-row layout, through-hole mounting, push-pull fastening, and gold mating contact finish. Substitutes must maintain compatibility with the original connector's form factor and electrical ratings.

Substiute Parts

929852-01-05-RB

3MIn Stock: 1103929852-01-05-RB Datasheet

Current PartRFQ

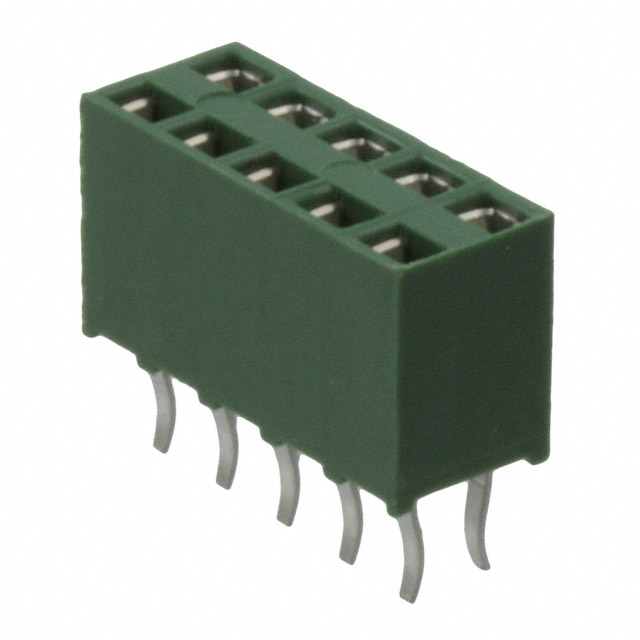

215307-5

TE Connectivity AMP ConnectorsIn Stock: 3591215307-5 Datasheet

MFR RecommendedRFQ

215311-5

TE Connectivity AMP ConnectorsIn Stock: 832215311-5 Datasheet

MFR RecommendedRFQ

68683-305

Amphenol ICC (FCI)In Stock: 113368683-305 Datasheet

MFR RecommendedRFQ

803-93-010-10-001000

Mill-Max Manufacturing Corp.In Stock: 882803-93-010-10-001000 Datasheet

MFR RecommendedRFQ

BCS-105-F-D-TE

Samtec Inc.In Stock: 844BCS-105-F-D-TE Datasheet

MFR RecommendedRFQ

ESD-105-G-03

Samtec Inc.In Stock: 1036ESD-105-G-03 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts are grouped based on strict adherence to the following critical parameters that determine functional interchangeability:

Primary Matching Criteria:

• 10-position receptacle connector
• 0.100" (2.54mm) mating pitch
• 2-row configuration with 0.100" row spacing
• Through-hole solder termination
• Push-pull fastening mechanism
• Gold-plated mating contacts
• Board-to-board style

Secondary Compatibility Factors:

• Insulation height and contact length variations within acceptable mechanical envelope
• Contact material composition (copper alloy, phosphor bronze, beryllium copper)
• Operating temperature range
• Voltage and current ratings
• Flammability and RoHS compliance status

All identified substitutes meet the primary matching criteria. Variations in secondary factors are noted to enable informed selection based on specific application requirements.

Parameter Comparison

Engineering Selection Recommendations

Active Production Parts (Recommended for New Designs):

TE Connectivity 215307-5 and 215311-5 are active production alternatives with full compatibility to the 929852-01-05-RB. Both maintain the 10-position, 0.100" pitch configuration and push-pull fastening. TE parts feature kinked pin termination for enhanced mechanical retention. 215307-5 is RoHS Compliant with 3500 units in stock. 215311-5 is ROHS3 Compliant with 729 units available. Both support the required board-to-board mounting style.

Mill-Max 803-93-010-10-001000 is an active production substitute with ROHS3 compliance and 815 units in stock. This part provides higher current rating (4.5A) and extended operating temperature range (-55°C to 125°C) compared to the original specification.

Samtec BCS-105-F-D-TE is an active production alternative with ROHS3 compliance, 760 units in stock, and current rating of 4.6A per contact. This part operates across -55°C to 125°C and features liquid crystal polymer insulation material.

Samtec ESD-105-G-03 is an active production elevated socket connector with ROHS3 compliance and 991 units in stock. This part features extended contact length (0.153") and operates across -55°C to 125°C.

Obsolete Part (Not Recommended for New Designs):

Amphenol ICC 68683-305 is marked as obsolete and carries RoHS non-compliant status. This part is not suitable for new design implementations despite meeting the core mechanical and electrical parameters.

Compliance Considerations:

For applications requiring RoHS compliance, select from 215307-5, 215311-5, 803-93-010-10-001000, BCS-105-F-D-TE, or ESD-105-G-03. The original 929852-01-05-RB is RoHS Compliant. Amphenol 68683-305 does not meet RoHS requirements.

Frequently Asked Questions (FAQ)

Q: What are the critical parameters that determine if a part can substitute for the 929852-01-05-RB?

A: The following parameters must match: 10-position receptacle configuration, 0.100" (2.54mm) mating pitch, 2-row layout with 0.100" row spacing, through-hole solder termination, push-pull fastening, and gold-plated mating contacts. These parameters ensure mechanical and electrical compatibility with mating connectors and PCB layouts designed for the original part.

Q: Can I use the Amphenol 68683-305 as a substitute?

A: The Amphenol 68683-305 meets the core mechanical and electrical parameters but is marked as obsolete and does not comply with RoHS requirements. For new designs and applications requiring RoHS compliance, select from the active production alternatives: TE 215307-5, TE 215311-5, Mill-Max 803-93-010-10-001000, Samtec BCS-105-F-D-TE, or Samtec ESD-105-G-03.

Q: What is the difference between the TE Connectivity 215307-5 and 215311-5?

A: Both parts are 10-position, 0.100" pitch receptacles with identical mating specifications. The primary differences are insulation material (215307-5 uses polyester glass-filled material; 215311-5 uses polybutylene terephthalate glass-filled), insulation color options (215307-5 offers black or green; 215311-5 is green only), and RoHS status (215307-5 is RoHS Compliant; 215311-5 is ROHS3 Compliant). Both support push-pull fastening and through-hole solder termination.

Q: How do the Samtec alternatives differ from the original 929852-01-05-RB?

A: Samtec BCS-105-F-D-TE features liquid crystal polymer insulation and provides higher current rating (4.6A per contact) with extended operating temperature range (-55°C to 125°C). Samtec ESD-105-G-03 is an elevated socket connector with extended contact length (0.153") and beryllium copper contacts with gold finish on both mating and post surfaces. Both Samtec parts maintain the 10-position, 0.100" pitch configuration and push-pull fastening required for compatibility.

Q: What packaging options are available for these substitutes?

A: The 929852-01-05-RB is supplied in bulk packaging. Substitute parts are available in various packaging formats: TE 215307-5 in tray (3500 units in stock), Mill-Max 803-93-010-10-001000 in tube (815 units in stock), Samtec BCS-105-F-D-TE in tube (760 units in stock), and Samtec ESD-105-G-03 in bulk (991 units in stock). Packaging selection should be based on assembly process requirements and inventory management practices.

Q: Are all substitute parts RoHS compliant?

A: Five of the six identified substitutes are RoHS compliant or ROHS3 compliant: TE 215307-5 (RoHS Compliant), TE 215311-5 (ROHS3 Compliant), Mill-Max 803-93-010-10-001000 (ROHS3 Compliant), Samtec BCS-105-F-D-TE (ROHS3 Compliant), and Samtec ESD-105-G-03 (ROHS3 Compliant). Amphenol 68683-305 is RoHS non-compliant and should not be used in applications requiring RoHS compliance.

Q: What is the voltage rating difference between the original part and substitutes?

A: The 929852-01-05-RB is rated for 1500V. Amphenol 68683-305 is rated for 1000V. Samtec BCS-105-F-D-TE is rated for 475VAC. TE 215307-5, TE 215311-5, Mill-Max 803-93-010-10-001000, and Samtec ESD-105-G-03 do not specify voltage ratings in the provided data. For applications requiring the full 1500V rating, verify substitute part specifications with manufacturers before implementation.
