Amphenol ICC 92652-004LF Rectangular Connector Housing — Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 92652-004LF is an 8-position rectangular connector receptacle housing with 0.100" (2.54mm) pitch, designed for crimp contact termination in free-hanging inline applications. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance requirements. Active alternatives from Amphenol ICC, TE Connectivity, and Molex provide functional equivalence while offering improved product status and compliance certifications.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	8
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict equivalence across the following parameters: connector type (receptacle), contact type (female socket), number of positions (8), pitch (0.100"/2.54mm), number of rows (2), row spacing (0.100"/2.54mm), mounting type (free hanging in-line), contact termination (crimp), and MSL rating (1). All listed substitute parts meet these core electrical and mechanical requirements. Color variations and insulation material differences do not affect functional interchangeability in standard applications. Fastening type variations (detent lock vs. none) represent design enhancements that do not prevent substitution.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Positions	Pitch	Rows	Color	Product Status	RoHS Status	Operating Temperature
92652-004LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	8	0.100" (2.54mm)	2	Black	Obsolete	Not Specified	Not Specified
65043-033LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	8	0.100" (2.54mm)	2	Black	Active	RoHS Compliant	-40°C ~ 105°C
1-102387-4	TE Connectivity AMP Connectors	AMPMODU Mod IV	8	0.100" (2.54mm)	2	Black	Active	ROHS3 Compliant	-65°C ~ 105°C
87631-4	TE Connectivity AMP Connectors	AMPMODU Mod IV	8	0.100" (2.54mm)	2	Black	Active	ROHS3 Compliant	-65°C ~ 105°C

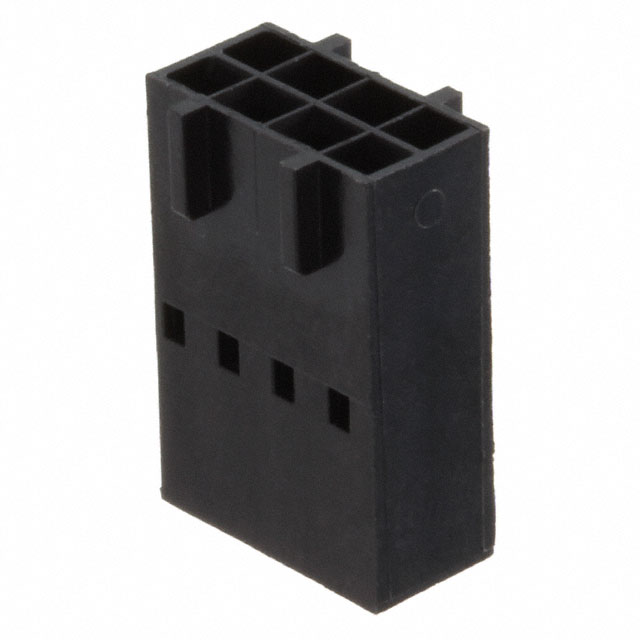

0022552083	Molex	SL 70450	8	0.100" (2.54mm)	2	Black	Active	ROHS3 Compliant	-40°C ~ 105°C
0901430008	Molex	C-Grid III 90143	8	0.100" (2.54mm)	2	Black	Active	ROHS3 Compliant	-55°C ~ 105°C

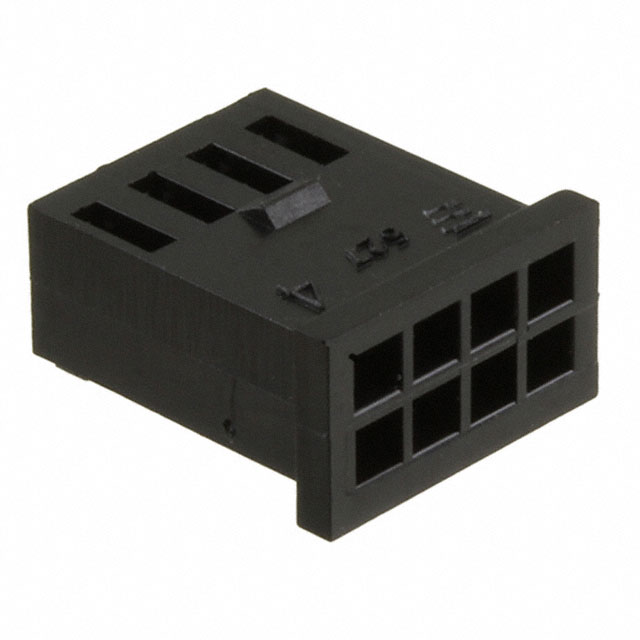

280365	TE Connectivity AMP Connectors	AMPMODU Mod II	8	0.100" (2.54mm)	2	Black	Active	RoHS Compliant	Not Specified
87456-3	TE Connectivity AMP Connectors	AMPMODU Mod IV	8	0.100" (2.54mm)	2	Black	Active	RoHS Compliant	-65°C ~ 105°C
87456-4	TE Connectivity AMP Connectors	AMPMODU Mod IV	8	0.100" (2.54mm)	2	Black	Active	ROHS3 Compliant	-65°C ~ 105°C

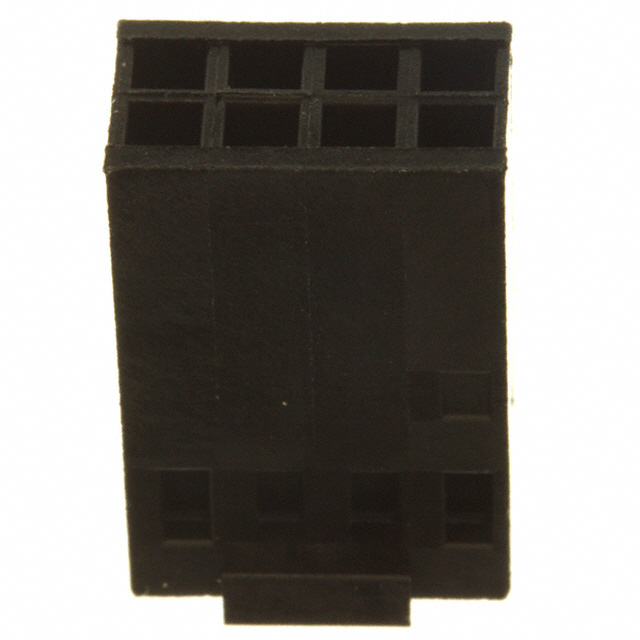

87977-2	TE Connectivity AMP Connectors	AMPMODU Mod IV	8	0.100" (2.54mm)	2	Black	Active	RoHS Compliant	-65°C ~ 105°C

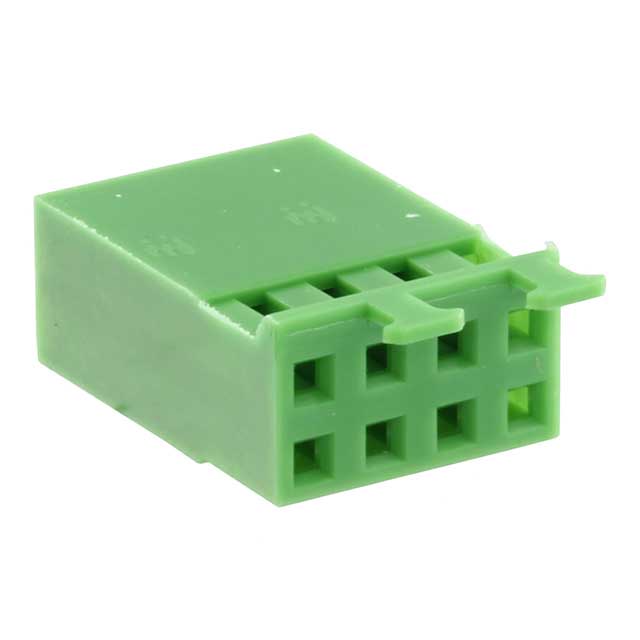

925367-4	TE Connectivity AMP Connectors	AMPMODU Mod IV	8	0.100" (2.54mm)	2	Green	Active	RoHS Compliant	-65°C ~ 105°C

Engineering Selection Recommendations

All listed substitute parts satisfy the core electrical and mechanical parameters required for direct replacement of the 92652-004LF. Selection should prioritize active product status and current compliance certifications.

For applications requiring RoHS3 compliance, select from: 1-102387-4, 87631-4, 0022552083, 0901430008, or 87456-4. These parts carry ROHS3 Compliant certification and are actively manufactured.

For applications with extended low-temperature requirements below -40°C, TE Connectivity AMPMODU Mod IV series parts (1-102387-4, 87631-4, 87456-3, 87456-4, 87977-2, 925367-4) support -65°C minimum operating temperature, compared to -40°C for Amphenol ICC 65043-033LF and Molex 0022552083.

The Amphenol ICC 65043-033LF provides the closest functional match within the same manufacturer family (Mini-PV™, Basics+ series) and is actively produced with RoHS compliance.

For highest inventory availability, Molex 0901430008 (13,901 pcs) and TE Connectivity 87456-4 (9,909 pcs) offer substantial stock levels.

Frequently Asked Questions (FAQ)

Q: Can 92652-004LF be directly replaced with any of these substitute parts?

A: Yes. All listed parts are functionally equivalent across the critical parameters: 8-position receptacle housing, 0.100" (2.54mm) pitch, 2-row configuration, crimp termination, and free-hanging inline mounting. Physical dimensions and contact compatibility are identical.

Q: Does color difference affect substitution?

A: No. The 925367-4 (green) is functionally equivalent to the black-housing alternatives. Color selection is application-specific and does not impact electrical or mechanical performance.

Q: What is the difference between ROHS3 and RoHS Compliant certifications?

A: ROHS3 Compliant indicates compliance with the most current RoHS directive revision. RoHS Compliant indicates compliance with earlier RoHS standards. Both certifications confirm restriction of hazardous substances. ROHS3 parts are preferred for new designs.

Q: Are there compatibility concerns with different insulation materials?

A: No. Insulation material variations (polyamide, thermoplastic, polyphenylene oxide) do not affect interchangeability. These materials are selected for specific environmental or thermal performance characteristics but do not alter contact geometry or electrical function.

Q: Which substitute offers the widest operating temperature range?

A: TE Connectivity AMPMODU Mod IV series parts (1-102387-4, 87631-4, 87456-3, 87456-4, 87977-2, 925367-4) support -65°C to 105°C, providing the broadest low-temperature capability.

Q: Is the detent lock feature on 87631-4 a compatibility issue?

A: No. The detent lock on 87631-4 is a mechanical enhancement that does not prevent substitution. It provides additional retention but does not alter the core housing geometry or contact interface.

Q: What packaging options are available?

A: All substitute parts are supplied in bulk packaging, suitable for production assembly and component procurement workflows.
