Equivalent & Substitute Parts for Honeywell 91MCE29-PBQ

Part Overview

The Honeywell 91MCE29-PBQ is a snap action DPST switch rated for 6A at 120V AC with panel mount configuration and IP67 ingress protection. This component features a cross roller plunger actuator and connector termination style, designed for applications requiring momentary on/off switching functionality.

The 91MCE29-PBQ carries an obsolete product status. Identifying equivalent substitute parts ensures design continuity and supply chain reliability for applications currently utilizing this component.

Key Parameters

Parameter	Value
Circuit Configuration	DPST-NO/NC
Switch Function	On-Mom, Off-Mom
Current Rating (AC)	6A
Current Rating (DC)	550mA
Voltage Rating (AC)	120V
Voltage Rating (DC)	125V
Actuator Type	Cross Roller Plunger
Mounting Type	Panel Mount
Ingress Protection	IP67
Operating Temperature Range	-25°C to 85°C
Electrical Life	500,000 Cycles
Mechanical Life	5,000,000 Cycles
RoHS Compliance	Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the 91MCE29-PBQ is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

Circuit configuration: DPST-NO/NC
Switch function: On-Mom, Off-Mom
Current rating: 6A (AC) and 550mA (DC)
Voltage rating: 120V (AC) and 125V (DC)
Actuator type: Cross Roller Plunger
Mounting type: Panel Mount
Ingress protection: IP67

Acceptable Variation Parameters:

Termination style (connector vs. cable leads)
Operating temperature range (provided minimum is -25°C and maximum does not fall below 85°C requirement)
Mechanical life (provided value meets or exceeds 5,000,000 cycles)
Packaging format

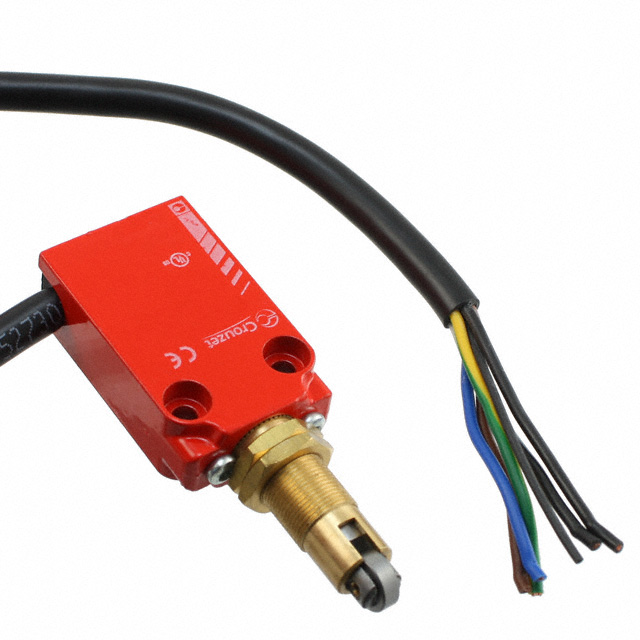

The Crouzet 83876101 satisfies all mandatory matching parameters and operates within acceptable variation limits for termination style and mechanical life specifications.

Parameter Comparison

Parameter	Honeywell 91MCE29-PBQ	Crouzet 83876101	Match Status
Manufacturer	Honeywell Sensing and Productivity Solutions	Crouzet	Different Manufacturer
Series	91MCE	83870	Different Series
Product Status	Obsolete	Active	Active Status Available
Circuit Configuration	DPST-NO/NC	DPST-NO/NC	Equivalent
Switch Function	On-Mom, Off-Mom	On-Mom, Off-Mom	Equivalent
Current Rating (AC)	6A	6A	Equivalent
Current Rating (DC)	550mA	550mA	Equivalent
Voltage Rating (AC)	120V	120V	Equivalent
Voltage Rating (DC)	125V	125V	Equivalent
Actuator Type	Cross Roller Plunger	Cross Roller Plunger	Equivalent
Mounting Type	Panel Mount	Panel Mount	Equivalent
Termination Style	Connector	Cable Leads	Different (Acceptable Variation)
Ingress Protection	IP67	IP67	Equivalent
Operating Force	1122gf	1020gf	Within Tolerance
Operating Temperature Range	-25°C to 85°C	-25°C to 70°C	Reduced Upper Limit
Electrical Life	500,000 Cycles	500,000 Cycles	Equivalent
Mechanical Life	5,000,000 Cycles	10,000,000 Cycles	Exceeds Requirement
RoHS Compliance	Compliant	Compliant	Equivalent
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	Equivalent

Engineering Selection Recommendations

The Crouzet 83876101 functions as an electrical and mechanical equivalent to the obsolete Honeywell 91MCE29-PBQ across all critical switching parameters. Both components share identical circuit configuration, current and voltage ratings, actuator type, mounting configuration, and ingress protection rating.

Key Considerations:

The Crouzet 83876101 carries active product status, ensuring ongoing availability and supply chain support. Both components maintain RoHS compliance and identical moisture sensitivity classification.

Termination Difference: The 91MCE29-PBQ uses connector termination, while the 83876101 provides cable leads with 1m length. This difference requires mechanical integration assessment during design transition.

Temperature Operating Range: The 83876101 operates to 70°C maximum, compared to 85°C for the original component. Applications requiring operation above 70°C require thermal performance verification.

Mechanical Life Enhancement: The 83876101 provides 10,000,000 mechanical cycles versus 5,000,000 cycles for the original part, representing improved durability for high-cycle applications.

Frequently Asked Questions (FAQ)

Q: Can the Crouzet 83876101 directly replace the Honeywell 91MCE29-PBQ in existing designs?

A: Electrical substitution is valid. The components share identical DPST-NO/NC circuit configuration, 6A/120V AC ratings, cross roller plunger actuation, and IP67 protection. Mechanical integration requires assessment due to termination style difference (connector vs. cable leads).

Q: What is the significance of the operating temperature range difference?

A: The 91MCE29-PBQ operates from -25°C to 85°C, while the 83876101 operates from -25°C to 70°C. Applications requiring sustained operation above 70°C must verify thermal performance with the substitute component or identify alternative solutions.

Q: Does the cable lead termination on the Crouzet part affect electrical performance?

A: No. Termination style does not affect electrical switching characteristics. Both connector and cable lead terminations deliver equivalent electrical performance. Integration methodology differs based on panel mount requirements and wiring configuration.

Q: Are both components RoHS compliant?

A: Yes. Both the Honeywell 91MCE29-PBQ and Crouzet 83876101 carry RoHS compliance certification and identical Moisture Sensitivity Level 1 classification.

Q: What does the improved mechanical life rating mean for the Crouzet part?

A: The 83876101 provides 10,000,000 mechanical cycles compared to 5,000,000 for the original component. This indicates extended component durability for applications involving frequent actuator cycling.

Q: Is the 1m cable length on the Crouzet part a fixed specification?

A: Yes. The 83876101 includes 1m cable leads as a standard feature. Custom cable lengths require sourcing alternative components or cable modification.
