Amphenol ICC 89014-912 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 89014-912 is a 60-position backplane connector receptacle with female sockets, designed for board edge mounting in through-hole applications. This connector features a right-angle configuration with a 0.079" (2.00mm) pitch across 5 rows, utilizing solder termination. The part is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and component procurement.

Substiute Parts

89014-912

Amphenol ICC (FCI)In Stock: 110889014-912 Datasheet

Current PartRFQ

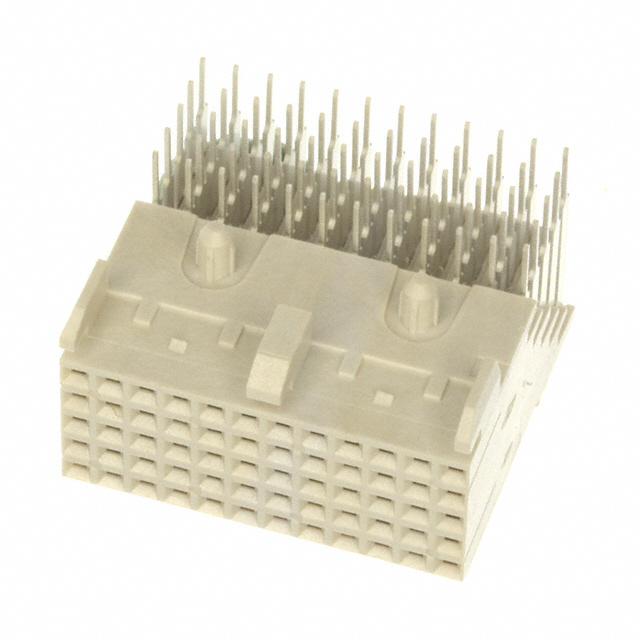

5223007-2

TE Connectivity AMP ConnectorsIn Stock: 7925223007-2 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 89014-912 is determined by strict alignment with the following core parameters:

• Connector Type: Must be receptacle with female sockets
• Position Count: Exactly 60 positions
• Pitch Specification: 0.079" (2.00mm) center-to-center spacing
• Row Configuration: 5 rows
• Mounting Method: Board edge mounting with through-hole, right-angle orientation
• Termination Method: Solder connection
• Flammability Compliance: UL94 V-0 rating

The TE Connectivity AMP Connectors 5223007-2 meets all these criteria, establishing it as a direct functional equivalent. Both parts share identical electrical and mechanical interfaces, enabling pin-for-pin compatibility in applications requiring 60-position backplane connectivity.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 5223007-2 is the qualified substitute for the obsolete Amphenol ICC 89014-912. Selection of the 5223007-2 provides the following advantages:

• Active Product Status: The substitute maintains current manufacturing and supply chain support, eliminating obsolescence risk associated with the original part.
• RoHS Compliance: The 5223007-2 meets RoHS requirements, supporting compliance mandates in regulated applications and procurement frameworks.
• Electrical and Mechanical Equivalence: Identical pitch, position count, row configuration, and mounting method ensure direct compatibility without circuit board redesign.
• Established Certifications: Both parts maintain UL94 V-0 flammability ratings and MSL 1 moisture sensitivity levels, preserving thermal and environmental performance characteristics.

Frequently Asked Questions (FAQ)

Q: Can the 5223007-2 be used as a direct replacement for the 89014-912 without PCB modifications?

A: Yes. Both connectors share identical pitch (0.079"), position count (60), row configuration (5), and mounting method (board edge, through-hole, right-angle). No circuit board redesign is required.

Q: What is the significance of the product status difference between the two parts?

A: The 89014-912 is classified as obsolete, indicating discontinued manufacturing and limited availability. The 5223007-2 maintains active status, ensuring ongoing supply, technical support, and manufacturing consistency.

Q: Does the RoHS compliance difference affect compatibility?

A: RoHS compliance does not affect electrical or mechanical compatibility. The 5223007-2's RoHS compliance status makes it preferable for applications subject to environmental regulations or customer compliance requirements.

Q: Are there any differences in contact finish between these connectors?

A: The 5223007-2 specifies gold contact finish, while the 89014-912 does not provide contact finish specification in available documentation. This difference does not affect functional compatibility but may influence corrosion resistance in specific environmental conditions.

Q: What is the operational temperature range for these connectors?

A: The 5223007-2 specifies an operating temperature range of -55°C to 125°C. The 89014-912 does not provide temperature specification in available documentation.
