TE Connectivity AMP Connectors 7-969484-6 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 7-969484-6 is a 3-position rectangular connector receptacle housing with 5.00mm pitch, designed for free-hanging in-line mounting applications. This component features crimp contact termination and latch lock fastening, constructed from polyamide (PA66) nylon 6/6 insulation material. The part is classified as Active product status and is RoHS Compliant. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and supply chain continuity for applications requiring identical or functionally compatible 3-position receptacle housings with 5.00mm pitch specifications.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	3
Pitch	0.197" (5.00mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Packaging	Bulk
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the 7-969484-6 are identified based on strict parametric equivalence across the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (3), pitch (5.00mm), number of rows (1), mounting type (free hanging in-line), contact termination (crimp), fastening type (latch lock), and insulation material (polyamide PA66 nylon 6/6). All substitute parts maintain these core specifications, ensuring direct functional compatibility in applications designed for the 7-969484-6. Variations in color, operating temperature range, RoHS certification revision level, and MSL classification are noted but do not preclude substitution where the primary electrical and mechanical parameters align.

Parameter Comparison

Manufacturer Part Number	Connector Type	Contact Type	Positions	Pitch	Rows	Mounting Type	Termination	Fastening	Insulation Material	Color	Operating Temperature	RoHS Status	MSL	Inventory (Pcs)
7-969484-6	Receptacle	Female Socket	3	0.197" (5.00mm)	1	Free Hanging (In-Line)	Crimp	Latch Lock	Polyamide (PA66), Nylon 6/6	Natural	Not Specified	RoHS Compliant	1 (Unlimited)	891

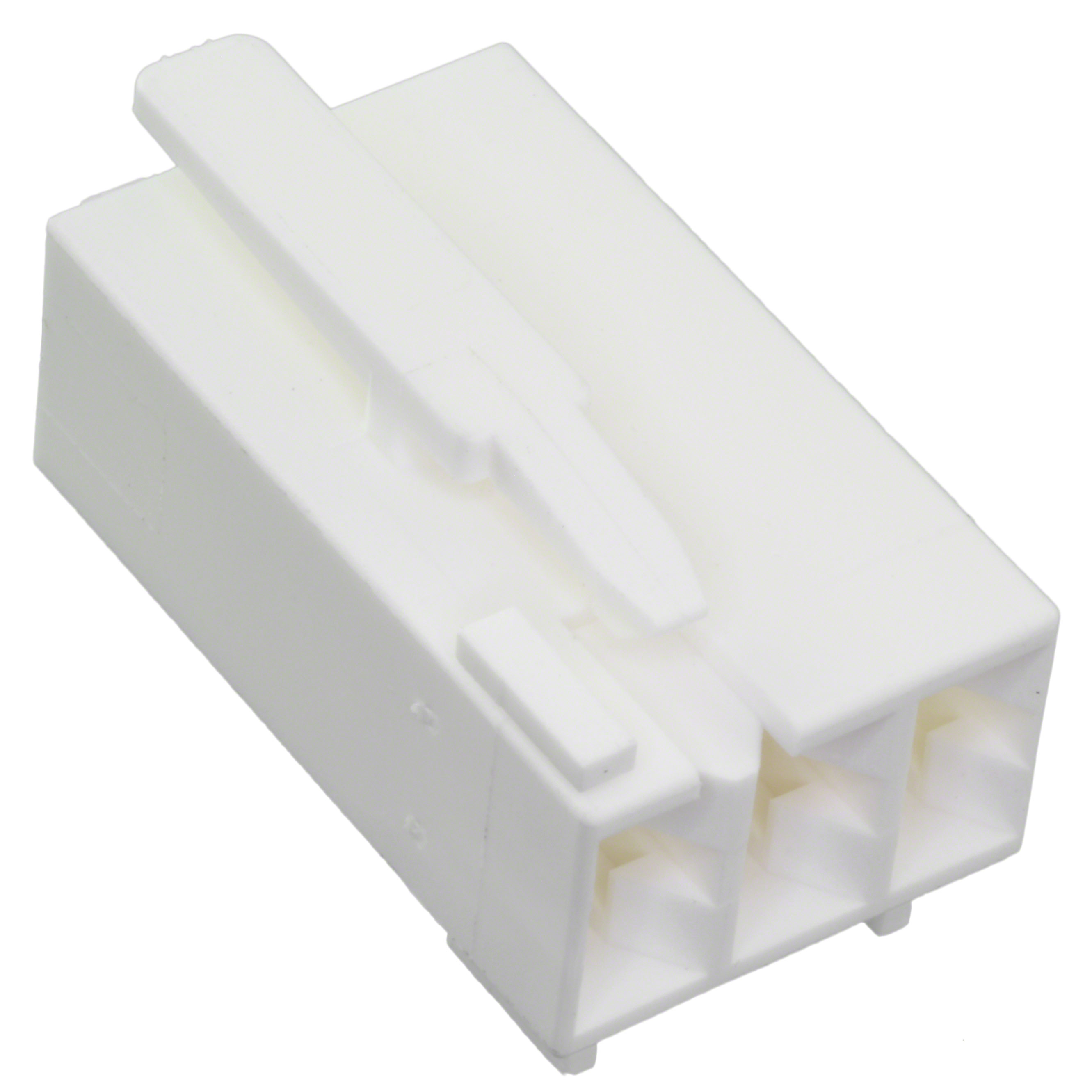

1955422-6	Receptacle	Female Socket	3	0.197" (5.00mm)	1	Free Hanging (In-Line)	Crimp	Latch Lock	Polyamide (PA66), Nylon 6/6	Natural	-40°C ~ 105°C	ROHS3 Compliant	1 (Unlimited)	1048
5-969484-7	Receptacle	Female Socket	3	0.197" (5.00mm)	1	Free Hanging (In-Line)	Crimp	Latch Lock	Polyamide (PA66), Nylon 6/6	Natural	Not Specified	ROHS3 Compliant	Not Applicable	1507
9-1241961-8	Receptacle	Female Socket	3	0.197" (5.00mm)	1	Free Hanging (In-Line)	Crimp	Latch Lock	Polyamide (PA66), Nylon 6/6	Natural	-40°C ~ 105°C	RoHS Compliant	1 (Unlimited)	1297
928247-3	Receptacle	Female Socket	3	0.197" (5.00mm)	1	Free Hanging (In-Line)	Crimp	Latch Lock	Polyamide (PA66), Nylon 6/6	Yellow	-40°C ~ 110°C	RoHS Compliant	1 (Unlimited)	59665

Engineering Selection Recommendations

All identified substitute parts maintain full parametric equivalence to the 7-969484-6 across electrical and mechanical specifications. Selection among substitute parts should be based on the following criteria:

RoHS Compliance Alignment: The 7-969484-6 carries RoHS Compliant status. Substitute parts 1955422-6 and 5-969484-7 are ROHS3 Compliant, representing a newer revision of the RoHS directive. Part 9-1241961-8 and 928247-3 maintain RoHS Compliant status consistent with the original part.

Operating Temperature Range: The 7-969484-6 does not specify an operating temperature range. Substitute parts 1955422-6 and 9-1241961-8 are rated -40°C ~ 105°C, while 928247-3 extends to -40°C ~ 110°C. Part 5-969484-7 does not specify operating temperature. Selection should align with application thermal requirements.

Color Specification: The 7-969484-6 is Natural colored. Substitute parts 1955422-6, 5-969484-7, and 9-1241961-8 are also Natural colored. Part 928247-3 is Yellow colored and should be selected only where color specification permits or requires yellow identification.

Moisture Sensitivity Level: The 7-969484-6 is classified MSL 1 (Unlimited). Substitute parts 1955422-6 and 9-1241961-8 maintain MSL 1 (Unlimited). Part 5-969484-7 is classified as Not Applicable. All parts are suitable for standard storage and handling conditions.

Inventory Availability: Part 5-969484-7 offers the highest inventory level at 1507 pieces, followed by 9-1241961-8 at 1297 pieces and 1955422-6 at 1048 pieces. The original 7-969484-6 has 891 pieces in stock.

Frequently Asked Questions (FAQ)

Q: Can 1955422-6 be used as a direct replacement for 7-969484-6?

A: Yes. The 1955422-6 maintains identical specifications for connector type, contact type, number of positions, pitch, mounting type, contact termination, fastening type, and insulation material. The primary difference is ROHS3 Compliant status versus RoHS Compliant, and a specified operating temperature range of -40°C ~ 105°C. Both parts are Natural colored and carry MSL 1 (Unlimited) classification.

Q: What is the difference between 9-1241961-8 and 928247-3?

A: Both parts are functionally equivalent 3-position receptacle housings with 5.00mm pitch. The primary differences are color (9-1241961-8 is Natural; 928247-3 is Yellow) and operating temperature range (9-1241961-8 is -40°C ~ 105°C; 928247-3 is -40°C ~ 110°C). Selection depends on application color requirements and thermal operating conditions.

Q: Is 5-969484-7 compatible with applications designed for 7-969484-6?

A: Yes. The 5-969484-7 is parametrically equivalent across all critical electrical and mechanical specifications. It is ROHS3 Compliant and carries Not Applicable MSL classification. Operating temperature is not specified for this part. Compatibility is confirmed for standard rectangular connector receptacle housing applications.

Q: Why does 928247-3 have higher inventory than other substitutes?

A: Inventory levels reflect supply chain and demand patterns. The 928247-3 Yellow colored variant has 59665 pieces in stock, significantly higher than other substitutes. This part is suitable for applications where yellow color identification is required or permitted.

Q: Are all substitute parts suitable for crimp termination applications?

A: Yes. All substitute parts specified in this reference use crimp contact termination and latch lock fastening, consistent with the 7-969484-6. All parts are designed for use with compatible crimp contacts and are not supplied with contacts included.

Q: What is the significance of MSL classification differences?

A: MSL 1 (Unlimited) classification indicates the part has unlimited shelf life under standard storage conditions and does not require special moisture control during handling. Part 5-969484-7 is classified as Not Applicable, indicating alternative moisture sensitivity classification methodology. Both classifications are suitable for standard component procurement and storage practices.

Q: Can 928247-3 be used in applications where natural color is required?

A: No. The 928247-3 is Yellow colored and should not be substituted in applications where natural color is specified or required. Use Natural colored alternatives: 1955422-6, 5-969484-7, or 9-1241961-8.
