TE Connectivity AMP Connectors 796407-1 Equivalent & Substitute Parts

Part Overview

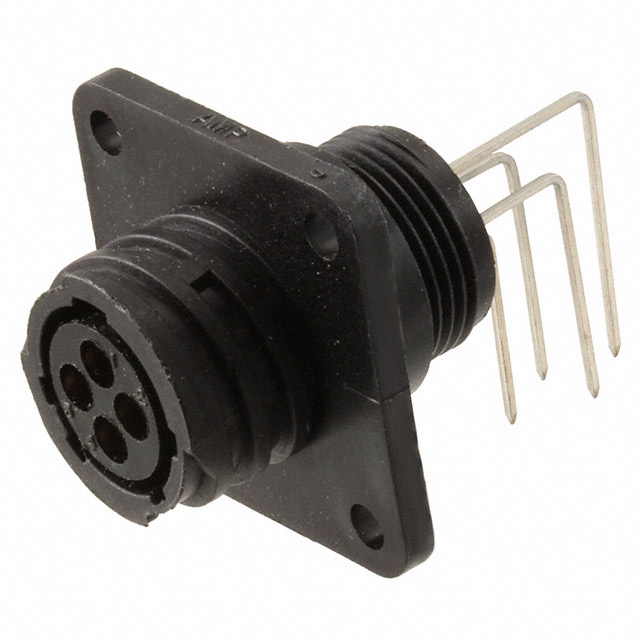

The TE Connectivity AMP Connectors 796407-1 is a 4 Position Circular Connector Receptacle with Female Sockets, designed for panel mount, through hole, right angle applications with solder termination. This component features a keyed orientation, thermoplastic shell with gold-plated brass contacts, and operates across a temperature range of -55°C to 105°C with a voltage rating of 250VAC/DC.

The 796407-1 carries an Obsolete product status. Identification of equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production and field service requirements for systems utilizing this connector.

Substiute Parts

796407-1

TE Connectivity AMP ConnectorsIn Stock: 1030796407-1 Datasheet

Current PartRFQ

1-796407-1

TE Connectivity AMP ConnectorsIn Stock: 9641-796407-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 796407-1 is determined by strict equivalence across all electrical and mechanical parameters. The substitute part must maintain identical specifications in the following critical areas:

Electrical Parameters: Voltage rating (250VAC/DC), contact material (Brass), contact finish (Gold at 30.0µin thickness), and connector type (Receptacle, Female Sockets).

Mechanical Parameters: Number of positions (4), shell size - insert (11-4), mounting type (Panel Mount, Through Hole, Right Angle), mounting feature (Flange), termination method (Solder), fastening type (Threaded), and orientation (Keyed).

Material & Environmental Parameters: Shell material (Thermoplastic), material flammability rating (UL94 V-0), and operating temperature range (-55°C ~ 105°C).

Series Designation: CPC Series 1 classification ensures compatibility within the connector family.

The substitute part 1-796407-1 meets all these criteria and is classified as the manufacturer-recommended equivalent.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 1-796407-1 is the manufacturer-recommended equivalent for the obsolete 796407-1. Selection of the substitute part is supported by the following engineering considerations:

Product Status: The 796407-1 is classified as Obsolete, while the 1-796407-1 maintains Active product status. Active status ensures continued manufacturer support, availability, and technical documentation.

Regulatory Compliance: The 1-796407-1 achieves ROHS3 compliance, whereas the original part carries RoHS non-compliant status. The substitute also provides defined REACH Unaffected status compared to the original part's Vendor Undefined designation. These improvements align with current regulatory requirements for electronic components.

Functional Equivalence: All electrical and mechanical parameters are identical between the two parts. The 4-position circular connector receptacle configuration, solder termination, keyed orientation, and all material specifications remain unchanged.

Supply Chain Continuity: The 1-796407-1 is available in Active inventory status with Tray packaging, supporting production and field service requirements for systems currently utilizing the 796407-1.

Frequently Asked Questions (FAQ)

Q: Can the 1-796407-1 be used as a direct replacement for the 796407-1 in existing designs?

A: Yes. The 1-796407-1 is electrically and mechanically identical to the 796407-1 across all specified parameters, including connector type, position count, shell size, mounting configuration, termination method, and operating specifications. Direct substitution is supported.

Q: What is the difference between the 796407-1 and 1-796407-1?

A: The primary differences are product status and regulatory compliance. The 796407-1 is Obsolete with RoHS non-compliant status, while the 1-796407-1 is Active with ROHS3 compliance and defined REACH Unaffected status. All functional and electrical specifications are identical.

Q: Does the packaging difference affect compatibility?

A: No. The 796407-1 packaging is not specified in the documentation, while the 1-796407-1 is supplied in Tray packaging. Packaging affects handling and storage logistics but does not impact electrical or mechanical compatibility. The connector itself remains functionally identical.

Q: Are there any temperature or voltage limitations when substituting the 1-796407-1?

A: No. Both parts share identical voltage rating (250VAC/DC) and operating temperature range (-55°C ~ 105°C). The 1-796407-1 operates within the same environmental specifications as the original part.

Q: What certifications apply to the substitute part?

A: The 1-796407-1 carries UL94 V-0 material flammability rating, ROHS3 compliance, REACH Unaffected status, and EAR99 ECCN classification. These certifications are identical to or improved from the original part specifications.

Q: Is the 1-796407-1 the only substitute available?

A: Based on the provided data, the 1-796407-1 is the manufacturer-recommended substitute for the 796407-1. It is the only equivalent part listed for this connector model.
