TE Connectivity 786144-1 D-Sub Receptacle Equivalent & Substitute Parts

Part Overview

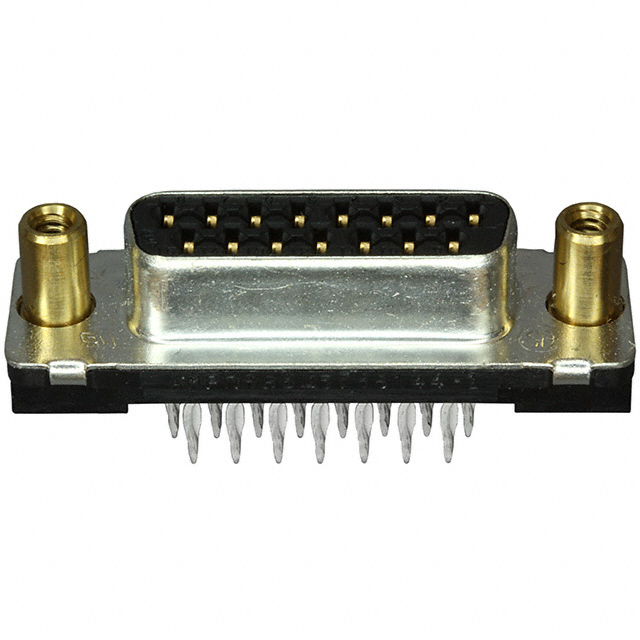

The TE Connectivity 786144-1 is a 15-position D-Sub receptacle connector with female sockets, designed for through-hole mounting applications. This connector is part of the AMPLIMITE HD-20 series and features press-fit termination with a mating-side female screwlock. The 786144-1 is classified as obsolete product status, necessitating identification of active equivalent parts to ensure continued availability and supply chain continuity for new designs and production requirements.

Substiute Parts

786144-1

TE Connectivity AMP ConnectorsIn Stock: 928786144-1 Datasheet

Current PartRFQ

5786144-1

TE Connectivity AMP ConnectorsIn Stock: 24245786144-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete TE Connectivity 786144-1 is based on electrical and mechanical parameter equivalence within the AMPLIMITE HD-20 series. The substitute part 5786144-1 maintains identical specifications across all critical functional parameters: 15-position D-Sub receptacle configuration, female socket contact type, 2-row layout with shell size 2 (DA, A), through-hole mounting, press-fit termination, and mating-side female screwlock flange feature.

The key parameters determining substitution eligibility are:

• Connector style and type (D-Sub receptacle, female sockets)
• Position count and row configuration (15 positions, 2 rows)
• Shell size and layout (2 DA, A)
• Mounting method (through hole)
• Termination technology (press-fit)
• Flange configuration (mating side, female screwlock 4-40)
• Contact material and finish (copper alloy with gold plating)
• Operating temperature range (-55°C ~ 105°C)
• Flammability rating (UL94 V-0)

The substitute part differs only in shell material finish (tin plating versus tin-lead plating), packaging format (tray versus bulk), product status (active versus obsolete), and regulatory compliance certifications (RoHS3 compliant and REACH affected versus non-compliant).

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 5786144-1 is the direct functional equivalent to the obsolete 786144-1 within the AMPLIMITE HD-20 series. Both connectors are electrically and mechanically identical across all signal-carrying and structural parameters.

The primary distinction between these parts is regulatory compliance status. The 5786144-1 is ROHS3 compliant and REACH affected, meeting current environmental and hazardous substance restrictions applicable to electronic components in most jurisdictions. The 786144-1 carries non-compliant status with undefined REACH classification, reflecting its obsolete designation.

For new designs, production restarts, or supply chain transitions, the 5786144-1 is the appropriate selection. The active product status ensures ongoing manufacturer support, availability, and compliance with current regulatory frameworks. The shell material finish difference (tin versus tin-lead plating) does not affect electrical performance or mechanical compatibility; both finishes provide equivalent corrosion resistance and contact reliability within the specified operating temperature range of -55°C to 105°C.

Frequently Asked Questions (FAQ)

Q: Are the 786144-1 and 5786144-1 electrically interchangeable?

A: Yes. Both connectors maintain identical electrical specifications including contact material (copper alloy), contact finish (gold plating), signal contact type, and operating temperature range (-55°C ~ 105°C). They are direct electrical equivalents.

Q: What is the difference in shell material finish between these parts?

A: The 786144-1 features steel with tin-lead plating, while the 5786144-1 uses steel with tin plating. Both finishes provide equivalent corrosion resistance and mechanical durability. The tin plating in the 5786144-1 reflects compliance with modern RoHS3 restrictions on lead content.

Q: Can the 5786144-1 be used as a direct replacement in existing assemblies designed for the 786144-1?

A: Yes. The 5786144-1 is mechanically and electrically compatible with the 786144-1. Mounting configuration, pin layout, flange design, and termination method are identical. No design modifications are required.

Q: Why is the 786144-1 listed as obsolete?

A: The 786144-1 is obsolete due to regulatory compliance requirements. The 5786144-1 replaces it as the active product, offering ROHS3 compliance and REACH compliance status required for current manufacturing and distribution.

Q: Does packaging format affect connector performance?

A: No. The 786144-1 and 5786144-1 differ in packaging (bulk versus tray), but packaging format does not affect electrical or mechanical performance. Packaging selection is based on inventory management and handling requirements.

Q: Are both connectors suitable for the full -55°C to 105°C operating temperature range?

A: Yes. Both the 786144-1 and 5786144-1 are rated for continuous operation across the -55°C to 105°C temperature range with identical performance characteristics.

Q: What is the moisture sensitivity level for these connectors?

A: Both connectors carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions. Standard handling and storage procedures apply without special environmental controls.
