TE Connectivity AMP Connectors 770246-4 Equivalent & Substitute Parts

Part Overview

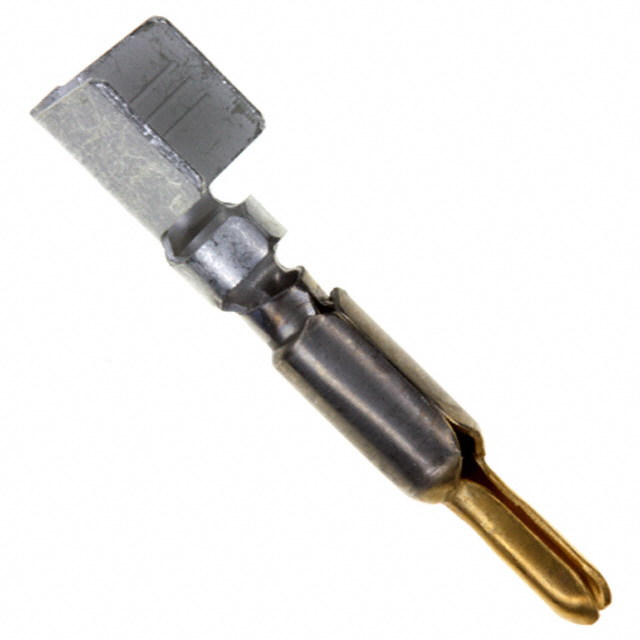

The TE Connectivity AMP Connectors 770246-4 is a split pin contact connector designed for crimp termination with 10-12 AWG wire gauge applications. This component is part of the Universal MATE-N-LOK II series and features gold plating for enhanced conductivity and corrosion resistance. The part is currently classified as obsolete, making identification of active equivalent components essential for ongoing procurement and system maintenance. Substitution is necessary to ensure continued availability and access to components with active product status and current compliance certifications.

Substiute Parts

770246-4

TE Connectivity AMP ConnectorsIn Stock: 968770246-4 Datasheet

Current PartRFQ

1-770246-0

TE Connectivity AMP ConnectorsIn Stock: 10991-770246-0 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 770246-4 is based on strict equivalence across all critical electrical and mechanical parameters. The substitute part 1-770246-0 maintains identical specifications for the following key parameters:

• Series Compatibility: Both components belong to the Universal MATE-N-LOK II series
• Contact Configuration: Both are split pin contacts
• Termination Method: Both utilize crimp termination
• Wire Gauge Rating: Both accommodate 10-12 AWG wire
• Contact Finish: Both feature gold plating at 30.0µin (0.76µm) thickness
• Moisture Sensitivity: Both are rated MSL 1 (Unlimited)
• Base Product Number: Both share base product number 770246

The primary distinction between the main part and substitute is product status and compliance certification. The substitute part 1-770246-0 is active and RoHS3 compliant, whereas the main part 770246-4 is obsolete and RoHS non-compliant.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 1-770246-0 is the direct equivalent for the obsolete 770246-4. Selection of the substitute is based on the following engineering criteria:

Product Status: The 770246-4 is classified as obsolete, limiting long-term availability and support. The substitute 1-770246-0 maintains active product status, ensuring continued procurement capability and manufacturer support.

Compliance Certification: The substitute part 1-770246-0 is RoHS3 compliant, meeting current regulatory requirements for electronic components in many jurisdictions. The main part 770246-4 is RoHS non-compliant and does not meet modern environmental standards.

Electrical and Mechanical Equivalence: All functional parameters are identical between the main part and substitute, including wire gauge rating, contact finish, termination method, and series compatibility. This ensures direct functional interchangeability within Universal MATE-N-LOK II connector assemblies.

Inventory Availability: The substitute part 1-770246-0 is available in active inventory (1035 pieces), providing reliable procurement for new designs and replacement applications.

For applications requiring the 770246-4, the part 1-770246-0 is the appropriate selection to ensure compliance, availability, and continued system support.

Frequently Asked Questions (FAQ)

Q: Can the 1-770246-0 substitute directly replace the 770246-4 in existing assemblies?

A: Yes. The 1-770246-0 is electrically and mechanically equivalent to the 770246-4. Both components share identical specifications for wire gauge (10-12 AWG), contact finish (gold at 30.0µin), termination method (crimp), and series compatibility (Universal MATE-N-LOK II). Direct substitution is supported.

Q: What is the primary reason for substituting the 770246-4?

A: The 770246-4 is classified as obsolete, which restricts future availability and manufacturer support. The 1-770246-0 is an active product with current compliance certifications, ensuring long-term procurement viability and regulatory compliance.

Q: Are there compliance differences between the two parts?

A: Yes. The 1-770246-0 is RoHS3 compliant, while the 770246-4 is RoHS non-compliant. For applications subject to RoHS regulations or environmental compliance requirements, the 1-770246-0 is the required selection.

Q: Do the parts differ in packaging?

A: The 770246-4 packaging is not specified in the available data. The 1-770246-0 is supplied in bulk packaging. Confirm packaging requirements with your procurement specifications.

Q: Are the moisture sensitivity ratings identical?

A: Yes. Both the 770246-4 and 1-770246-0 are rated MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.

Q: What wire gauges are supported by the substitute part?

A: The 1-770246-0 supports 10-12 AWG wire gauge, identical to the 770246-4. This rating applies to both solid and stranded conductors within the specified gauge range.

Q: Is the contact finish thickness the same on both parts?

A: Yes. Both components feature gold plating at 30.0µin (0.76µm) thickness, ensuring equivalent electrical performance and corrosion resistance.
