TE Connectivity AMP Connectors 767044-2 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 767044-2 is a 76 Position Connector Receptacle with center strip contacts designed for board edge, straddle mount applications. This rectangular connector features gold-plated contacts and is part of the MICTOR series. The 767044-2 is classified as obsolete, making identification of active equivalent parts necessary for ongoing procurement and new design implementations. Substitute parts must maintain identical electrical and mechanical specifications to ensure direct compatibility in existing and new applications.

Substiute Parts

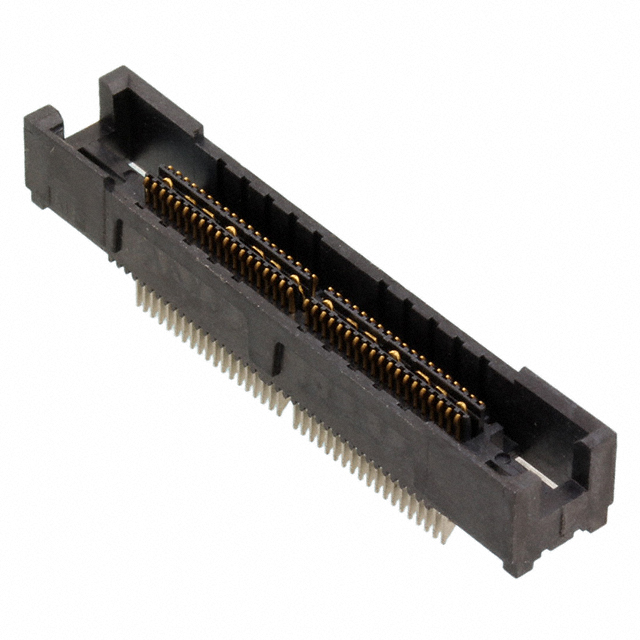

767044-2

TE Connectivity AMP ConnectorsIn Stock: 940767044-2 Datasheet

Current PartRFQ

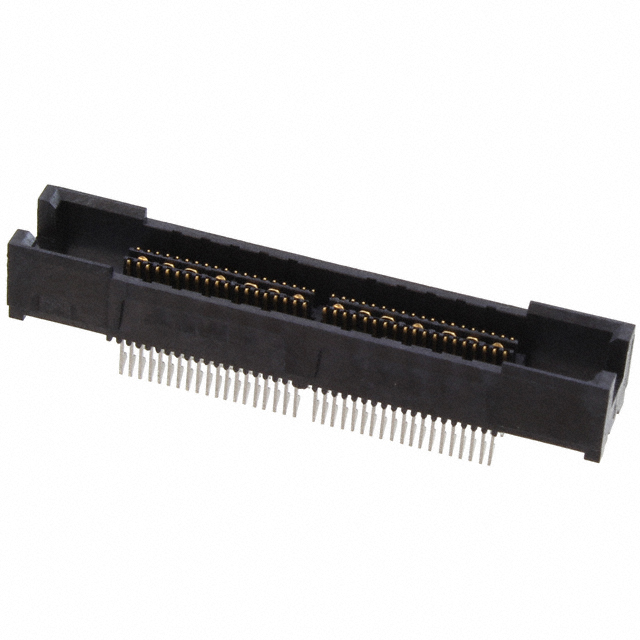

5767044-2

TE Connectivity AMP ConnectorsIn Stock: 10925767044-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 767044-2 is based on strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications in the following areas:

Electrical Parameters:

• 76 position count
• 0.025" (0.64mm) pitch
• 2-row configuration
• Gold contact finish with 30.0µin (0.76µm) thickness

Mechanical Parameters:

• Receptacle connector type with center strip contacts
• Board edge, straddle mount configuration
• 0.236" (6.00mm) height above board
• Board guide and ground bus plane features

Series Compatibility:

• MICTOR series designation

The substitute part 5767044-2 meets all these criteria and is therefore a direct equivalent for the obsolete 767044-2.

Parameter Comparison

Engineering Selection Recommendations

The 5767044-2 is the direct functional equivalent of the obsolete 767044-2. Both parts are manufactured by TE Connectivity AMP Connectors and share identical electrical and mechanical specifications across all critical parameters including position count, pitch, mounting configuration, contact finish, and physical dimensions.

Product Status Consideration: The 767044-2 is classified as obsolete, while the 5767044-2 is active. Selection of the 5767044-2 ensures continued availability and long-term supply chain reliability.

Compliance Improvement: The 5767044-2 offers enhanced regulatory compliance compared to the 767044-2. The substitute part is ROHS3 compliant and REACH unaffected, whereas the main part is RoHS non-compliant and REACH affected. This compliance upgrade is achieved without modification to the connector's functional or physical characteristics.

Packaging: The 5767044-2 is supplied in tube packaging, which is standard for this connector category and does not affect electrical or mechanical performance.

For applications currently using the 767044-2 or requiring new procurement of this connector type, the 5767044-2 is the appropriate selection.

Frequently Asked Questions (FAQ)

Q: Are the 767044-2 and 5767044-2 electrically identical?

A: Yes. Both connectors have 76 positions, 0.025" (0.64mm) pitch, 2-row configuration, and identical gold contact finish specifications. They are electrically equivalent.

Q: Can the 5767044-2 be used as a direct replacement for the 767044-2 in existing designs?

A: Yes. The 5767044-2 maintains identical mechanical and electrical specifications including mounting type (board edge, straddle mount), height above board (0.236"), and all connector features (board guide, ground bus plane). Direct substitution is supported.

Q: What is the difference between the 767044-2 and 5767044-2?

A: The primary differences are product status and regulatory compliance. The 767044-2 is obsolete and RoHS non-compliant, while the 5767044-2 is active and ROHS3 compliant. The 5767044-2 is also REACH unaffected. All functional and physical specifications are identical.

Q: Does the packaging difference affect compatibility?

A: No. The 5767044-2 is supplied in tube packaging, which is a standard packaging format for rectangular connectors. Packaging does not affect the connector's electrical performance or mechanical fit.

Q: Are there any restrictions on using the 5767044-2 in new designs?

A: No. The 5767044-2 is an active product with improved regulatory compliance. It is suitable for both replacement applications and new design implementations.

Q: What is the Moisture Sensitivity Level (MSL) for both parts?

A: Both the 767044-2 and 5767044-2 have MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
