Amphenol ICC 69192-124 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 69192-124 is a through-hole rectangular connector header in the BERGSTIK® II series, configured for 24-position, 2-row board-to-board applications with 0.100" (2.54mm) pitch. This connector features male pins with kinked solder termination, gold-plated mating contacts, and unshrouded design. The part is active in production with 696 units in current inventory. Substitute parts are identified to address supply chain requirements, alternative manufacturing sources, or specific application constraints while maintaining electrical and mechanical compatibility.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	24
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Style	Board to Board
Shrouding	Unshrouded
Contact Shape	Square
Material Flammability Rating	UL94 V-0
Insulation Color	Black

Substitute Part Grouping Explanation

Substitute parts for the 69192-124 are qualified based on the following critical parameters that must align with the original specification:

Connector type: Header
Contact type: Male pin
Pitch: 0.100" (2.54mm)
Position count: 24
Row configuration: 2 rows
Row spacing: 0.100" (2.54mm)
Mounting: Through hole
Style: Board to board or board to cable
Shrouding: Unshrouded
Contact shape: Square
Flammability: UL94 V-0

Substitute parts are grouped by manufacturer and series. Samtec TSW and HTSW series parts meet all critical electrical and mechanical parameters. Harwin M20 series provides an alternative with equivalent pitch, position count, and row configuration. All substitutes maintain the same contact geometry, mating interface, and board-level compatibility.

Parameter Comparison

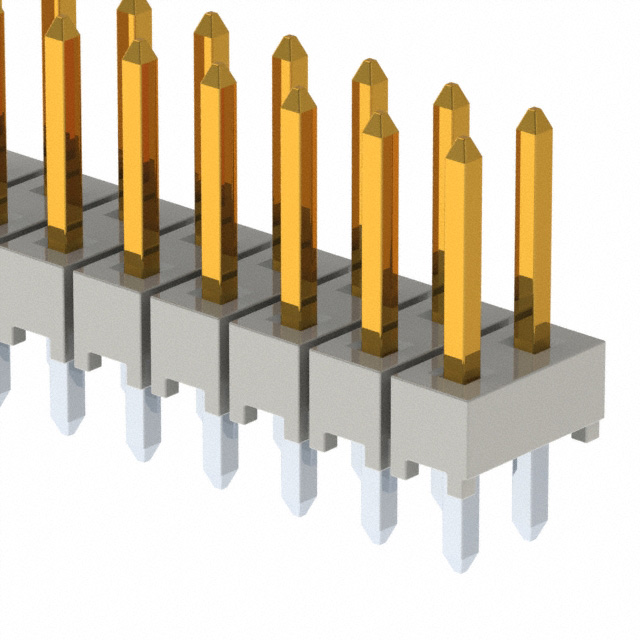

Parameter	69192-124 (Amphenol ICC)	HTSW-112-07-F-D (Samtec)	HTSW-112-07-G-D (Samtec)	M20-9761246 (Harwin)	TSW-112-07-F-D (Samtec)	TSW-112-07-G-D (Samtec)	TSW-112-07-L-D (Samtec)	TSW-112-07-L-D-LL (Samtec)	TSW-112-07-S-D (Samtec)	TSW-112-07-S-D-LL (Samtec)	TSW-112-07-SM-D-LL (Samtec)
Connector Type	Header	Header	Header	Header, Cuttable	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	24	24	24	24	24	24	24	24	24	24	24
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Style	Board to Board	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable
Shrouding	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Length - Mating	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.228" (5.80mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.122" (3.10mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Overall Contact Length	0.450" (11.43mm)	0.430" (10.92mm)	0.430" (10.92mm)	0.452" (11.48mm)	0.430" (10.92mm)	0.430" (10.92mm)	0.430" (10.92mm)	0.430" (10.92mm)	0.430" (10.92mm)	0.430" (10.92mm)	0.430" (10.92mm)
Insulation Height	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Finish - Mating	Gold or Gold, GXT™	Gold	Gold	Tin	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)	3.00µin (0.076µm)	10.0µin (0.25µm)	Not specified	3.00µin (0.076µm)	10.0µin (0.25µm)	10.0µin (0.25µm)	10.0µin (0.25µm)	30.0µin (0.76µm)	30.0µin (0.76µm)	30.0µin (0.76µm)
Contact Finish - Post	Not specified	Tin	Gold	Tin	Tin	Gold	Tin	Tin	Tin	Tin	Tin
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Brass	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Insulation Material	Not specified	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Polyamide (PA6T), Nylon 6T	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Insulation Color	Black	Natural	Natural	Black	Black	Black	Black	Black	Black	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	Not specified	-55°C ~ 125°C	-55°C ~ 125°C	-40°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
RoHS Status	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Not Applicable	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active

Engineering Selection Recommendations

All substitute parts listed maintain active product status and are in current production. Selection between substitute options depends on specific application requirements:

Samtec HTSW Series (HTSW-112-07-F-D, HTSW-112-07-G-D): These parts are ROHS3 compliant and feature LCP insulation material. HTSW-112-07-G-D provides gold plating on both mating and post contacts with 10.0µin thickness, matching the original part's contact finish specification more closely than the F variant.

Samtec TSW Series (TSW-112-07-F-D, TSW-112-07-G-D, TSW-112-07-L-D, TSW-112-07-L-D-LL, TSW-112-07-S-D, TSW-112-07-S-D-LL, TSW-112-07-SM-D-LL): These parts are ROHS3 compliant with PBT insulation and extended operating temperature range (-55°C to 125°C). Variants differ in contact finish specifications and termination type. TSW-112-07-S-D and TSW-112-07-S-D-LL provide 30.0µin gold plating on mating contacts, directly matching the original 69192-124 specification. Kinked pin variants (L-D-LL, S-D-LL, SM-D-LL) provide enhanced mechanical retention during soldering.

Harwin M20-9761246: This part is ROHS3 compliant with Nylon 6T insulation and tin plating on both mating and post contacts. Operating temperature range is -40°C to 105°C with 3A per contact current rating. The cuttable header feature provides design flexibility for custom configurations.

All substitute parts maintain identical pitch, position count, row configuration, and board-level mating interface compatibility with the original 69192-124.

Frequently Asked Questions (FAQ)

Q: Can TSW-112-07-G-D directly replace 69192-124 in existing designs?

A: Yes. Both parts share identical pitch (0.100"), position count (24), row configuration (2 rows), mounting type (through hole), and contact geometry. The TSW-112-07-G-D provides gold plating on both mating and post contacts with 10.0µin thickness. The primary difference is insulation material (PBT vs. unspecified in original) and extended operating temperature range (-55°C to 125°C). ROHS3 compliance of the substitute may be advantageous for new designs.

Q: What is the difference between TSW-112-07-S-D and TSW-112-07-G-D?

A: Both are Samtec TSW series headers with identical electrical and mechanical parameters. The primary difference is contact finish thickness on mating contacts: TSW-112-07-S-D provides 30.0µin (0.76µm) gold plating, matching the original 69192-124 specification exactly. TSW-112-07-G-D provides 10.0µin (0.25µm) gold plating. Both have tin-plated posts and PBT insulation.

Q: Why do some substitute parts have kinked pin termination (-LL suffix) while others have straight solder termination?

A: Kinked pin termination (TSW-112-07-L-D-LL, TSW-112-07-S-D-LL, TSW-112-07-SM-D-LL) provides mechanical retention during PCB assembly and soldering, reducing the risk of pin migration. Straight solder termination variants (TSW-112-07-F-D, TSW-112-07-G-D, TSW-112-07-L-D, TSW-112-07-S-D) rely on solder flow for retention. Selection depends on assembly process requirements and design constraints.

Q: Is the Harwin M20-9761246 suitable for high-temperature applications?

A: The Harwin M20-9761246 operates from -40°C to 105°C, which is narrower than the Samtec TSW series (-55°C to 125°C). For applications requiring extended temperature range, Samtec TSW or HTSW series parts are more appropriate. The M20 series is suitable for standard industrial temperature ranges.

Q: What packaging options are available for these substitute parts?

A: The original 69192-124 is supplied in bulk packaging. Samtec HTSW series parts are available in bag packaging (HTSW-112-07-F-D) or bulk (HTSW-112-07-G-D). Samtec TSW series parts are supplied in bulk or bag packaging depending on variant. Harwin M20-9761246 is supplied in bulk. Packaging selection may affect lead times and minimum order quantities.

Q: Are all substitute parts RoHS compliant?

A: All listed substitute parts are ROHS3 compliant. The original 69192-124 is RoHS non-compliant. For applications requiring RoHS compliance, any of the listed substitutes are suitable.

Q: What is the difference between HTSW and TSW series from Samtec?

A: Both series meet the same electrical and mechanical specifications for this 24-position, 0.100" pitch application. HTSW series uses LCP insulation material, while TSW series uses PBT insulation. Both are ROHS3 compliant and operate from -55°C to 125°C. Selection between series depends on insulation material preference and availability.
