Amphenol ICC 68683-306 Equivalent & Substitute Parts

Part Overview

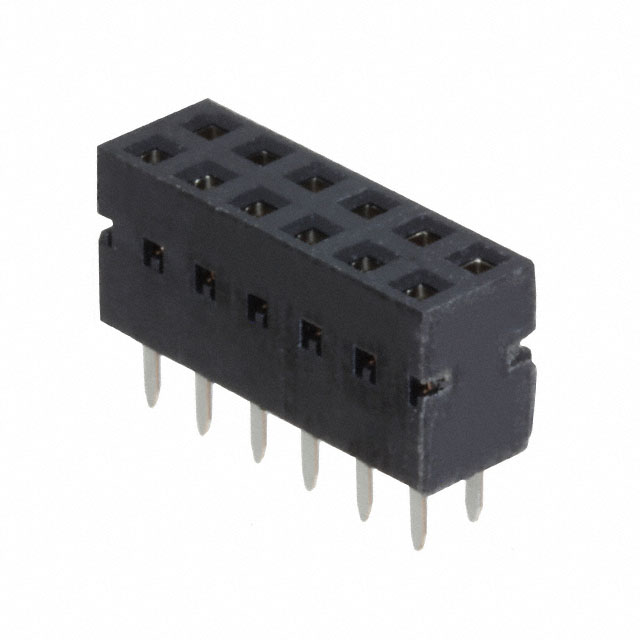

The Amphenol ICC 68683-306 is a 12-position receptacle connector with 0.100" (2.54mm) pitch, designed for through-hole board-to-board applications. This connector features gold-plated mating contacts, push-pull fastening, and operates across -65°C to 125°C. The part is classified as obsolete, making equivalent substitutes necessary for new designs and ongoing production support. Substitute parts maintain the core electrical and mechanical specifications while offering active product status and improved compliance profiles.

Key Parameters

Parameter	68683-306 Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	12
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Insulation Height	0.276" (7.00mm)
Operating Temperature	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Voltage Rating	1000V
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict alignment with the following core parameters: 12-position configuration, 0.100" (2.54mm) mating pitch, 2-row layout with 0.100" row spacing, through-hole mounting, push-pull fastening, and solder termination. All qualified substitutes maintain these specifications.

Substitutes are grouped into two categories:

Category A: Direct Electrical & Mechanical Equivalents (Gold Mating Contact Finish) Parts 215307-6, 215311-6, 803-41-012-10-001000, 803-41-012-10-004000, 803-43-012-10-001000, and 803-93-012-10-001000 maintain gold contact finish on mating surfaces, matching the original specification.

Category B: Functional Equivalents (Alternative Contact Finish) Parts 803-91-012-10-001000 and 803-99-012-10-001000 and 803-99-012-10-004000 use tin-lead mating contact finish instead of gold, representing functional alternatives for applications where contact finish variation is acceptable.

Non-Equivalent Part: Part 535598-6 is excluded from substitution due to 10-position configuration, which does not meet the 12-position requirement.

Parameter Comparison

Parameter	68683-306	215307-6	215311-6	803-41-012-10-001000	803-41-012-10-004000	803-43-012-10-001000	803-91-012-10-001000	803-93-012-10-001000	803-99-012-10-001000	803-99-012-10-004000
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	12	12	12	12	12	12	12	12	12	12
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Kinked Pin, Solder	Kinked Pin, Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Tin-Lead	Tin-Lead
Insulation Height	0.276" (7.00mm)	0.276" (7.00mm)	0.276" (7.00mm)	0.276" (7.00mm)	0.272" (6.91mm)	0.276" (7.00mm)	0.276" (7.00mm)	0.276" (7.00mm)	0.276" (7.00mm)	0.272" (6.91mm)
Operating Temperature	-65°C ~ 125°C	Not specified	Not specified	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0	UL94 V-0	Not specified	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active
RoHS Status	RoHS non-compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	Not specified	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant

Engineering Selection Recommendations

For RoHS3 Compliance with Gold Mating Contact Finish: Mill-Max Manufacturing 803-41-012-10-001000, 803-41-012-10-004000, 803-43-012-10-001000, and 803-93-012-10-001000 are active products with ROHS3 compliance and UL94 V-0 flammability rating. These parts maintain the gold contact finish specification and support the extended temperature range of -55°C to 125°C. Packaging options include bulk and tube formats.

For RoHS3 Compliance with Alternative Contact Finish: Mill-Max Manufacturing 803-99-012-10-001000 and 803-99-012-10-004000 provide ROHS3-compliant alternatives with tin-lead mating contact finish. These parts are suitable for applications where contact finish variation is acceptable and offer the same 12-position, 0.100" pitch configuration with UL94 V-0 rating.

For TE Connectivity AMPMODU HV-100 Series: TE Connectivity 215307-6 and 215311-6 are active products with RoHS compliance and UL94 V-0 flammability rating. Part 215307-6 is available in tray packaging with 2200 units in stock. Part 215311-6 features green insulation color and polybutylene terephthalate (PBT) insulation material. Both maintain gold contact finish and push-pull fastening.

Inventory Availability: All substitute parts maintain active product status with available inventory: 215307-6 (2200 units), 215311-6 (1097 units), 803-41-012-10-001000 (922 units), 803-41-012-10-004000 (953 units), 803-43-012-10-001000 (748 units), 803-91-012-10-001000 (1132 units), 803-93-012-10-001000 (1094 units), 803-99-012-10-001000 (813 units), and 803-99-012-10-004000 (1076 units).

Frequently Asked Questions (FAQ)

Q: Can 803-99-012-10-001000 replace 68683-306 in existing designs? A: Yes, provided the application does not require gold mating contact finish. The 803-99-012-10-001000 maintains all core mechanical and electrical specifications: 12 positions, 0.100" pitch, 2-row configuration, through-hole mounting, push-pull fastening, and solder termination. The tin-lead mating contact finish is the primary difference.

Q: What is the difference between 803-41-012-10-001000 and 803-41-012-10-004000? A: Both parts are functionally equivalent with identical electrical and mechanical specifications. The primary difference is insulation height: 803-41-012-10-001000 measures 0.276" (7.00mm), while 803-41-012-10-004000 measures 0.272" (6.91mm). Packaging is bulk for both variants.

Q: Are TE Connectivity 215307-6 and 215311-6 interchangeable? A: Both parts maintain the 12-position, 0.100" pitch configuration with gold mating contact finish and push-pull fastening. Key differences include insulation material (215307-6 uses polyester; 215311-6 uses polybutylene terephthalate), insulation color (215307-6 offers black or green; 215311-6 is green only), and contact material (215307-6 uses phosphor bronze; 215311-6 uses copper alloy). Selection depends on specific insulation material and contact material requirements.

Q: Why is 535598-6 not listed as a substitute? A: Part 535598-6 is a 10-position connector, not 12-position. This fundamental difference in position count makes it incompatible with designs requiring the 68683-306 12-position configuration.

Q: What packaging options are available for substitute parts? A: Mill-Max 803 series parts are available in bulk and tube packaging. TE Connectivity 215307-6 is supplied in tray packaging. Packaging selection depends on production volume and handling requirements.

Q: Do all substitute parts meet UL94 V-0 flammability requirements? A: All substitute parts except TE Connectivity 215311-6 are rated UL94 V-0. Part 215311-6 does not specify a flammability rating in the provided data.
