WR-PHD 62000621821 Equivalent & Substitute Parts

Part Overview

The Würth Elektronik WR-PHD 62000621821 is a 6-position receptacle connector with 2.00mm pitch, designed for board-to-board applications. This through-hole mounted connector features female socket contacts with gold plating and push-pull fastening. The component is actively produced and stocked, with 681 units available in inventory. Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct replacement in applications where the original part becomes unavailable or when alternative sourcing is required.

Substiute Parts

62000621821

Würth ElektronikIn Stock: 74762000621821 Datasheet

Current PartRFQ

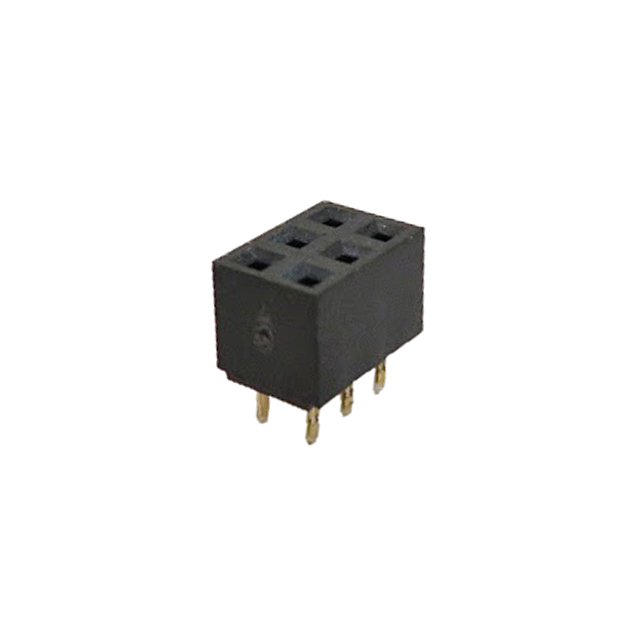

2RS2-06-G

Adam TechIn Stock: 25202RS2-06-G Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the WR-PHD 62000621821 are identified based on strict alignment of critical electrical and mechanical parameters. The following parameters must match or be equivalent for substitution eligibility:

Critical Matching Parameters:

• Connector Type: Receptacle
• Contact Type: Female Socket
• Number of Positions: 6
• Pitch - Mating: 0.079" (2.00mm)
• Number of Rows: 2
• Row Spacing - Mating: 0.079" (2.00mm)
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Finish - Mating: Gold
• Operating Temperature Range: -40°C ~ 105°C
• Material Flammability Rating: UL94 V-0
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The Adam Tech 2RS2-06-G meets all critical substitution criteria and is classified as an equivalent substitute part.

Parameter Comparison

Engineering Selection Recommendations

Both the WR-PHD 62000621821 and the Adam Tech 2RS2-06-G are active products with ROHS3 compliance and REACH unaffected status. Both connectors meet UL94 V-0 flammability requirements and operate across the -40°C to 105°C temperature range.

The WR-PHD 62000621821 provides a 2A current rating at 200VAC with a contact post length of 0.106" (2.70mm). The Adam Tech 2RS2-06-G provides a 1A current rating at 250VAC with a contact post length of 0.091" (2.30mm). Selection between these parts depends on application current requirements and voltage specifications. The WR-PHD is suitable for applications requiring higher current capacity, while the 2RS2-06-G accommodates higher voltage applications.

Both parts are manufactured with gold-plated contacts and feature identical pitch, row spacing, and mechanical mounting characteristics. The substitution is valid for applications where the electrical ratings of the selected part meet or exceed the circuit requirements.

Frequently Asked Questions (FAQ)

Q: Can the Adam Tech 2RS2-06-G directly replace the WR-PHD 62000621821 in all applications?

A: Direct replacement is valid when the application current requirement does not exceed 1A and the voltage requirement does not exceed 250VAC. The WR-PHD 62000621821 is rated for 2A at 200VAC, while the 2RS2-06-G is rated for 1A at 250VAC. Application electrical specifications must be verified against the selected part's ratings.

Q: Are the physical dimensions compatible between these two connectors?

A: Yes. Both connectors share identical pitch (0.079" / 2.00mm), row spacing (0.079" / 2.00mm), and insulation height (0.169" / 4.30mm). The contact post length differs slightly: WR-PHD at 0.106" (2.70mm) versus 2RS2-06-G at 0.091" (2.30mm). This difference does not affect board-level compatibility for standard through-hole PCB applications.

Q: What is the difference in contact material between these parts?

A: The WR-PHD 62000621821 uses Copper Alloy contacts, while the Adam Tech 2RS2-06-G uses Phosphor Bronze contacts. Both materials are gold-plated and suitable for the specified operating temperature range and environmental conditions.

Q: Are both parts compliant with current regulatory standards?

A: Yes. Both the WR-PHD 62000621821 and the Adam Tech 2RS2-06-G are ROHS3 compliant, REACH unaffected, and classified as EAR99 for export control purposes. Both carry UL94 V-0 flammability ratings and MSL 1 (Unlimited) moisture sensitivity levels.

Q: What packaging format is available for these connectors?

A: Both parts are supplied in tube packaging. The WR-PHD 62000621821 has 681 units in stock, while the Adam Tech 2RS2-06-G has 2464 units in stock.

Q: Can these connectors be used in high-temperature applications?

A: Both connectors operate across the -40°C to 105°C temperature range. Applications requiring operation outside this range require alternative component selection.
