TE Connectivity AMP Connectors 53894-5 Equivalent & Substitute Parts
Part Overview
The TE Connectivity AMP Connectors 53894-5 is a 1-position rectangular connector housing designed for power lock applications. This self-mating connector features a crimp contact termination with locking ramp fastening and is constructed from polycarbonate insulation material. The part is classified as Active product status with RoHS compliance and unlimited moisture sensitivity level rating.
Substitute parts are necessary when specific color requirements, extended operating temperature ranges, or inventory availability necessitate alternative housing options within the same connector family. All substitute parts maintain functional equivalence through identical connector type, contact configuration, mounting methodology, and termination approach.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 53894-5 |
| Manufacturer | TE Connectivity AMP Connectors |
| Category | Rectangular Connectors |
| Connector Type | Self Mating |
| Number of Positions | 1 |
| Contact Type | Non-Gendered |
| Contact Termination | Crimp |
| Fastening Type | Locking Ramp |
| Mounting Type | Free Hanging (In-Line) |
| Insulation Material | Polycarbonate (PC) |
| Color | Yellow |
| Operating Temperature Range | -40°C ~ 75°C |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Product Status | Active |
Substitute Part Grouping Explanation
Substitution eligibility for rectangular connector housings 53894-5 is determined by the following core parameters that must remain constant across all equivalent parts:
Mandatory Matching Parameters:
- Connector Type: Self Mating
- Number of Positions: 1
- Contact Type: Non-Gendered
- Contact Termination: Crimp
- Fastening Type: Locking Ramp
- Mounting Type: Free Hanging (In-Line)
- Insulation Material: Polycarbonate (PC)
- Moisture Sensitivity Level: 1 (Unlimited)
Variable Parameters (Substitution Allowed):
- Color: Yellow, White, Blue, or Black
- Operating Temperature Range: -40°C ~ 75°C or -55°C ~ 85°C
- Series: Series 1 or Power Lock Series II
- Base Product Number: 53894 or 53884
All substitute parts listed maintain identical functional and mechanical specifications while offering alternative color options and extended thermal operating ranges where applicable. The substitute parts 53894-1, 53894-2, 53894-6, 53884-1, and 53884-3 are direct functional equivalents suitable for applications requiring color differentiation or enhanced temperature performance.
Parameter Comparison
| Parameter | 53894-5 (Main) | 53894-1 | 53894-2 | 53894-6 | 53884-1 | 53884-3 |
|---|---|---|---|---|---|---|
| Manufacturer Part Number | 53894-5 | 53894-1 | 53894-2 | 53894-6 | 53884-1 | 53884-3 |
| Connector Type | Self Mating | Self Mating | Self Mating | Self Mating | Self Mating | Self Mating |
| Number of Positions | 1 | 1 | 1 | 1 | 1 | 1 |
| Contact Type | Non-Gendered | Non-Gendered | Non-Gendered | Non-Gendered | Non-Gendered | Non-Gendered |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Insulation Material | Polycarbonate (PC) | Polycarbonate (PC) | Polycarbonate (PC) | Polycarbonate (PC) | Polycarbonate (PC) | Polycarbonate (PC) |
| Color | Yellow | White | Black | Blue | Blue | Black |
| Operating Temperature Range | -40°C ~ 75°C | - | -40°C ~ 75°C | - | -55°C ~ 85°C | -55°C ~ 85°C |
| Series | Series 1 | Series 1 | Series 1 | Series 1 | Power Lock Series II | Power Lock Series II |
| Base Product Number | 53894 | 53894 | 53894 | 53894 | 53884 | 53884 |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) |
| Product Status | Active | Active | Active | Active | Active | Active |
Engineering Selection Recommendations
All substitute parts listed maintain Active product status with full RoHS compliance certification, ensuring regulatory conformance for current and future applications. Selection between substitute options should be based on the following criteria:

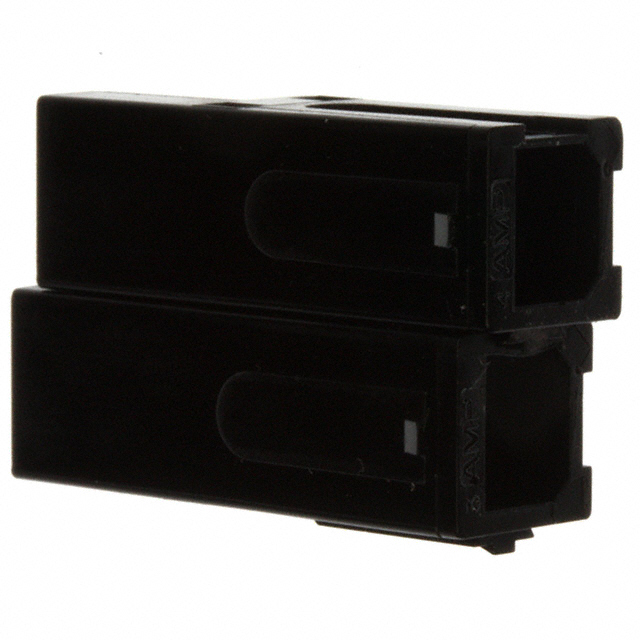

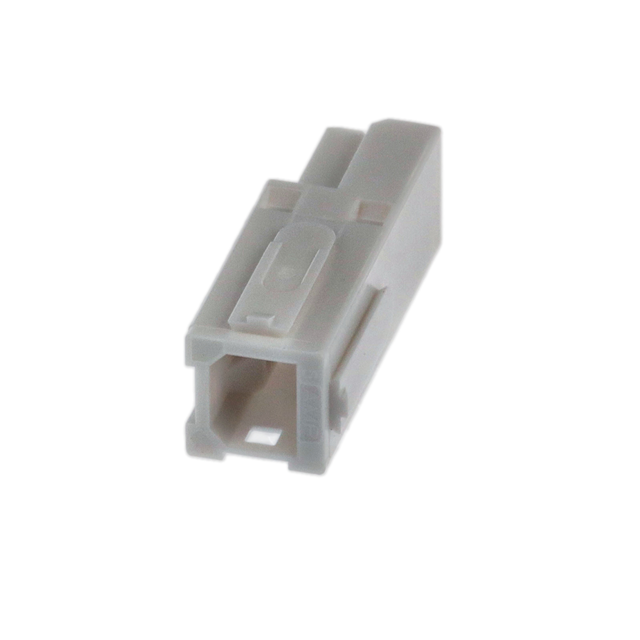

Series 1 Options (53894 Base Product): Parts 53894-1, 53894-2, and 53894-6 operate within the -40°C ~ 75°C temperature range and are suitable for standard industrial applications. These parts maintain identical thermal specifications to the main part 53894-5. Parts 53894-1 and 53894-6 carry ROHS3 Compliant certification, while 53894-2 carries RoHS Compliant certification.

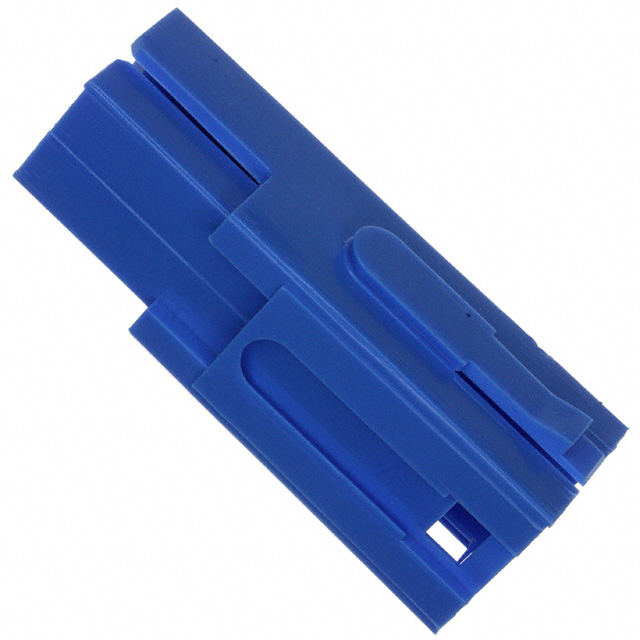

Power Lock Series II Options (53884 Base Product): Parts 53884-1 and 53884-3 provide extended operating temperature capability from -55°C ~ 85°C, accommodating applications requiring enhanced thermal performance. These parts are designated as RoHS Compliant and represent an alternative series within the connector family.
Color Selection: Yellow (53894-5), White (53894-1), Black (53894-2 or 53884-3), and Blue (53894-6 or 53884-1) options are available. Color selection does not affect electrical or mechanical performance and is determined by application-specific identification or circuit board layout requirements.
All substitute parts are manufactured by TE Connectivity AMP Connectors and carry Moisture Sensitivity Level 1 (Unlimited) rating, indicating no moisture sensitivity restrictions during storage or handling.
Frequently Asked Questions (FAQ)
Q: Can 53894-5 be directly replaced with 53894-1, 53894-2, or 53894-6?
A: Yes. Parts 53894-1, 53894-2, and 53894-6 are direct functional equivalents to 53894-5. All three substitute parts maintain identical connector type, position count, contact configuration, termination method, fastening mechanism, mounting style, and insulation material. The primary differences are color designation and RoHS certification variant. Operating temperature specifications for 53894-1 and 53894-6 are not specified in the provided data, while 53894-2 maintains the same -40°C ~ 75°C range as the main part.
Q: What is the difference between Series 1 (53894) and Power Lock Series II (53884) options?
A: Series 1 parts (53894-5, 53894-1, 53894-2, 53894-6) operate within -40°C ~ 75°C temperature range. Power Lock Series II parts (53884-1, 53884-3) provide extended operating temperature capability from -55°C ~ 85°C. Both series maintain identical connector functionality, contact configuration, and mechanical specifications. Selection between series depends on application thermal requirements.
Q: Are all substitute parts RoHS compliant?
A: Yes. All substitute parts carry either RoHS Compliant or ROHS3 Compliant certification. Part 53894-5 carries RoHS Compliant status. Parts 53894-1 and 53894-6 carry ROHS3 Compliant certification. Parts 53894-2, 53884-1, and 53884-3 carry RoHS Compliant certification. All variants meet regulatory requirements for hazardous substance restrictions.
Q: Do color variations affect connector performance or compatibility?
A: No. Color variations (Yellow, White, Black, Blue) are cosmetic designations only and do not affect electrical performance, mechanical compatibility, or functional operation. Color selection is determined by application-specific identification requirements or circuit board layout conventions.
Q: Are contacts included with these connector housings?
A: No. All parts in this family, including the main part 53894-5 and all substitute parts, are supplied as housings only. Contacts are not included and must be sourced separately according to application requirements.
Q: What is the Moisture Sensitivity Level rating for all parts?
A: All parts carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions. These connectors do not require special moisture control measures during storage, handling, or assembly.
Q: Can 53894-5 be used interchangeably with 53884-1 or 53884-3?
A: Yes, from a functional and mechanical standpoint. However, 53884-1 and 53884-3 provide extended operating temperature range (-55°C ~ 85°C) compared to 53894-5 (-40°C ~ 75°C). Selection should be based on application thermal requirements. All other specifications remain identical.
