TE Connectivity 5-338315-2 D-Sub Receptacle 25 Position Equivalent & Substitute Parts
Part Overview
The TE Connectivity 5-338315-2 is a 25 Position D-Sub Receptacle connector with female sockets, designed for through-hole solder termination applications. This connector belongs to the AMPLIMITE HDP-20 series and features a vertical mounting orientation with an unthreaded housing shell. The part is currently Active in product status with 769 pieces in stock inventory.
Substitute parts are necessary when the primary part becomes unavailable, when alternative packaging formats are required, or when design specifications allow for compatible alternatives from different manufacturers that meet the same electrical and mechanical requirements.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Shell Size, Connector Layout | 3 (DB, B) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Material Flammability Rating | UL94 V-0 |
| Current Rating | 6A |
| Operating Temperature Range | -55°C ~ 105°C |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) |
Substitute Part Grouping Explanation
Substitution eligibility for the TE Connectivity 5-338315-2 is determined by the following critical parameters:
Primary Matching Criteria:
- Connector Style: D-Sub
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 25
- Number of Rows: 2
- Shell Size, Connector Layout: 3 (DB, B)
- Mounting Type: Through Hole
- Termination: Solder
Secondary Compatibility Parameters:
- Shell Material, Finish: Steel, Tin Plated (or equivalent)
- Contact Finish: Gold
- Material Flammability Rating: UL94 V-0
- Current Rating: 6A or higher
- Operating Temperature Range: Must encompass -55°C to 105°C minimum
- RoHS Status: ROHS3 Compliant or RoHS Compliant
Substitute parts are grouped into two categories:
Category 1: Direct Functional Equivalents - Parts that match all primary criteria and maintain compatibility with the original design specifications without modification.
Category 2: Compatible Alternatives - Parts that match all primary criteria but may differ in secondary parameters such as flange features, contact form, or dielectric material, provided these differences do not compromise electrical or mechanical performance within the specified operating envelope.
Parameter Comparison
| Parameter | 5-338315-2 (TE Connectivity) | L77DB25SU (Amphenol ICC) | 09643127210 (HARTING) | 09643127230 (HARTING) | 09643127240 (HARTING) | 09663516513 (HARTING) | 09663517513 (HARTING) | 09663556513 (HARTING) | 172-025-212R011 (NorComp) | 172-025-212R021 (NorComp) | 172-025-212R911 (NorComp) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Connector Style | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Shell Size, Connector Layout | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole | Panel Mount, Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel | Steel | Steel | Steel | Steel | Steel | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold | Not Specified | Not Specified | Not Specified | Not Specified | Not Specified | Gold | Gold | Gold | Gold |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 6A | 7.5A | 7.5A | 7.5A | 7.5A | 6.5A | 6.5A | 6.5A | 5A | 5A | 5A |
| Operating Temperature Range | -55°C ~ 105°C | -55°C ~ 125°C | -20°C ~ 125°C | -20°C ~ 125°C | -20°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -50°C ~ 100°C | -50°C ~ 100°C | -50°C ~ 100°C |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Moisture Sensitivity Level | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | Not Applicable | Not Applicable | Not Applicable |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Obsolete | Obsolete |
Engineering Selection Recommendations
Tier 1: Primary Substitutes (Active Product Status)
The Amphenol ICC L77DB25SU is the recommended primary substitute for the TE Connectivity 5-338315-2. This part maintains all critical electrical and mechanical parameters, operates across an extended temperature range (-55°C to 125°C), and carries Active product status with RoHS compliance. The higher current rating of 7.5A provides additional design margin. Packaging is supplied in Tray format with 952 units in stock inventory.
Tier 2: Compatible Alternatives (Active Product Status)
HARTING parts 09643127210, 09643127230, and 09643127240 are functionally compatible alternatives with Active product status and ROHS3 compliance. These parts feature higher current ratings (7.5A) and extended temperature ranges. However, they lack specified contact finish and feature integrated filter elements. These parts are suitable for applications where the filter feature provides system benefit.

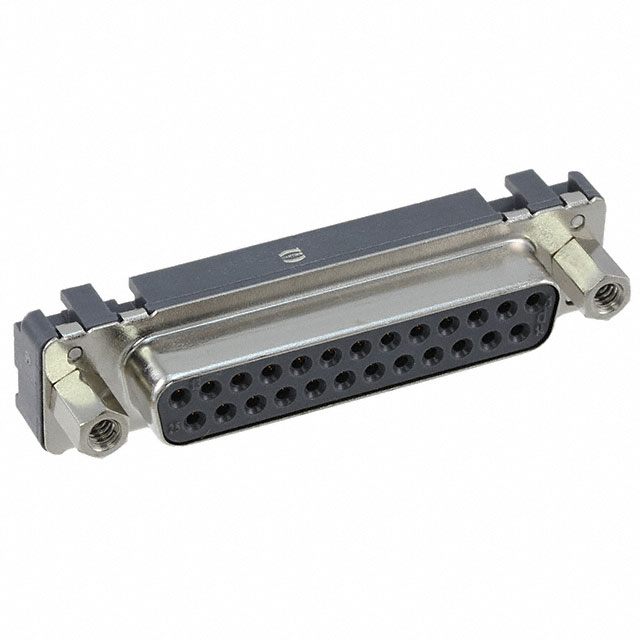

HARTING parts 09663516513, 09663517513, and 09663556513 are compatible alternatives with Board Lock features (Mating Side, Female Screwlock 4-40). These parts maintain the operating temperature range of -55°C to 125°C and carry ROHS3 compliance. Part 09663556513 specifically includes gold contact finish. These alternatives are appropriate for applications requiring mechanical locking capability.
Tier 3: Functional Alternatives (Obsolete Product Status)
NorComp Inc. parts 172-025-212R011, 172-025-212R021, and 172-025-212R911 are functionally compatible but carry Obsolete product status. These parts feature Panel Mount, Through Hole mounting configuration and lower current ratings (5A). The operating temperature range (-50°C to 100°C) does not fully encompass the original specification minimum of -55°C. These alternatives are suitable only for legacy system maintenance or when panel-mount configuration is required and design specifications permit the reduced operating temperature range.
Frequently Asked Questions (FAQ)
Q: Can the Amphenol ICC L77DB25SU directly replace the TE Connectivity 5-338315-2 without PCB modification?
A: Yes. The L77DB25SU maintains identical connector style, position count, row configuration, shell size, mounting type, and termination method. Both parts feature through-hole solder termination and unthreaded housing shells. The primary difference is packaging format (Tray versus Bulk) and extended operating temperature range in the substitute part.
Q: What is the significance of the current rating difference between the main part (6A) and substitute parts (7.5A)?
A: The higher current rating in substitute parts indicates greater current-carrying capacity. This difference does not prevent substitution; rather, it provides additional design margin. Applications designed for 6A operation will function within the 7.5A-rated substitute parts without performance degradation.
Q: Why do some HARTING substitute parts lack specified contact finish?
A: Contact finish specifications are not provided in the technical data for HARTING parts 09643127210, 09643127230, and 09643127240. This represents a data limitation rather than a functional deficiency. These parts maintain all other critical electrical and mechanical parameters and carry the same UL94 V-0 flammability rating.
Q: Are the NorComp parts suitable for new designs?
A: NorComp parts 172-025-212R011, 172-025-212R021, and 172-025-212R911 carry Obsolete product status. These parts are appropriate for legacy system maintenance or repair applications only. For new designs, Active status parts such as the Amphenol ICC L77DB25SU or HARTING alternatives are recommended.
Q: What is the difference between through-hole and panel-mount configurations?
A: Through-hole mounting positions the connector perpendicular to the PCB surface for vertical insertion. Panel-mount configuration includes a flange for surface mounting to an enclosure or panel. The TE Connectivity 5-338315-2 uses through-hole mounting. NorComp alternatives support both panel-mount and through-hole configurations, providing design flexibility for applications requiring panel integration.
Q: Do all substitute parts meet ROHS3 compliance?
A: All substitute parts listed carry either ROHS3 Compliant or RoHS Compliant status. The Amphenol ICC L77DB25SU carries RoHS Compliant status. All HARTING and NorComp alternatives carry ROHS3 Compliant status. Both compliance levels satisfy current regulatory requirements for electronic component manufacturing.
Q: What is the significance of the Board Lock feature in HARTING parts 09663516513, 09663517513, and 09663556513?
A: The Board Lock feature includes a Mating Side, Female Screwlock (4-40) mechanism that provides mechanical retention between mating connectors. This feature is not present in the original TE Connectivity 5-338315-2. Applications requiring mechanical locking capability should specify these HARTING alternatives; applications without this requirement can use any listed substitute.
Q: How does the operating temperature range affect part selection?
A: The TE Connectivity 5-338315-2 operates from -55°C to 105°C. Amphenol ICC L77DB25SU and HARTING parts 09663516513, 09663517513, and 09663556513 extend the upper limit to 125°C, providing additional thermal margin. NorComp parts operate from -50°C to 100°C, which does not fully encompass the original specification. Part selection should confirm that the substitute part's operating range meets or exceeds the application's thermal requirements.
Q: What packaging format differences exist between substitute parts?
A: The TE Connectivity 5-338315-2 is supplied in Bulk packaging. The Amphenol ICC L77DB25SU is supplied in Tray packaging. HARTING and NorComp parts are supplied in Bulk and Tray formats respectively. Packaging format does not affect electrical or mechanical compatibility; selection depends on inventory management and handling requirements.
