Winchester Interconnect 5319505 Coaxial Adapter Connector

Part Overview

The Winchester Interconnect 5319505 is an RF coaxial adapter connector designed to convert between TNC and SMA connector series. This adapter features a TNC plug (male pin) on one end and an SMA jack (female socket) on the opposite end, maintaining 50-ohm impedance throughout the signal path. The connector operates across a frequency range up to 1 GHz and is rated for operating temperatures between -55°C and 100°C. The part is currently in active production status with 1,098 units available in inventory. Equivalent and substitute parts are identified when they maintain identical electrical specifications, mechanical compatibility, and functional performance characteristics within the same coaxial connector category.

Key Parameters

Parameter	Value
Manufacturer Part Number	5319505
Manufacturer	Winchester Interconnect
Category	Coaxial Connectors (RF)
Description	CONN ADAPT TNC PLUG TO SMA JACK
Adapter Type	Plug to Jack
Conversion Type	Between Series
Adapter Series	SMA to TNC
Convert From	TNC Plug, Male Pin
Convert To	SMA Jack, Female Socket
Impedance	50 Ohms
Style	Straight
Mounting Type	Free Hanging (In-Line)
Fastening Type	Threaded, Threaded
Frequency - Max	1 GHz
Center Contact Plating	Gold
Body Material	Brass
Body Finish	Nickel
Center Contact Material	Brass
Operating Temperature	-55°C ~ 100°C
Product Status	Active
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the Winchester Interconnect 5319505 are identified based on strict electrical and mechanical compatibility criteria. The primary substitution parameters are:

Critical Matching Parameters:

Adapter type: Plug to Jack configuration
Conversion type: Between Series (SMA to TNC)
Connector gender configuration: TNC Plug (Male Pin) to SMA Jack (Female Socket)
Impedance: 50 Ohms
Style: Straight orientation
Mounting type: Free Hanging (In-Line)
Fastening type: Threaded connections on both ends

Identified Substitutes:

The Amphenol RF 242105 maintains all critical electrical and mechanical parameters identical to the main part. This adapter provides equivalent functionality with TNC plug to SMA jack conversion at 50-ohm impedance in a straight, free-hanging configuration.

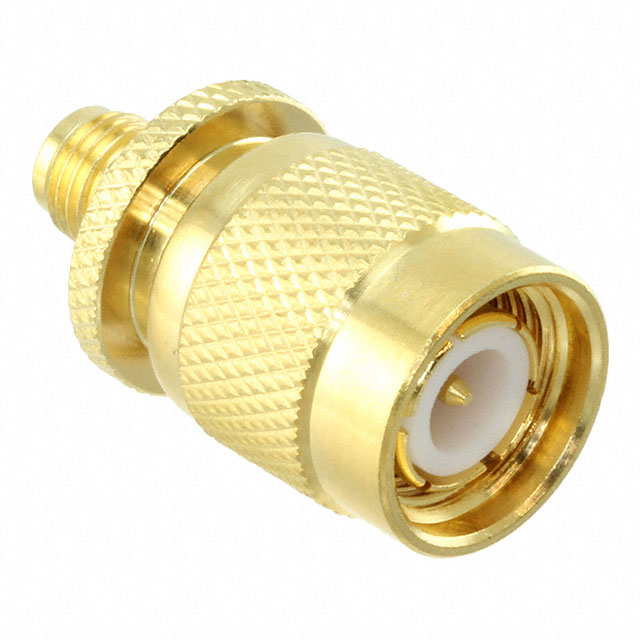

The Pomona Electronics 4293 provides functional equivalence with reversed connector orientation (SMA jack to TNC plug conversion). While the connector ends are reversed relative to the main part, the electrical characteristics and mechanical mounting remain compatible for applications requiring this specific orientation.

Parameter Comparison

Parameter	Winchester 5319505	Amphenol RF 242105	Pomona Electronics 4293
Category	Coaxial Connectors (RF)	Coaxial Connectors (RF)	Coaxial Connectors (RF)
Adapter Type	Plug to Jack	Plug to Jack	Plug to Jack
Conversion Type	Between Series	Between Series	Between Series
Adapter Series	SMA to TNC	SMA to TNC	SMA to TNC
Convert From	TNC Plug, Male Pin	TNC Plug, Male Pin	SMA Jack, Female Socket
Convert To	SMA Jack, Female Socket	SMA Jack, Female Socket	TNC Plug, Male Pin
Impedance	50 Ohms	50 Ohms	50 Ohms
Style	Straight	Straight	Straight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Fastening Type	Threaded, Threaded	Threaded, Threaded	Threaded, Threaded
Frequency - Max	1 GHz	11 GHz	12.4 GHz
Center Contact Plating	Gold	Gold	Gold
Body Material	Brass	Brass	Beryllium Copper
Body Finish	Nickel	Nickel	Gold
Operating Temperature	-55°C ~ 100°C	-65°C ~ 165°C	-65°C ~ 165°C
Product Status	Active	Active	Active
RoHS Status	RoHS Compliant	ROHS3 Compliant	Not applicable

Engineering Selection Recommendations

Amphenol RF 242105 Selection Criteria:

The Amphenol RF 242105 is a direct functional equivalent to the Winchester Interconnect 5319505. Both parts maintain identical connector configurations (TNC plug to SMA jack), impedance (50 ohms), and mechanical mounting specifications. The Amphenol part carries ROHS3 compliance certification, which exceeds the RoHS compliance of the main part. The maximum frequency rating of 11 GHz on the Amphenol part exceeds the 1 GHz specification of the Winchester part, providing additional operational headroom. The extended operating temperature range (-65°C to 165°C) of the Amphenol part encompasses the Winchester operating range (-55°C to 100°C). This part is suitable for direct substitution in applications where the Winchester 5319505 is specified.

Pomona Electronics 4293 Selection Criteria:

The Pomona Electronics 4293 provides equivalent electrical performance with reversed connector orientation. This part converts from SMA jack to TNC plug, opposite to the main part's TNC plug to SMA jack configuration. The Pomona part is suitable for applications requiring the reversed connector orientation while maintaining 50-ohm impedance and identical mechanical mounting characteristics. The maximum frequency rating of 12.4 GHz and extended operating temperature range (-65°C to 165°C) provide performance margins beyond the main part specifications. The Pomona part carries REACH Unaffected status and is not subject to RoHS requirements.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol RF 242105 be used as a direct replacement for the Winchester Interconnect 5319505?

A: Yes. Both parts maintain identical connector configurations (TNC plug to SMA jack), 50-ohm impedance, straight orientation, and free-hanging in-line mounting. The Amphenol part meets or exceeds all electrical and mechanical specifications of the Winchester part.

Q: What is the functional difference between the Amphenol RF 242105 and the Pomona Electronics 4293?

A: The Amphenol RF 242105 converts TNC plug to SMA jack, matching the Winchester 5319505 configuration. The Pomona Electronics 4293 converts SMA jack to TNC plug, providing reversed connector orientation. Both maintain 50-ohm impedance and identical mechanical mounting.

Q: Are there packaging differences between these three coaxial adapter connectors?

A: Yes. The Winchester 5319505 is supplied in standard packaging. The Amphenol RF 242105 is packaged in bags. The Pomona Electronics 4293 is supplied in bulk packaging. Packaging selection depends on application requirements and inventory management practices.

Q: Do all three parts operate at the same frequency range?

A: No. The Winchester 5319505 operates to 1 GHz maximum frequency. The Amphenol RF 242105 operates to 11 GHz. The Pomona Electronics 4293 operates to 12.4 GHz. Both substitute parts support higher frequency applications than the main part.

Q: What are the operating temperature differences between these adapters?

A: The Winchester 5319505 operates from -55°C to 100°C. Both the Amphenol RF 242105 and Pomona Electronics 4293 operate from -65°C to 165°C, providing extended temperature range capability.

Q: Are all three parts RoHS compliant?

A: The Winchester 5319505 is RoHS Compliant. The Amphenol RF 242105 is ROHS3 Compliant. The Pomona Electronics 4293 is not subject to RoHS requirements (Not applicable status).

Q: Which substitute part should be selected for applications requiring maximum frequency capability?

A: The Pomona Electronics 4293 provides the highest maximum frequency rating at 12.4 GHz. Selection between the Amphenol RF 242105 (11 GHz) and Pomona Electronics 4293 (12.4 GHz) depends on specific application frequency requirements and connector orientation needs.

Q: Can the Pomona Electronics 4293 be used in place of the Winchester 5319505 if the connector orientation is reversed in the application?

A: Yes, provided the application circuit design accommodates the reversed connector orientation (SMA jack to TNC plug instead of TNC plug to SMA jack). The electrical performance and mechanical mounting characteristics are equivalent.
