TE Connectivity AMP Connectors 4-87456-5 Equivalent & Substitute Parts

Part Overview

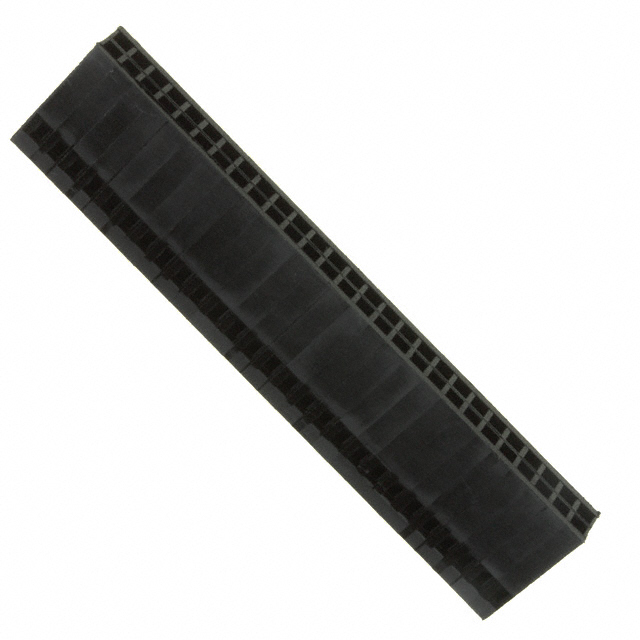

The TE Connectivity AMP Connectors 4-87456-5 is a 54-position rectangular connector receptacle housing designed for 0.100" (2.54mm) pitch applications. This component functions as a receptacle housing for female socket contacts in dual-row configurations and is classified as an active product with full RoHS compliance. Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, inventory management, or supply chain continuity while maintaining connector interface compatibility.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	54
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature Range	-65°C ~ 105°C
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 4-87456-5 are identified based on strict equivalence of the following critical parameters:

Connector Type & Contact Configuration: Receptacle housing with female socket contacts
Position Count & Pitch: 54 positions at 0.100" (2.54mm) pitch
Physical Layout: Dual-row configuration with 0.100" (2.54mm) row spacing
Mounting & Termination: Free hanging in-line mounting with crimp termination
Environmental Compliance: RoHS compliance and MSL rating of 1

The substitute part Amphenol ICC (FCI) 65043-010LF meets all these critical parameters, enabling direct functional substitution in applications requiring 54-position rectangular connectors at 2.54mm pitch with female socket contacts.

Parameter Comparison

Parameter	TE Connectivity 4-87456-5	Amphenol ICC (FCI) 65043-010LF	Compatibility
Connector Type	Receptacle	Receptacle	Equivalent
Contact Type	Female Socket	Female Socket	Equivalent
Number of Positions	54	54	Equivalent
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	Equivalent
Number of Rows	2	2	Equivalent
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	Equivalent
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Equivalent
Contact Termination	Crimp	Crimp	Equivalent
Color	Black	Black	Equivalent
Operating Temperature Range	-65°C ~ 105°C	-40°C ~ 105°C	Overlapping Range
RoHS Status	RoHS Compliant	RoHS Compliant	Equivalent
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	Equivalent

Engineering Selection Recommendations

Both the TE Connectivity 4-87456-5 and Amphenol ICC (FCI) 65043-010LF are active products with RoHS compliance and MSL rating of 1. Selection between these parts is based on the following criteria:

TE Connectivity 4-87456-5: Select this part when the extended lower operating temperature limit of -65°C is required for applications operating in extreme cold environments. This part is suitable for applications requiring the full AMPMODU Mod IV series compatibility.

Amphenol ICC (FCI) 65043-010LF: Select this part when supply chain availability is prioritized or when the operating temperature range of -40°C ~ 105°C is sufficient for the application. This part offers REACH compliance status and is part of the Mini-PV™ Basics+ series.

Both parts are electrically and mechanically equivalent for standard applications operating within the -40°C ~ 105°C temperature range.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol ICC (FCI) 65043-010LF directly replace the TE Connectivity 4-87456-5 in all applications?

A: The Amphenol ICC (FCI) 65043-010LF is a direct functional substitute for applications operating within the -40°C ~ 105°C temperature range. Applications requiring operation below -40°C must use the TE Connectivity 4-87456-5 due to its extended lower temperature limit of -65°C.

Q: What are the critical parameters that define substitution compatibility?

A: Substitution compatibility is determined by: 54-position count, 0.100" (2.54mm) pitch, dual-row configuration with 0.100" (2.54mm) row spacing, receptacle housing type, female socket contacts, free hanging in-line mounting, crimp termination, and black color. All these parameters must match for direct substitution.

Q: Are both parts RoHS compliant?

A: Yes, both the TE Connectivity 4-87456-5 and Amphenol ICC (FCI) 65043-010LF are RoHS compliant. Both parts also carry MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions.

Q: What is the difference in insulation material between these parts?

A: The TE Connectivity 4-87456-5 uses Polyamide (PA), Nylon, Glass Filled insulation material. The Amphenol ICC (FCI) 65043-010LF uses Polyphenylene, Modified insulation material. Both materials are suitable for the specified operating temperature ranges and environmental conditions.

Q: Do these parts include contacts?

A: No, both the TE Connectivity 4-87456-5 and Amphenol ICC (FCI) 65043-010LF are receptacle housings supplied without contacts. Contacts must be sourced separately and crimped into the housing.

Q: What is the difference in REACH status between these parts?

A: The TE Connectivity 4-87456-5 has undefined REACH status from the vendor. The Amphenol ICC (FCI) 65043-010LF is listed as REACH Affected. Applications subject to REACH regulations should verify compliance requirements with the respective manufacturers.
