461W-RAG24H-CWO Equivalent & Substitute Parts

Part Overview

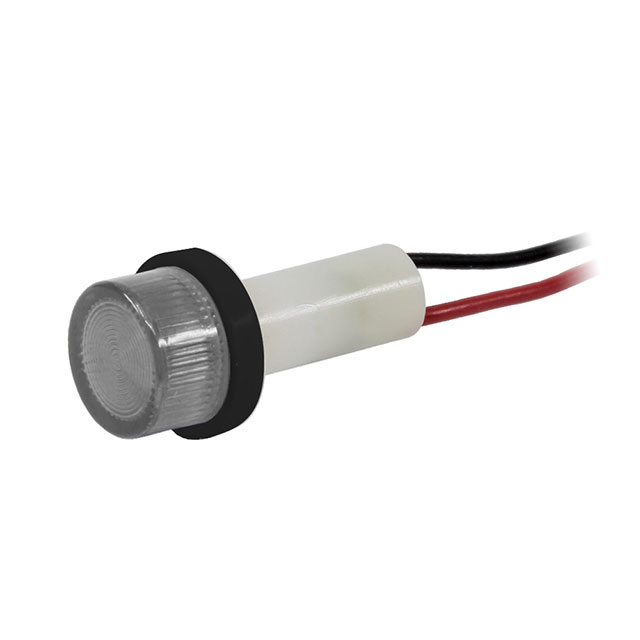

The 461W-RAG24H-CWO is a Panel Indicator LED manufactured by Visual Communications Company (VCC) in a 0.250" cylindrical format, designed for 24V operation. This component is classified as Obsolete, which necessitates identification of functionally equivalent substitute parts for ongoing maintenance and new design applications. The obsolete status requires engineers to evaluate active alternative components that maintain compatibility with existing circuit requirements and mechanical mounting specifications.

Substiute Parts

461W-RAG24H-CWO

Visual Communications Company - VCCIn Stock: 1174461W-RAG24H-CWO Datasheet

Current PartRFQ

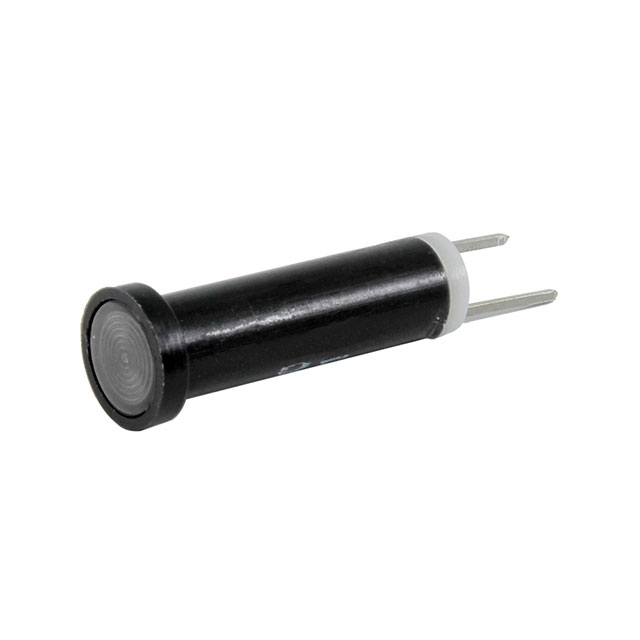

44-RAG12H-CWO

Visual Communications Company - VCCIn Stock: 89244-RAG12H-CWO Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 461W-RAG24H-CWO is determined by the following critical parameters:

Mechanical Compatibility:

• Panel cutout shape and dimensions (0.250" / 6.35mm round format)
• Lens size and style (cylindrical presentation)
• Termination style (PC Pin configuration)

Electrical Compatibility:

• Voltage rating tolerance and operational range
• Current consumption specifications
• DC/AC rating classification

Regulatory & Environmental:

• RoHS3 compliance status
• ECCN and HTSUS classification alignment
• Moisture sensitivity level designation

The substitute part 44-RAG12H-CWO shares the same mechanical mounting envelope (0.250" panel cutout), identical termination style (PC Pin), and equivalent regulatory compliance (ROHS3 Compliant, EAR99 ECCN). However, the voltage rating differs (12V vs. 24V), which represents a functional distinction requiring circuit-level evaluation.

Parameter Comparison

Engineering Selection Recommendations

Mechanical Substitution Feasibility: The 44-RAG12H-CWO maintains identical panel mounting specifications (0.250" cutout diameter) and shares the same form factor classification as the 461W-RAG24H-CWO. Direct mechanical interchange is supported without panel modification.

Electrical Substitution Constraints: The primary distinction between these components is the voltage rating: 461W-RAG24H-CWO operates at 24V while 44-RAG12H-CWO operates at 12V. Electrical substitution requires circuit-level voltage supply compatibility. If the host circuit provides 24V supply, the 44-RAG12H-CWO cannot be directly substituted without additional voltage regulation or series resistance modification.

Regulatory Compliance: Both components maintain ROHS3 compliance and identical ECCN/HTSUS classifications, supporting regulatory continuity in applications subject to these standards.

Product Status Consideration: The 461W-RAG24H-CWO is classified as Obsolete. The 44-RAG12H-CWO is classified as Active with confirmed inventory availability (800 Pcs), supporting long-term supply chain reliability for new designs or maintenance applications requiring 12V operation.

Frequently Asked Questions (FAQ)

Q: Can the 44-RAG12H-CWO directly replace the 461W-RAG24H-CWO in existing equipment?

A: Mechanical substitution is supported due to identical 0.250" panel cutout dimensions and PC Pin termination. Electrical substitution requires verification that the host circuit operates at 12V. If the circuit supplies 24V, direct substitution will result in component overvoltage and failure.

Q: What is the primary reason for seeking a substitute for the 461W-RAG24H-CWO?

A: The 461W-RAG24H-CWO is classified as Obsolete. Substitute identification is necessary to ensure component availability for maintenance, repair, and new design applications.

Q: Are there regulatory compliance differences between these components?

A: No. Both components are ROHS3 Compliant, classified as EAR99 for export control purposes, and share identical HTSUS codes (8541.41.0000).

Q: What packaging format is available for the 44-RAG12H-CWO?

A: The 44-RAG12H-CWO is supplied in Bulk packaging with 800 Pcs currently in stock.

Q: Does the 44-RAG12H-CWO offer color options?

A: Yes. The 44-RAG12H-CWO is available in Amber, Green, and Red lamp colors with Clear lens transparency and 60° viewing angle.

Q: What is the current consumption of the 44-RAG12H-CWO?

A: The 44-RAG12H-CWO is rated for 20mA operation at 12V.
