Honeywell 43C25K Wirewound Potentiometer - Equivalent & Substitute Parts

Part Overview

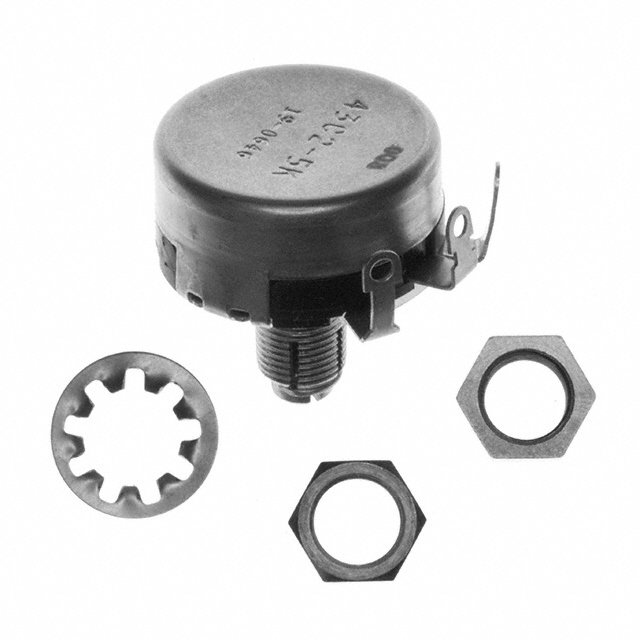

The Honeywell 43C25K is a 5k Ohm, 2W wirewound linear potentiometer designed for panel mount applications with a 1-turn rotation and solder lug termination. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain design continuity and ensure supply chain availability for new production and maintenance applications.

Substiute Parts

43C25K

Honeywell Sensing and Productivity SolutionsIn Stock: 78943C25K Datasheet

Current PartRFQ

RHL5K0E

OhmiteIn Stock: 1110RHL5K0E Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Honeywell 43C25K is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Resistance value: 5k Ohm
• Taper type: Linear
• Number of turns: 1
• Resistive material: Wirewound
• Termination style: Solder Lug
• Mounting type: Panel Mount
• Bushing thread: 3/8-32
• Rotation angle: 300°

Allowable Variation Parameters:

• Power rating: Substitute must equal or exceed the original 2W specification
• Tolerance: Substitute tolerance may differ within acceptable engineering margins
• Body diameter: Substitute may vary if mechanical fit permits within panel cutout specifications
• Actuator length: Substitute may vary if operational clearance is maintained
• Product status: Active status preferred for supply continuity

The Ohmite RHL5K0E meets all mandatory matching parameters and exceeds the power rating requirement, qualifying it as a direct functional substitute.

Parameter Comparison

Engineering Selection Recommendations

Ohmite RHL5K0E as Primary Substitute:

The Ohmite RHL5K0E is the qualified substitute for the obsolete Honeywell 43C25K based on the following engineering criteria:

1. Functional Equivalence: All mandatory electrical and mechanical parameters align with the original specification, including 5k Ohm resistance, linear taper, 1-turn configuration, wirewound construction, and solder lug termination.

2. Power Rating Enhancement: The RHL5K0E provides 25W power rating compared to the original 2W specification, offering superior thermal performance and operational margin in applications requiring sustained power dissipation.

3. Active Product Status: The RHL5K0E maintains active production status, ensuring long-term supply availability and technical support continuity.

4. Compliance Certification: The RHL5K0E is ROHS3 compliant, meeting current regulatory requirements for electronic component manufacturing and distribution.

5. Tolerance Consideration: The RHL5K0E tolerance of ±10% compared to the original ±5% represents a measurable but acceptable variation for most potentiometer applications where precision control is not the primary function.

6. Physical Accommodation: The RHL5K0E body diameter of 1.560" (39.62mm) is larger than the original 1.126" (28.60mm), requiring verification that the panel cutout and mounting space accommodate the increased size.

Frequently Asked Questions (FAQ)

Q: Can the Ohmite RHL5K0E directly replace the Honeywell 43C25K in existing designs?

A: Electrical and functional replacement is direct. Mechanical verification is required to confirm that the larger body diameter (1.560" versus 1.126") fits within the existing panel cutout and mounting space.

Q: What is the significance of the power rating difference between 2W and 25W?

A: The substitute part exceeds the original power specification, providing enhanced thermal capacity. This is advantageous for applications with sustained power dissipation and does not create incompatibility with the original 2W design requirement.

Q: Does the tolerance difference of ±5% versus ±10% affect circuit performance?

A: Tolerance variation depends on application requirements. For applications where potentiometer resistance value directly affects circuit function (such as precision timing or filtering circuits), the ±10% tolerance of the substitute should be evaluated against circuit specifications. For general adjustment and control applications, this variation is typically acceptable.

Q: Are there packaging differences between the original and substitute?

A: The Honeywell 43C25K is specified with standard packaging, while the Ohmite RHL5K0E is supplied in bulk packaging. This affects procurement and handling procedures but does not impact component performance or compatibility.

Q: What compliance certifications apply to the substitute part?

A: The Ohmite RHL5K0E is ROHS3 compliant and carries EAR99 export classification, meeting current regulatory standards for electronic component distribution and use in regulated markets.

Q: Are the actuator specifications identical between the two parts?

A: Both parts feature slotted actuators with 0.250" (6.35mm) diameter. The RHL5K0E actuator length is 0.750" (19.05mm) compared to the original 0.625" (15.88mm), requiring clearance verification in the application environment.
