Equivalent & Substitute Parts Reference: VCC 4317

Part Overview

The VCC 4317 is a yellow lens cap with 180° wide viewing angle, designed for single LED applications in general-purpose configurations. This component features a round lens with flat top profile, 7.11mm diameter, and snap-in mounting capability. The part is classified as obsolete, necessitating identification of active substitute components that maintain functional and mechanical compatibility for ongoing production and maintenance requirements.

Substiute Parts

4317

Visual Communications Company - VCCIn Stock: 10564317 Datasheet

Current PartRFQ

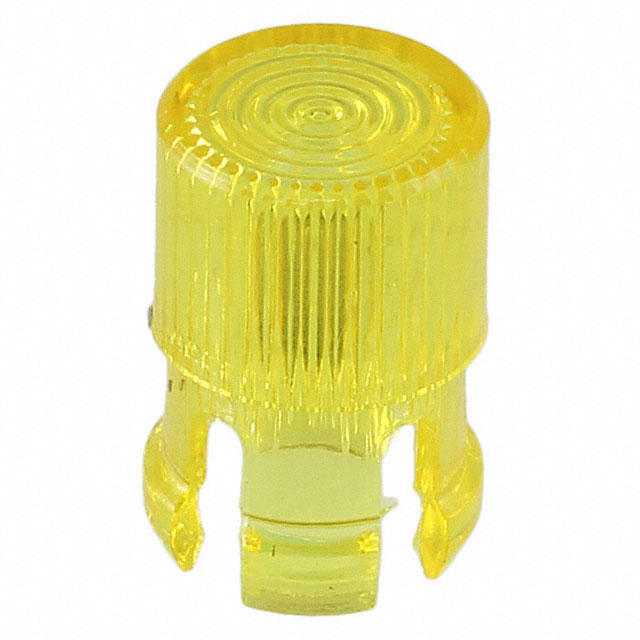

CLF_280_YTP

Visual Communications Company - VCCIn Stock: 2907CLF_280_YTP Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the VCC 4317 is based on the following critical parameters that must align between the main part and substitute components:

Primary Compatibility Criteria:

• Color: Yellow
• Lens Size: 7.11mm Dia
• Lens Style: Round with Flat Top
• Number of LEDs: 1
• Mounting Type: Snap-In
• Material: Polycarbonate
• RoHS Compliance: ROHS3 Compliant

The identified substitute CLF_280_YTP maintains all primary compatibility criteria. Variations in optical pattern (Wide versus Fresnel Ring) and viewing angle specification do not preclude substitution, as both configurations serve general-purpose LED applications with the same physical form factor and mounting interface.

Parameter Comparison

Engineering Selection Recommendations

The CLF_280_YTP serves as the direct substitute for the obsolete VCC 4317. Selection is based on the following engineering factors:

Product Status: The CLF_280_YTP maintains active product status with 2867 units in current inventory, ensuring supply continuity for applications previously served by the VCC 4317.

Regulatory Compliance: Both components satisfy ROHS3 and REACH requirements, maintaining compliance with current environmental and hazardous substance regulations.

Physical and Functional Compatibility: Identical lens diameter (7.11mm), lens style (round with flat top), color (yellow), and snap-in mounting interface ensure direct mechanical compatibility in existing assemblies.

Optical Characteristics: While the VCC 4317 specifies a 180° wide viewing angle and the CLF_280_YTP features a Fresnel ring optical pattern, both configurations are designed for general-purpose LED applications and maintain the same physical form factor.

Frequently Asked Questions (FAQ)

Q: Can the CLF_280_YTP directly replace the VCC 4317 in existing designs?

A: Yes. The CLF_280_YTP maintains identical lens diameter (7.11mm), lens style (round with flat top), color (yellow), material (polycarbonate), and snap-in mounting interface. Physical compatibility is confirmed across all critical parameters.

Q: What is the difference between the 180° wide viewing angle and Fresnel ring optical pattern?

A: The VCC 4317 specifies a wide optical pattern with 180° viewing angle. The CLF_280_YTP features a Fresnel ring optical pattern. Both configurations are designed for general-purpose single LED applications and maintain identical physical dimensions and mounting characteristics.

Q: Are there packaging differences between these components?

A: The VCC 4317 is specified with dash packaging notation, while the CLF_280_YTP is supplied in bulk packaging. This difference does not affect component functionality or mechanical compatibility.

Q: Do both parts meet current regulatory requirements?

A: Yes. Both the VCC 4317 and CLF_280_YTP are ROHS3 compliant and REACH unaffected, satisfying current environmental and hazardous substance regulations.

Q: Why is the VCC 4317 classified as obsolete?

A: The VCC 4317 is no longer in active production. The CLF_280_YTP represents the current active equivalent from Visual Communications Company for this lens cap category.
