TE Connectivity AMP Connectors 4-172211-5 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 4-172211-5 is a 5-position rectangular connector housing designed for plug applications with a 0.098" (2.50mm) pitch. This connector operates as a free-hanging, in-line component with crimp-style contact termination and is manufactured from polyamide (PA66) nylon 6/6 material. The part is actively produced and RoHS compliant, making it suitable for applications requiring standardized rectangular connector housings. Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when specific packaging or color requirements necessitate alternative selection.

Substiute Parts

4-172211-5

TE Connectivity AMP ConnectorsIn Stock: 7164-172211-5 Datasheet

Current PartRFQ

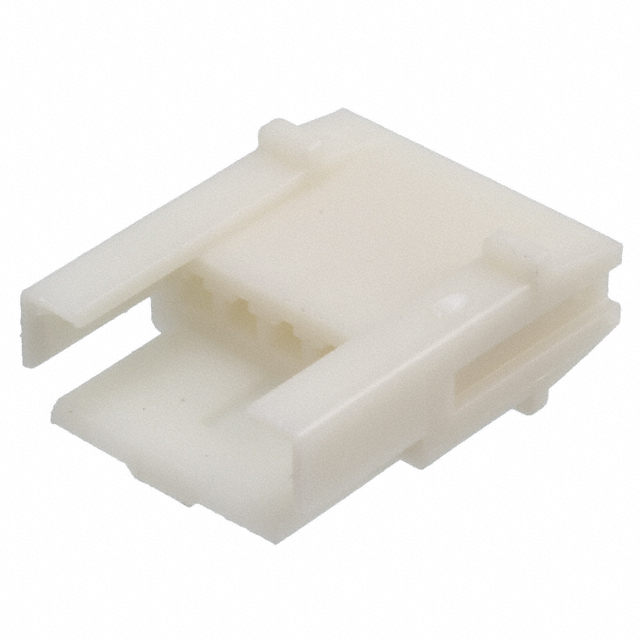

172211-5

TE Connectivity AMP ConnectorsIn Stock: 8841172211-5 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 4-172211-5 are identified based on strict parametric equivalence across all critical electrical and mechanical specifications. The substitution logic is based on the following key parameters that must remain constant:

• Connector Type: Plug housing configuration
• Contact Type: Male pin contact design
• Number of Positions: 5-position configuration
• Pitch: 0.098" (2.50mm) contact spacing
• Number of Rows: Single-row arrangement
• Mounting Type: Free-hanging, in-line installation
• Contact Termination: Crimp-style termination method
• Insulation Material: Polyamide (PA66) nylon 6/6 composition
• Series: EI series designation
• RoHS Compliance: RoHS compliant status

Variations in color and packaging do not affect functional interchangeability when all electrical and mechanical parameters remain identical. The substitute part 172211-5 maintains complete parametric equivalence to the main part number 4-172211-5 across all critical specifications.

Parameter Comparison

Engineering Selection Recommendations

Both the 4-172211-5 and 172211-5 are active, RoHS-compliant products manufactured by TE Connectivity AMP Connectors within the EI series. Selection between these parts is determined by specific application requirements and availability constraints rather than functional differences.

The 4-172211-5 features a blue housing color and is available in standard packaging with 674 pieces in current inventory. The 172211-5 substitute features a natural housing color and is available in bulk packaging with 8,824 pieces in current inventory. Both parts maintain identical electrical and mechanical specifications, including 5-position configuration, 0.098" (2.50mm) pitch, crimp termination, and polyamide (PA66) nylon 6/6 insulation material.

Selection should be based on color requirements for the end application and packaging volume needs. Both parts carry identical RoHS compliance status, MSL rating of 1 (Unlimited), and export classification (EAR99). No functional performance differences exist between these parts when applied to equivalent circuit designs and connector mating configurations.

Frequently Asked Questions (FAQ)

Q: Are the 4-172211-5 and 172211-5 parts functionally interchangeable?

A: Yes. Both parts are parametrically equivalent across all critical electrical and mechanical specifications, including connector type, contact configuration, position count, pitch, mounting style, termination method, and insulation material. The parts differ only in housing color (blue versus natural) and packaging format.

Q: What is the primary difference between these substitute parts?

A: The 4-172211-5 is supplied with a blue housing, while the 172211-5 substitute features a natural (undyed) housing color. Both parts are manufactured from identical polyamide (PA66) nylon 6/6 material and maintain all other specifications without variation.

Q: Does the color difference affect electrical performance?

A: No. Housing color is a cosmetic specification that does not impact electrical performance, signal integrity, or mechanical function. Color selection is determined by application requirements, assembly identification standards, or customer specifications.

Q: What packaging options are available?

A: The 4-172211-5 is available in standard packaging, while the 172211-5 is available in bulk packaging. Packaging format does not affect component specifications or performance.

Q: Are both parts RoHS compliant?

A: Yes. Both the 4-172211-5 and 172211-5 are RoHS compliant and carry identical MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling.

Q: Can I use these parts interchangeably in existing designs?

A: Yes, provided that the application does not have specific color requirements. Both parts maintain identical mating characteristics with standard EI series receptacle housings and contacts. Verify that your design does not specify color as a functional requirement.

Q: What is the contact pitch specification?

A: Both parts feature a 0.098" (2.50mm) contact pitch, which defines the center-to-center spacing between adjacent contact positions in the 5-position housing.

Q: Are contacts included with these housings?

A: No. Both the 4-172211-5 and 172211-5 are housings only. Contacts must be sourced separately and installed using the crimp termination method specified for these parts.
