3M 40132 Equivalent & Substitute Parts

Part Overview

The 3M 40132 is a Scotchlok™ aluminum two-hole lug terminal designed for grounding applications with 1/0 AWG wire and 3/8" stud connection. This non-insulated, crimp-barrel terminal is manufactured from aluminum with a tan color finish and is currently in active product status with 2840 pieces available in stock.

Substitute parts become necessary when the primary part reaches end-of-life status, inventory depletion, or when alternative sourcing is required for supply chain continuity. The 3M 40132 maintains active status; however, equivalent alternatives exist that meet the same electrical and mechanical specifications.

Substiute Parts

40132

3MIn Stock: 285040132 Datasheet

Current PartRFQ

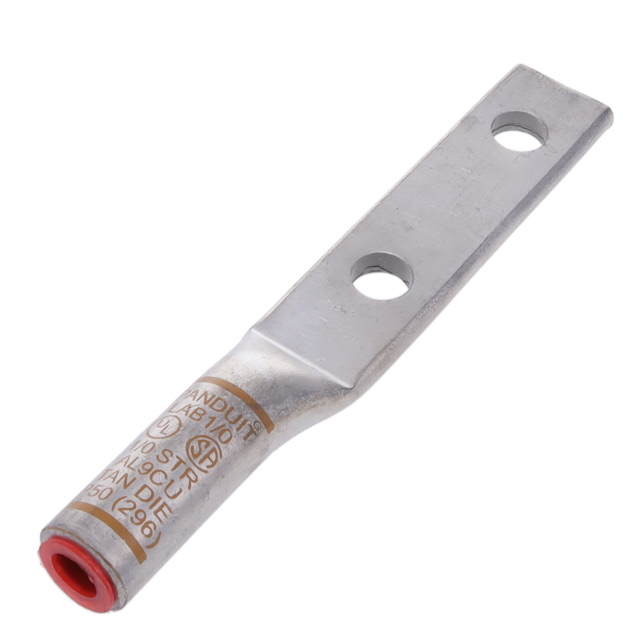

LAB1/0-38-X

Panduit CorpIn Stock: 930LAB1/0-38-X Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 3M 40132 is determined by strict equivalence across the following critical parameters:

• Wire gauge compatibility: 1/0 AWG
• Stud connection size: 3/8"
• Terminal configuration: Two stud holes for grounding applications
• Termination method: Crimp barrel connection
• Contact material: Aluminum
• Mounting orientation: Free hanging, in-line configuration
• Barrel outer diameter: 0.640" (16.26mm)

The Panduit Corp LAB1/0-38-X meets these core substitution criteria. While minor variations exist in barrel inner diameter (0.394" vs. 0.414"), overall length (5.330" vs. 5.281"), and width (0.880" vs. 0.875"), these differences remain within acceptable tolerance ranges for mechanical fit and electrical performance in grounding terminal applications.

Parameter Comparison

Engineering Selection Recommendations

The 3M 40132 remains the primary selection for new designs and applications due to its active product status and current availability of 2840 pieces in stock. Both parts maintain full RoHS and REACH compliance, ensuring regulatory alignment for industrial grounding applications.

The Panduit LAB1/0-38-X serves as a functional equivalent for existing installations or legacy system maintenance where the 3M 40132 becomes unavailable. The Panduit part carries obsolete status; therefore, it should be selected only when the primary part cannot be sourced. The minor dimensional variations between the two parts do not affect electrical performance or mechanical compatibility in standard grounding terminal applications.

Frequently Asked Questions (FAQ)

Q: Can the Panduit LAB1/0-38-X directly replace the 3M 40132 in existing installations?

A: Yes. Both terminals accept 1/0 AWG wire, connect to 3/8" studs, and use crimp-barrel termination. The dimensional differences (barrel ID, overall length, and width) are within acceptable mechanical tolerances for grounding applications.

Q: What is the significance of the barrel inner diameter difference between the two parts?

A: The 3M 40132 has a barrel ID of 0.414" while the Panduit part has 0.394". This 0.020" difference accommodates slight variations in wire stranding and crimp tool specifications. Both diameters are suitable for secure 1/0 AWG wire termination.

Q: Why is the Panduit part listed as obsolete?

A: Obsolete status indicates the manufacturer has discontinued production. The part remains functionally equivalent but should not be selected for new designs. Use the 3M 40132 for new applications.

Q: Are there packaging differences between these parts?

A: Yes. The 3M 40132 is supplied in box packaging, while the Panduit LAB1/0-38-X is supplied in bulk packaging. Verify packaging requirements for your procurement and inventory management processes.

Q: Do both parts meet current regulatory requirements?

A: Yes. The 3M 40132 is RoHS Compliant and REACH Unaffected. The Panduit LAB1/0-38-X is ROHS3 Compliant and REACH Unaffected. Both meet current environmental and safety standards.
