Phoenix Contact 2967439 General Purpose Relay SPDT 6A 12V - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 2967439 is a general purpose relay with Single Pole Double Throw (SPDT) contact configuration, rated for 6A at 12VDC coil voltage. This relay is designed for DIN rail mounting and features a lighted indicator with socket inclusion. The part is currently classified as obsolete, making identification of suitable substitute components essential for system maintenance and new design implementations where equivalent functionality is required.

Substiute Parts

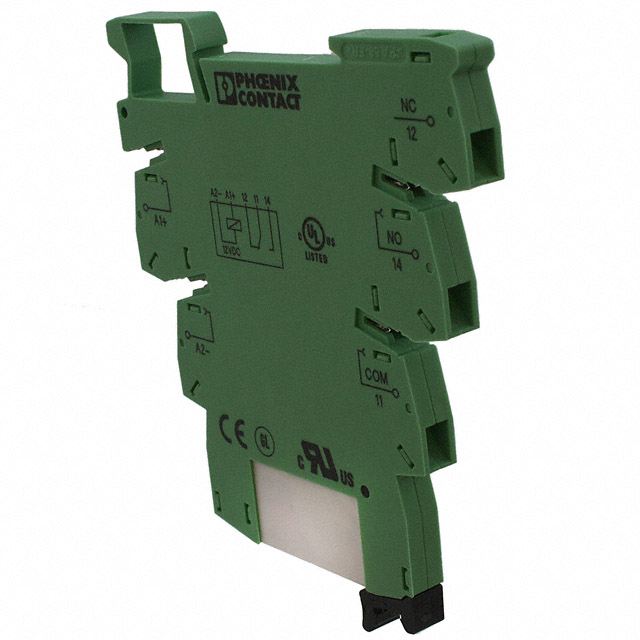

2967439

Phoenix ContactIn Stock: 7772967439 Datasheet

Current PartRFQ

2900316

Phoenix ContactIn Stock: 14652900316 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 2967439 is determined by the following critical parameters that must remain constant across equivalent components:

• Coil voltage: 12VDC
• Contact form: SPDT (1 Form C)
• Contact current rating: 6 A
• Switching voltage: 250VAC, 250VDC maximum
• Coil current: 15.3 mA
• Mounting type: DIN Rail
• Termination style: Spring Terminal
• Coil type: Non Latching
• Contact material: Silver Tin Oxide (AgSnO)

The Phoenix Contact 2900316 meets all substitution criteria as a direct equivalent, with identical electrical specifications and mechanical compatibility. The primary distinction is product status and compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 2900316 is the direct substitute for the obsolete 2967439. Both components share identical electrical and mechanical specifications, ensuring functional equivalence in circuit applications. The 2900316 offers the advantage of active product status, ensuring continued availability and support. The substitute component provides an extended operating temperature range (-40°C to 60°C versus -25°C to 60°C), offering improved performance in lower temperature environments. The 2900316 carries ROHS3 compliance and REACH affected status, meeting current regulatory requirements for new designs and system upgrades.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 2900316 directly replace the 2967439 in existing installations?

A: Yes. Both relays share identical coil voltage (12VDC), contact form (SPDT), current rating (6A), switching voltage (250VAC/250VDC), and termination style (Spring Terminal). DIN rail mounting compatibility is maintained. No circuit modifications are required.

Q: What is the primary reason for substitution?

A: The 2967439 is classified as obsolete. The 2900316 is an active product from the same manufacturer with equivalent specifications, ensuring long-term availability and supply chain continuity.

Q: Are there differences in operating temperature ranges?

A: The 2900316 operates from -40°C to 60°C, compared to the 2967439 range of -25°C to 60°C. The substitute provides extended low-temperature capability.

Q: Do both relays require the same socket and mounting hardware?

A: Both components feature Spring Terminal termination and DIN rail mounting. Socket compatibility is maintained as both include socket inclusion in their feature set.

Q: What compliance certifications apply to the substitute part?

A: The 2900316 carries ROHS3 compliance and is REACH affected, meeting current environmental and regulatory standards for electronic components.
