TE Connectivity AMP Connectors 280580-2 Equivalent & Substitute Parts

Part Overview

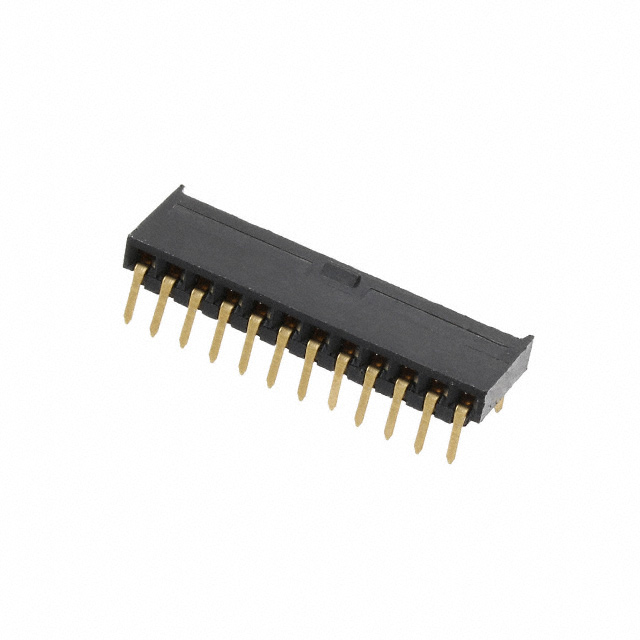

The TE Connectivity AMP Connectors 280580-2 is a 12-position receptacle connector from the AMPMODU Mod II series, designed for board-to-board applications with 0.100" (2.54mm) pitch spacing. This connector features through-hole, right-angle mounting with solder termination and gold-plated mating contacts. The product is classified as obsolete, necessitating identification of equivalent substitute components for ongoing design requirements and procurement needs.

Substiute Parts

280580-2

TE Connectivity AMP ConnectorsIn Stock: 1045280580-2 Datasheet

Current PartRFQ

399-43-112-10-003000

Mill-Max Manufacturing Corp.In Stock: 1089399-43-112-10-003000 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 280580-2 is based on the following critical parameters that must align across equivalent components:

Core Compatibility Parameters:

• Connector type: Receptacle
• Contact type: Female socket
• Number of positions: 12
• Mating pitch: 0.100" (2.54mm)
• Mounting configuration: Through hole, right angle
• Termination method: Solder
• Mating contact finish: Gold
• Board-to-board style
• Single row configuration

Compliance Parameters:

• UL94 V-0 flammability rating
• ROHS3 compliance
• MSL 1 classification

The Mill-Max Manufacturing Corp. 399-43-112-10-003000 satisfies all core compatibility requirements and compliance standards, establishing it as a functional equivalent for the obsolete TE Connectivity part.

Parameter Comparison

Engineering Selection Recommendations

The Mill-Max Manufacturing Corp. 399-43-112-10-003000 is an active product that directly substitutes for the obsolete TE Connectivity 280580-2 based on the following engineering criteria:

Functional Equivalence: Both connectors share identical core specifications: 12-position receptacle configuration, 0.100" (2.54mm) pitch, through-hole right-angle mounting, solder termination, and gold-plated mating contacts for board-to-board applications.

Compliance Alignment: Both parts maintain UL94 V-0 flammability certification and ROHS3 compliance, ensuring regulatory requirements are satisfied in replacement applications. Both components carry MSL 1 classification and share identical ECCN and HTSUS codes.

Product Status Advantage: The Mill-Max part is classified as active, providing assured long-term availability and supply chain continuity compared to the obsolete TE Connectivity component.

Physical Considerations: Minor dimensional variations exist in insulation height (0.157" versus 0.100") and contact post length (0.138" versus 0.126"). These differences require PCB layout verification to ensure mechanical clearance and proper mating depth with corresponding connector plugs.

Material and Contact Differences: The Mill-Max substitute employs beryllium copper contacts with circular geometry and tin post finish, compared to phosphor bronze square contacts with gold post finish on the original part. The Mill-Max design provides enhanced contact finish thickness on mating surfaces (30.0µin versus 16.0µin), supporting improved contact durability.

Frequently Asked Questions (FAQ)

Q: Can the Mill-Max 399-43-112-10-003000 directly replace the TE Connectivity 280580-2 in existing designs?

A: The Mill-Max part satisfies all core electrical and mechanical compatibility requirements for board-to-board 12-position 0.100" pitch applications. However, PCB layout must be verified to accommodate dimensional differences in insulation height and contact post length before implementation.

Q: What are the key differences between these two connectors?

A: Primary differences include contact material composition (beryllium copper versus phosphor bronze), contact geometry (circular versus square), insulation material formulation (PCT/polyester versus polyester/glass-filled), and specific dimensional parameters. Both maintain equivalent electrical performance for standard applications through identical pitch, position count, and gold mating contact finish.

Q: Are both connectors RoHS compliant?

A: Yes, both the TE Connectivity 280580-2 and Mill-Max 399-43-112-10-003000 are ROHS3 compliant, meeting current environmental and hazardous substance restrictions.

Q: What is the packaging difference between these parts?

A: The TE Connectivity part does not specify packaging format in available documentation. The Mill-Max equivalent is supplied in tube packaging, which is standard for this connector category.

Q: Does the Mill-Max part provide operating temperature specifications?

A: Yes, the Mill-Max 399-43-112-10-003000 is rated for -55°C to 125°C operation. The original TE Connectivity part does not specify operating temperature limits in available documentation.

Q: Is current rating information available for both connectors?

A: The Mill-Max part is rated for 3A per contact. The original TE Connectivity part does not specify current rating in available documentation.

Q: What fastening mechanism does each connector use?

A: The TE Connectivity 280580-2 employs friction lock fastening. The Mill-Max 399-43-112-10-003000 uses push-pull fastening, which may affect mating connector compatibility and should be verified during design integration.
