Phoenix Contact 2283663 37-Position Interface Module Terminal Block - Equivalent & Substitute Parts

Part Overview

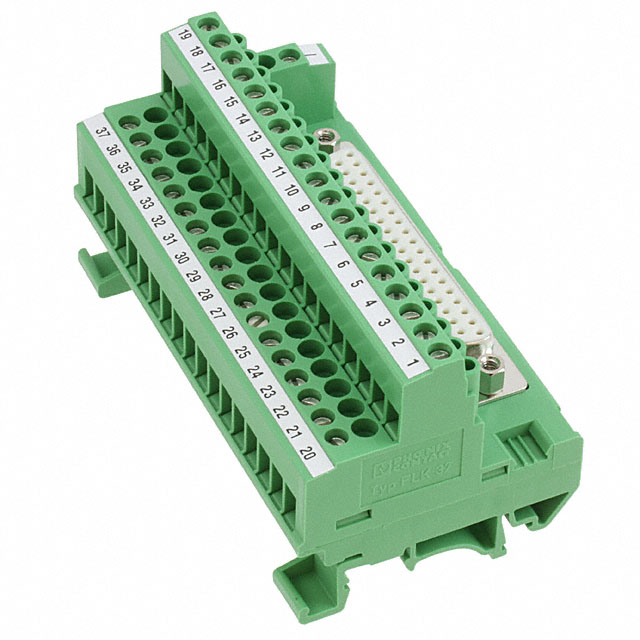

The Phoenix Contact 2283663 is a 37-position interface module terminal block designed for screw connection to D-Sub female connectors. This component serves as a process-side interface for industrial control applications requiring reliable signal distribution across multiple positions with 12-24 AWG wire gauge compatibility.

The 2283663 is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain system compatibility and ensure continued availability for replacement, repair, and new installations where this legacy component is specified.

Key Parameters

Parameter	Value
Manufacturer Part Number	2283663
Manufacturer	Phoenix Contact
Category	Terminal Blocks
Description	37 Position Interface Module Terminal Blocks - Screw Connection To D-Sub, Female 12-24 AWG
Positions / Poles	37
Process Side Connection	Terminal Blocks - Screw Connection
Control Side Connection	D-Sub, Female
Control Side Cable Retainer	Jackscrew Socket
Wire Gauge	12-24 AWG
Voltage - Rated	125VAC
Current Rating (Per Contact)	2.5 A
Operating Temperature	-20°C ~ 50°C
Product Status	Obsolete
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 2283663 is determined by the following critical parameters:

Primary Substitution Criteria:

Positions / Poles: 37 (exact match required)
Process Side Connection: Terminal Blocks - Screw Connection (exact match required)
Control Side Connection: D-Sub, Female (exact match required)
Wire Gauge: 12-24 AWG (exact match required)
Control Side Cable Retainer: Jackscrew Socket (exact match required)

Secondary Compatibility Parameters:

Voltage Rating: 125V or higher
Current Rating: 2 A or higher per contact
Operating Temperature Range: Must encompass -20°C ~ 50°C or equivalent

The substitute part Phoenix Contact 2315191 meets all primary substitution criteria. Both parts share identical functional architecture: 37-position screw-terminal interface modules with D-Sub female connectors and jackscrew retention. Both support 12-24 AWG wire gauges and operate within the same temperature range.

Parameter Comparison

Parameter	2283663 (Main Part)	2315191 (Substitute)	Compatibility Status
Manufacturer	Phoenix Contact	Phoenix Contact	Match
Category	Terminal Blocks	Terminal Blocks	Match
Positions / Poles	37	37	Match
Process Side Connection	Terminal Blocks - Screw Connection	Terminal Blocks - Screw Connection	Match
Control Side Connection	D-Sub, Female	D-Sub, Female	Match
Control Side Cable Retainer	Jackscrew Socket	Jackscrew Socket	Match
Wire Gauge	12-24 AWG	12-24 AWG	Match
Voltage - Rated	125VAC	125V	Compatible
Current Rating (Per Contact)	2.5 A	2 A	Substitute rated lower; verify application requirements
Operating Temperature	-20°C ~ 50°C	-20°C ~ 50°C	Match
Product Status	Obsolete	Active	Substitute is current production
RoHS Status	RoHS Compliant	ROHS3 Compliant	Both compliant; substitute meets current standard

Engineering Selection Recommendations

Primary Substitute: Phoenix Contact 2315191

The 2315191 is the direct functional equivalent for the obsolete 2283663. Both components share identical interface specifications: 37-position screw terminal blocks with D-Sub female connectors, jackscrew retention, and 12-24 AWG wire gauge support.

Key Considerations:

The 2315191 is classified as active production status, ensuring long-term availability and supply chain continuity. It meets ROHS3 compliance, representing current regulatory standards. The substitute operates within the identical temperature range (-20°C ~ 50°C).

Current Rating Differential:

The 2283663 is rated at 2.5 A per contact, while the 2315191 is rated at 2 A per contact. Applications requiring current levels between 2 A and 2.5 A per contact must evaluate whether the lower rating of the substitute is acceptable for the specific circuit requirements. Applications operating at or below 2 A per contact experience no functional limitation.

Compliance Status:

Both parts are RoHS compliant. The 2315191 carries REACH Affected status, indicating it is subject to REACH regulatory requirements, whereas the 2283663 is REACH Unaffected. This distinction is relevant for supply chain documentation in regulated markets.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 2315191 directly replace the 2283663 in existing installations?

A: Yes, for applications operating at 2 A or below per contact. Both components feature identical 37-position screw terminal interfaces, D-Sub female connectors, jackscrew retention, and 12-24 AWG wire gauge compatibility. The primary difference is the current rating: 2315191 is rated at 2 A per contact versus 2.5 A for the 2283663. Verify your application's per-contact current requirements before substitution.

Q: What is the physical size difference between these parts?

A: The 2283663 measures 3.780" × 2.031" (96.01mm × 51.59mm), while the 2315191 measures 2.862" × 2.717" (72.69mm × 69.01mm). The substitute is shorter in length but wider. Verify that the 2315191's footprint is compatible with your panel or enclosure layout before installation.

Q: Are there packaging differences between the main part and substitute?

A: Yes. The 2283663 is supplied without specified packaging designation, while the 2315191 is packaged in boxes. Confirm packaging requirements for your procurement and logistics processes.

Q: Which part should I specify for new designs?

A: Specify the Phoenix Contact 2315191 for new designs. It is active production status, meets current RoHS3 compliance standards, and provides assured long-term availability. The 2283663 is obsolete and should not be specified for new applications.

Q: Are both parts suitable for the same voltage applications?

A: Yes. Both are rated for 125V operation and are suitable for identical voltage applications within industrial control environments.
