TE Connectivity AMP Connectors 207120-2 Equivalent & Substitute Parts

Part Overview

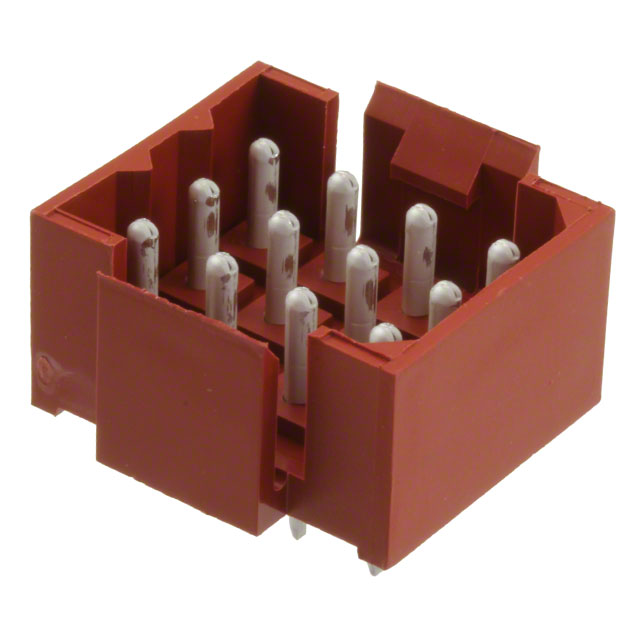

The TE Connectivity AMP Connectors 207120-2 is a rectangular connector header designed for through-hole mounting applications. This connector features a 12-position configuration with 0.197" (5.00mm) pitch spacing across 3 rows, utilizing shrouded 4-wall construction with solder termination and latch lock fastening. The part operates across a temperature range of -55°C to 130°C and supports a current rating of 7.5A at 600V, making it suitable for automotive, general purpose, and industrial applications.

The 207120-2 carries an obsolete product status. Identifying equivalent and substitute parts is necessary to ensure design continuity, maintain supply chain reliability, and support ongoing production and maintenance requirements for systems utilizing this connector configuration.

Substiute Parts

207120-2

TE Connectivity AMP ConnectorsIn Stock: 2459207120-2 Datasheet

Current PartRFQ

1-207120-0

TE Connectivity AMP ConnectorsIn Stock: 9431-207120-0 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 207120-2 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications in the following categories:

Electrical Parameters: Contact type (Male Pin), current rating (7.5A), voltage rating (600V), and operating temperature range (-55°C to 130°C).

Mechanical Parameters: Number of positions (12), number of rows (3), pitch spacing (0.197" / 5.00mm), row spacing (0.197" / 5.00mm), shrouding configuration (Shrouded - 4 Wall), mounting type (Through Hole), termination method (Solder), and fastening type (Latch Lock).

Material and Compliance Parameters: Contact material (Brass), contact finish (Tin), insulation material (Polyamide/Nylon), material flammability rating (UL94 V-0), and series designation (Metrimate).

The substitute part 1-207120-0 meets all these criteria and is therefore a direct functional equivalent to the 207120-2.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 1-207120-0 is a direct functional equivalent to the obsolete 207120-2. All critical electrical and mechanical parameters are identical, ensuring complete interchangeability in circuit design and board layout applications.

The primary distinction between these parts is product status and compliance certification. The 207120-2 is classified as obsolete, while 1-207120-0 maintains active product status with ROHS3 compliance certification. The substitute part is packaged in trays, whereas the main part packaging specification is not provided.

For new designs and ongoing production requiring this connector configuration, 1-207120-0 is the appropriate selection. This part maintains full electrical and mechanical compatibility while offering the advantage of active product status and current regulatory compliance. The identical specifications across all functional parameters ensure that existing designs utilizing 207120-2 can transition to 1-207120-0 without modification to PCB layouts, mating connectors, or electrical performance characteristics.

Frequently Asked Questions (FAQ)

Q: Can 1-207120-0 be used as a direct replacement for 207120-2 in existing designs?

A: Yes. The 1-207120-0 is a direct functional equivalent with identical electrical and mechanical specifications. All parameters including connector type, position count, pitch spacing, current rating, voltage rating, operating temperature range, and material specifications are identical. No design modifications are required.

Q: What is the difference between 207120-2 and 1-207120-0?

A: The primary differences are product status and compliance certification. The 207120-2 is obsolete, while 1-207120-0 is active. Additionally, 1-207120-0 carries ROHS3 compliance certification, and the two parts differ in packaging configuration (tray for 1-207120-0 versus unspecified for 207120-2).

Q: Are the electrical ratings identical between these parts?

A: Yes. Both parts have identical current ratings of 7.5A, voltage ratings of 600V, and operating temperature ranges of -55°C to 130°C. Contact material, finish, and all electrical performance characteristics are identical.

Q: Are the mechanical dimensions and configurations identical?

A: Yes. Both parts have identical mechanical specifications including 12 positions across 3 rows, 0.197" (5.00mm) pitch spacing, shrouded 4-wall construction, through-hole mounting, solder termination, and latch lock fastening. Contact length, insulation height, and all dimensional parameters are identical.

Q: Does the packaging difference affect compatibility?

A: Packaging differences do not affect electrical or mechanical compatibility. The packaging difference (tray for 1-207120-0) relates only to how the parts are supplied and stored. Once installed on a PCB, the connectors function identically.

Q: Is 1-207120-0 suitable for automotive applications?

A: Yes. Both parts are rated for automotive, general purpose, and industrial applications. The 1-207120-0 maintains the same application suitability as the 207120-2.

Q: What does ROHS3 compliance mean for 1-207120-0?

A: ROHS3 compliance indicates that 1-207120-0 meets current Restriction of Hazardous Substances regulations. This certification is relevant for applications subject to environmental and regulatory compliance requirements. The 207120-2 is listed as "Not applicable" for RoHS status.

Q: Can these parts be mixed in the same assembly?

A: Yes. Since all electrical and mechanical specifications are identical, 207120-2 and 1-207120-0 can be used interchangeably within the same assembly or design without compatibility issues.
