TE Connectivity 1-925369-0 Rectangular Connector Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity 1-925369-0 is a 10-position rectangular connector housing receptacle designed for 0.100" (2.54mm) pitch applications. This component functions as a female socket housing for crimp-terminated contacts in free-hanging in-line configurations. The part is manufactured in green polyamide (PA66) material and operates across the temperature range of -65°C to 105°C. As an active product with ROHS3 compliance and unlimited moisture sensitivity rating, this connector housing serves as a standard interface component in electronic assemblies. Equivalent and substitute parts are identified based on matching electrical and mechanical parameters that ensure functional interchangeability within specified operating conditions.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	10
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Operating Temperature Range	-65°C ~ 105°C
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 1-925369-0 is determined by strict alignment with the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (10), pitch (0.100"/2.54mm), number of rows (1), mounting type (free hanging in-line), contact termination method (crimp), and operating temperature range (-65°C to 105°C minimum). All identified substitute parts meet these core electrical and mechanical requirements, ensuring functional compatibility in applications designed for the main part number.

Substitute parts are grouped into two categories based on material composition and color variation:

Category 1: TE Connectivity AMPMODU Series (Green and Black Variants) Parts 1-925366-0, 1-926657-0, 103648-9, and 2-87175-2 are TE Connectivity products within the AMPMODU family. These parts maintain identical position count, pitch, mounting configuration, and crimp termination. Operating temperature ranges are consistent at -65°C to 105°C. Material variations include polyamide (PA66), polybutylene terephthalate (PBT) glass-filled, thermoplastic, and polyester glass-filled compositions. Color options include green and black housings.

Category 2: Cross-Manufacturer Alternatives Parts 0050579210 (Molex SL 70066 series) and 65039-027LF and 65240-010LF (Amphenol ICC Mini-PV™ and DUBOX™ series) provide equivalent functionality with identical position count, pitch, and crimp termination. Operating temperature ranges are -40°C to 105°C (Molex and Amphenol ICC 65039-027LF) or -65°C to 125°C (Amphenol ICC 65240-010LF). Material compositions include polyester glass-filled and polyphenylene modified thermoplastics.

Parameter Comparison

Part Number	Manufacturer	Series	Positions	Pitch	Connector Type	Contact Type	Mounting Type	Termination	Color	Operating Temp (°C)	RoHS Status	MSL
1-925369-0	TE Connectivity AMP	AMPMODU Mod IV	10	0.100" (2.54mm)	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	Green	-65 ~ 105	ROHS3	1
1-925366-0	TE Connectivity AMP	AMPMODU Mod IV	10	0.100" (2.54mm)	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	Green	-65 ~ 105	RoHS	1
1-926657-0	TE Connectivity AMP	AMPMODU	10	0.100" (2.54mm)	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	Black	-65 ~ 105	ROHS3	1
103648-9	TE Connectivity AMP	AMPMODU MTE	10	0.100" (2.54mm)	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	Black	-65 ~ 105	ROHS3	1
2-87175-2	TE Connectivity AMP	AMPMODU	10	0.100" (2.54mm)	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	Black	-65 ~ 105	ROHS3	1
0050579210	Molex	SL 70066	10	0.100" (2.54mm)	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	Black	-40 ~ 105	ROHS3	1
65039-027LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	10	0.100" (2.54mm)	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	Black	-40 ~ 105	RoHS	1
65240-010LF	Amphenol ICC (FCI)	DUBOX™, MezzSelect™, Basics+	10	0.100" (2.54mm)	Receptacle	Female Socket	Free Hanging (In-Line)	Crimp	Blue	-65 ~ 125	RoHS	1

Engineering Selection Recommendations

All identified substitute parts maintain active product status and comply with RoHS regulations, ensuring suitability for current manufacturing and procurement workflows. The primary selection criterion is operating temperature range alignment with the application environment.

For applications requiring the full -65°C to 105°C operating range of the main part: Parts 1-925366-0, 1-926657-0, 103648-9, and 2-87175-2 (all TE Connectivity AMPMODU series) provide direct functional equivalence. These parts carry ROHS3 compliance and maintain identical electrical and mechanical specifications. Selection among these options is determined by color requirement (green for 1-925369-0 and 1-925366-0; black for 1-926657-0, 103648-9, and 2-87175-2) and material composition preferences.

For applications with reduced low-temperature requirements (-40°C minimum): Parts 0050579210 (Molex SL 70066) and 65039-027LF (Amphenol ICC Mini-PV™) are functionally equivalent within the -40°C to 105°C range. These cross-manufacturer alternatives provide ROHS3 or RoHS compliance and maintain identical position count, pitch, and crimp termination specifications.

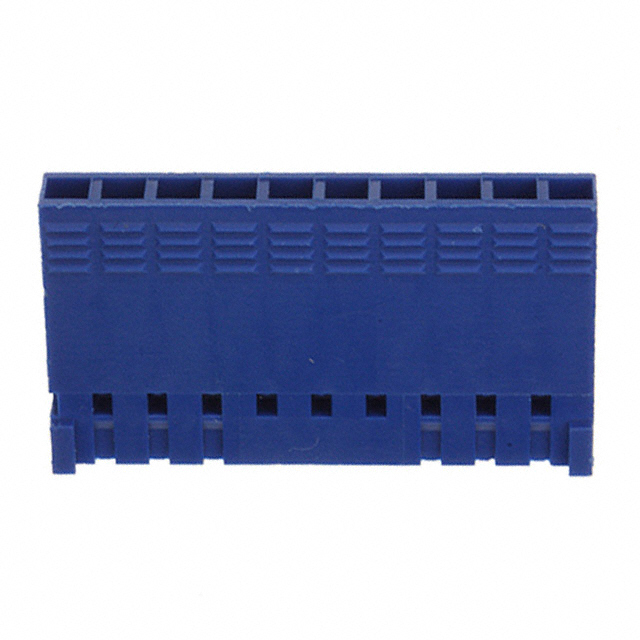

For applications requiring extended high-temperature operation (up to 125°C): Part 65240-010LF (Amphenol ICC DUBOX™) extends the upper operating temperature to 125°C while maintaining the -65°C lower limit. This part carries RoHS compliance and provides equivalent electrical and mechanical functionality with blue housing color.

All substitute parts carry MSL rating of 1 (unlimited), matching the moisture sensitivity specification of the main part. REACH compliance status varies between vendor-undefined and affected designations; applications subject to REACH regulations should confirm specific material composition requirements with component suppliers.

Frequently Asked Questions (FAQ)

Q: Can part 1-925366-0 be used as a direct replacement for 1-925369-0?

A: Yes. Both parts are TE Connectivity AMPMODU series housings with identical 10-position, 2.54mm pitch, female socket, crimp-terminated specifications. Both operate across -65°C to 105°C and carry MSL rating of 1. The primary difference is RoHS compliance designation (ROHS3 for 1-925369-0 versus RoHS for 1-925366-0). Material composition differs slightly (PA66 nylon 6/6 versus PA nylon), but both are polyamide-based. Color is green for both parts.

Q: What is the difference between the TE Connectivity black housing options (1-926657-0, 103648-9, 2-87175-2)?

A: All three parts are TE Connectivity AMPMODU series black housings with identical 10-position, 2.54mm pitch specifications and -65°C to 105°C operating range. Differences exist in material composition (polybutylene terephthalate glass-filled for 1-926657-0, thermoplastic for 103648-9, polyester glass-filled for 2-87175-2) and series designation (AMPMODU for 1-926657-0 and 2-87175-2, AMPMODU MTE for 103648-9). All carry ROHS3 compliance and MSL rating of 1.

Q: Can I use the Molex 0050579210 or Amphenol ICC parts in applications requiring -65°C operation?

A: Part 0050579210 (Molex) and 65039-027LF (Amphenol ICC) operate only to -40°C minimum, not -65°C. These parts are suitable only for applications with -40°C minimum temperature requirements. Part 65240-010LF (Amphenol ICC) maintains the -65°C lower limit and extends to 125°C maximum, making it suitable for wider temperature range applications.

Q: Are all substitute parts available in the same color options as the main part?

A: No. The main part 1-925369-0 is green. Equivalent green options are limited to 1-925366-0 (TE Connectivity). Black housing alternatives include 1-926657-0, 103648-9, 2-87175-2 (TE Connectivity), 0050579210 (Molex), and 65039-027LF (Amphenol ICC). Blue housing is available only in 65240-010LF (Amphenol ICC). Color selection depends on application requirements and assembly documentation specifications.

Q: Do all substitute parts use crimp termination?

A: Yes. All identified substitute parts use crimp contact termination, matching the main part specification. This ensures compatibility with existing crimp tooling and contact inventory.

Q: What is the significance of the MSL rating of 1?

A: MSL rating of 1 indicates unlimited moisture sensitivity, meaning the component does not require special moisture control during storage, handling, or assembly. All identified substitute parts carry this same MSL rating of 1, ensuring equivalent moisture handling requirements.

Q: Are contacts included with these connector housings?

A: No. All parts, including the main part 1-925369-0 and all substitutes, are housings only. Contacts must be procured separately and are not included with the housing component.

Q: Which substitute part offers the best compliance coverage?

A: Parts carrying ROHS3 compliance (1-925369-0, 1-926657-0, 103648-9, 2-87175-2, and 0050579210) provide the most current regulatory compliance designation. Parts with RoHS designation (1-925366-0, 65039-027LF, 65240-010LF) also meet regulatory requirements but carry the earlier compliance standard. REACH status varies; applications subject to REACH regulations should confirm material composition with suppliers.
