171-015-212-021 D-Sub Receptacle 15 Position Equivalent & Substitute Parts

Part Overview

The 171-015-212-021 is a 15 Position D-Sub Receptacle connector manufactured by NorComp Inc., featuring female sockets with panel mount, through-hole solder termination. This connector is designed for signal applications requiring a 2-row, DA/A shell size configuration. The part is currently in active production with 695 units in stock.

Equivalent and substitute parts are identified based on matching core electrical and mechanical parameters: 15-position count, 2-row configuration, DA/A shell size, receptacle female socket type, panel or through-hole mounting, solder termination, and signal contact classification. Alternative sources provide design flexibility, supply chain redundancy, and procurement options across multiple manufacturers.

Key Parameters

Parameter	171-015-212-021
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layout	2 (DA, A)
Contact Type	Signal
Termination	Solder
Shell Material, Finish	Steel, Nickel Plated
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Color	Black

Substitute Part Grouping Explanation

Substitute parts for the 171-015-212-021 are qualified based on the following mandatory parameters:

Connector Configuration: 15 positions, 2 rows, DA/A shell size
Connector Type: Receptacle with female sockets
Termination Method: Solder (including solder paste variants)
Shell Material: Steel with plating (nickel or tin)
Contact Finish: Gold plating
Flammability Compliance: UL94 V-0
RoHS Compliance: ROHS3 or RoHS Compliant

The following parts meet these criteria and are classified as direct equivalents or functional substitutes:

171-015-213R021 (NorComp Inc.) – Direct manufacturer variant, panel mount configuration
628-015-320-017 (Mercury United Electronics, Inc.) – Cross-manufacturer equivalent, bulk packaging
D15S24A6RX09LF (Amphenol ICC/FCI) – Delta D series, through-hole vertical mount

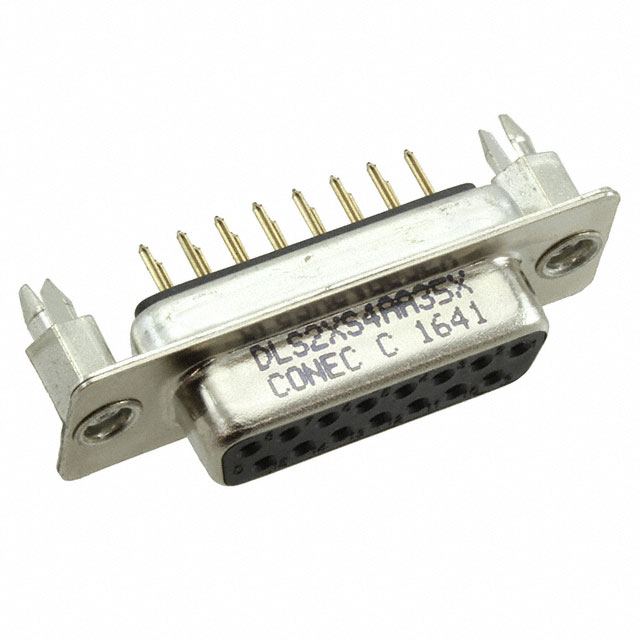

DLS2XS4AA35X (Amphenol CONEC) – Through-hole vertical mount with board lock feature

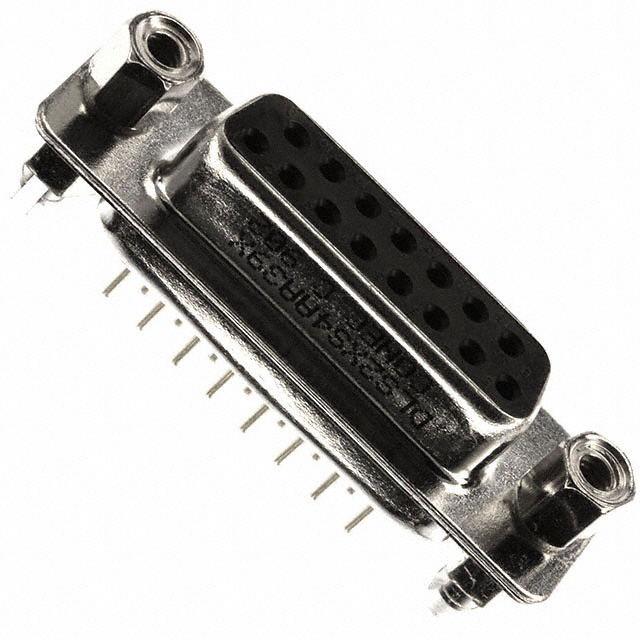

DLS2XS4AA39X (Amphenol CONEC) – Through-hole vertical mount with female screwlock
SDAB-15S(55) (Hirose Electric Co Ltd) – SD series, panel mount configuration

Parameter Comparison

Parameter	171-015-212-021	171-015-213R021	628-015-320-017	D15S24A6RX09LF	DLS2XS4AA35X	DLS2XS4AA39X	SDAB-15S(55)
Manufacturer	NorComp Inc.	NorComp Inc.	Mercury United Electronics, Inc.	Amphenol ICC (FCI)	Amphenol CONEC	Amphenol CONEC	Hirose Electric Co Ltd
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	15	15	15	15	15	15	15
Number of Rows	2	2	2	2	2	2	2
Shell Size, Connector Layout	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)	2 (DA, A)
Mounting Type	Panel Mount, Through Hole	Panel Mount, Through Hole	Panel Mount, Through Hole	Through Hole	Through Hole	Through Hole	Panel Mount, Through Hole
Termination	Solder	Solder	Solder	Solder Paste	Solder	Solder	Solder
Shell Material, Finish	Steel, Nickel Plated	Steel, Nickel Plated	Steel, Nickel Plated	Steel, Nickel Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Nickel Plated
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Current Rating (Amps)	5A	5A	3A per Contact	5A per Contact	3A	3A	3A
Color	Black	Black	Black	Black	Black	Black	Black
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant
Product Status	Active	Active	Active	Active	Active	Active	Active

Engineering Selection Recommendations

All listed substitute parts maintain active product status and comply with RoHS and UL94 V-0 flammability requirements, ensuring regulatory alignment with the original 171-015-212-021 specification.

Panel Mount Configuration: Parts 171-015-213R021, 628-015-320-017, and SDAB-15S(55) provide panel mount options matching the original mounting style. The 171-015-213R021 is a direct NorComp variant with identical electrical ratings (5A current).

Through-Hole Vertical Mount Configuration: Parts D15S24A6RX09LF, DLS2XS4AA35X, and DLS2XS4AA39X offer vertical through-hole mounting with reduced current ratings (3A to 5A per contact). These variants include additional features such as board lock or female screwlock mechanisms.

Shell Finish Variation: DLS2XS4AA35X and DLS2XS4AA39X feature tin-plated steel shells instead of nickel plating, with equivalent gold contact finish and UL94 V-0 compliance.

Current Rating Consideration: The original part supports 5A current. Substitutes 628-015-320-017, DLS2XS4AA35X, DLS2XS4AA39X, and SDAB-15S(55) are rated at 3A per contact, suitable for lower-current signal applications.

Frequently Asked Questions (FAQ)

Q: Can 171-015-213R021 be used as a direct replacement for 171-015-212-021?

A: Yes. Both parts are manufactured by NorComp Inc., share the same 15-position, 2-row DA/A configuration, and support 5A current with solder termination. The primary difference is packaging (tray vs. standard). Electrical and mechanical compatibility is confirmed.

Q: What is the difference between panel mount and through-hole vertical mount variants?

A: Panel mount connectors (171-015-212-021, 171-015-213R021, 628-015-320-017, SDAB-15S(55)) are designed for mounting on panel surfaces with flange features. Through-hole vertical mount variants (D15S24A6RX09LF, DLS2XS4AA35X, DLS2XS4AA39X) are oriented vertically on PCBs. Mounting type selection depends on application layout requirements.

Q: Are tin-plated and nickel-plated shells interchangeable?

A: Both finishes provide corrosion resistance and meet UL94 V-0 flammability requirements. Tin plating (DLS2XS4AA35X, DLS2XS4AA39X) and nickel plating (171-015-212-021, 171-015-213R021, 628-015-320-017, SDAB-15S(55)) are functionally equivalent for signal applications. Selection may depend on environmental exposure and cost considerations.

Q: What is the significance of the 3A vs. 5A current rating difference?

A: The original 171-015-212-021 supports 5A per contact. Substitutes rated at 3A per contact are suitable for applications with lower current requirements. For applications requiring 5A per contact, use 171-015-213R021 or D15S24A6RX09LF.

Q: Can solder paste termination (D15S24A6RX09LF) be used in place of standard solder termination?

A: Solder paste termination is compatible with automated assembly processes. D15S24A6RX09LF maintains the same 15-position, 2-row configuration and gold contact finish. Termination method selection depends on assembly process compatibility.

Q: What additional features do DLS2XS4AA35X and DLS2XS4AA39X provide?

A: DLS2XS4AA35X includes board lock feature. DLS2XS4AA39X includes both board lock and female screwlock (4-40) on the mating side. These features provide mechanical retention and secure mating. Both maintain full electrical and mechanical compatibility with the 15-position, 2-row DA/A specification.

Q: Are all substitute parts ROHS3 compliant?

A: Six of seven substitutes are ROHS3 compliant (171-015-213R021, 628-015-320-017, DLS2XS4AA35X, DLS2XS4AA39X). D15S24A6RX09LF and SDAB-15S(55) are RoHS Compliant. All meet regulatory requirements for lead-free applications.
